Koyo Koyo6207-2RDC3 deep groove radial ball bearing (1.376 x 2.840 x 0.67 in)

Product Description

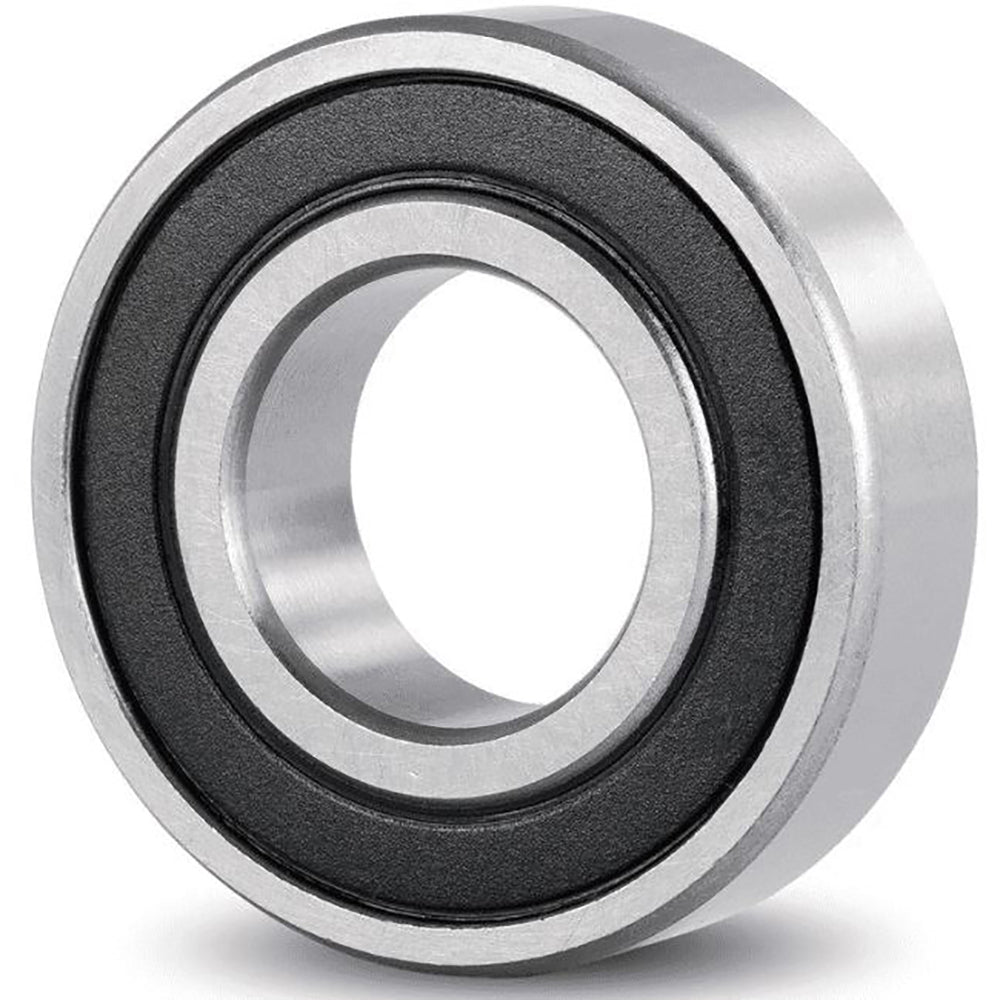

Koyo KOYO6207-2RDC3 is a deep groove radial ball bearing featuring double-sealed (2R) construction and C3 internal clearance. Part of the 6200 series and made of steel, it includes a snap ring for axial location. Key dimensions are 1.376 in inner diameter, 2.840 in outer diameter, and 0.67 in (17 mm) width. Rated dynamic load is 32.1 kN with a rated speed of 6200 RPM, suitable for radial load applications such as motors, shafts, and pulleys.

• Double-sealed (2R) deep groove bearing with C3 internal clearance
• Dimensions: inner diameter 1.376 in; outer diameter 2.840 in; width 0.67 in (17 mm)
• Dynamic load rating 32.1 kN; rated speed 6200 RPM; steel construction with snap ring

Product Highlights

6200-series double-sealed deep groove bearing, C3 clearance, steel construction, snap ring for axial location.

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6207-2RDC3

Technical Specifications

• Brand: Koyo
• Manufacturer Part Number: KOYO6207-2RDC3
• Bearing Type: Deep groove ball
• Series: 6200 series
• Closure Type: Double sealed (2R)
• Internal Clearance: C3
• Inner Diameter: 1.376 in
• Outer Diameter: 2.840 in
• Width: 0.67 in (17 mm)
• Material: Steel
• Dynamic Load Rating: 32.1 kN
• Static Load Rating: 15.4 kN
• Rated Speed: 6200 RPM
• Special Features: Snap ring
• UPC Code: 605790062278
• RS Stock Number: 72061404
