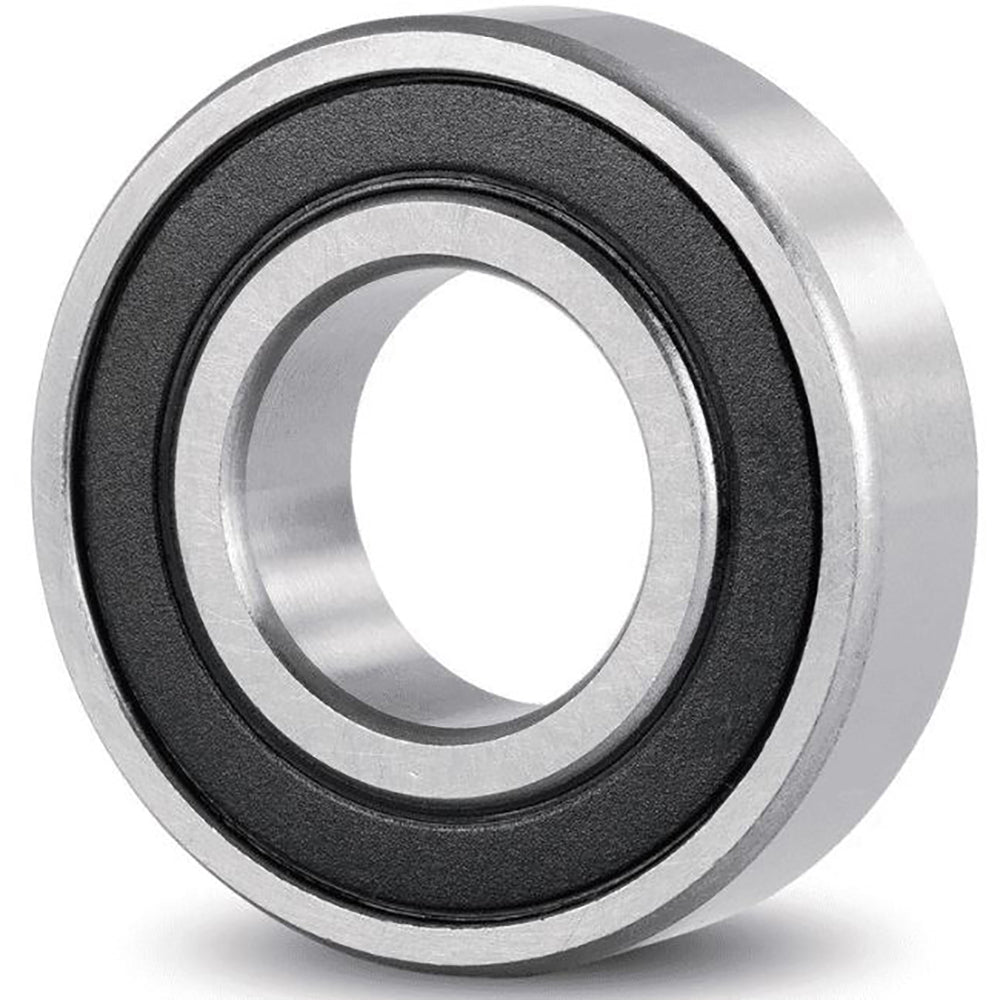

Koyo Koyo6205-2RDC3 deep groove ball bearing (25 mm bore x 52 mm od x 15 mm width, C3 clearance) 62052RDC3

Product Description

Koyo KOYO6205-2RDC3 is a deep groove ball bearing with double rubber seals and C3 internal clearance. The bearing has a 25 mm bore, 52 mm outer diameter, and 15 mm width, is steel constructed, and includes a snap ring feature. It is part of the 6200 series and is specified with a dynamic load rating of 17.5 kN and a reference speed of 6200 RPM, suitable for general rotational support in machinery.

• Dimensions: 25 mm inner diameter, 52 mm outer diameter, 15 mm width; C3 internal clearance
• Closure: double sealed with two rubber seals; material: steel; series: 6200 with snap ring
• Ratings: dynamic load rating 17.5 kN; static load rating 7.85 kN; reference speed 6200 RPM

Product Highlights

Sealed deep groove ball bearing, 6200 series, 25 x 52 x 15 mm, C3 clearance, 17.5 kN dynamic load rating

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6205-2RDC3

Technical Specifications

• Brand: KOYO
• MPN: KOYO6205-2RDC3
• Manufacturer Part Number: 62052RDC3
• Bearing Type: Deep groove ball
• Series: 6200 series
• Material: Steel
• Closure Type: Double sealed (2 rubber seals)
• Internal Clearance: C3
• Inner Diameter (Bore): 25 mm (0.984 in)
• Outer Diameter (OD): 52 mm (2.047 in)
• Width: 15 mm (0.591 in)
• Dynamic Load Rating: 17.5 kN
• Static Load Rating: 7.85 kN
• Reference Speed (RPM): 6200 RPM
• Special Features: Snap ring
• UNSPSC Code: 27110000
• UPC Code: 605790059674
• Unit of Measure: EA
