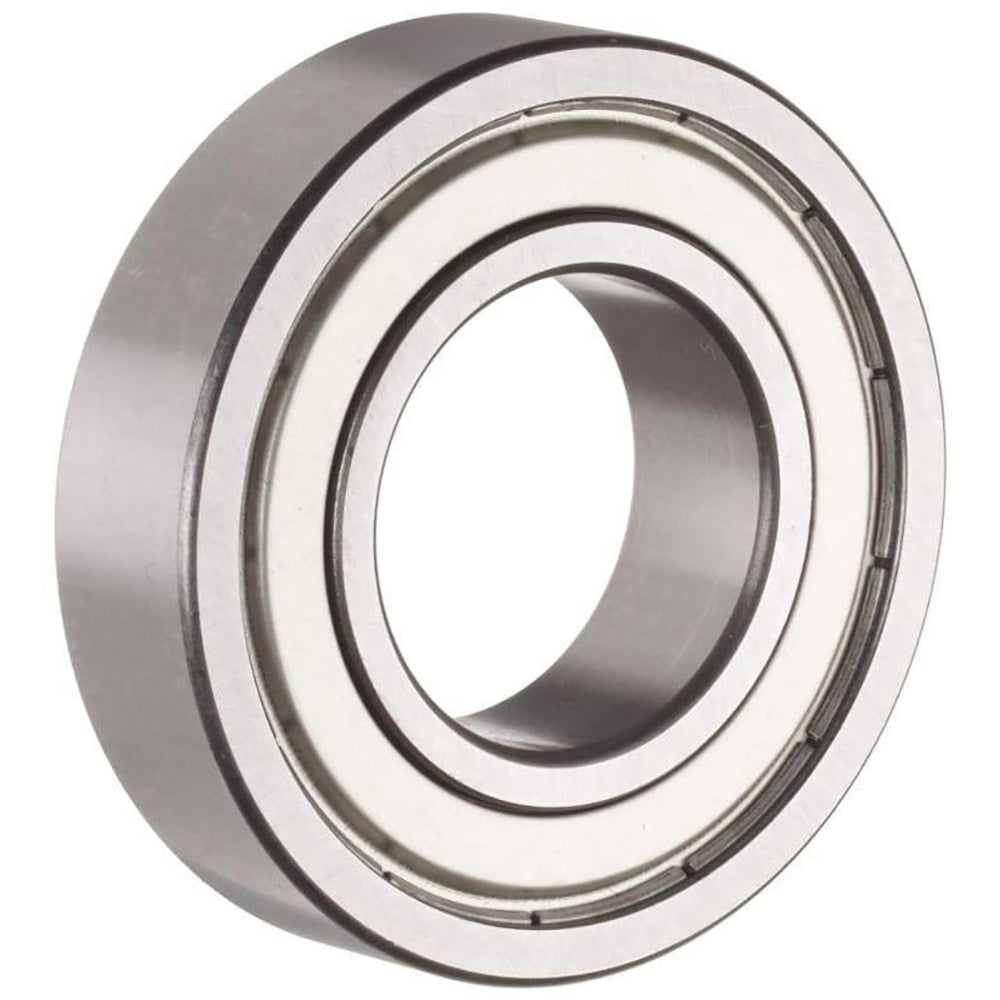

Koyo Koyo6203-ZZC3 Deep groove ball bearing (12 mm width, 0.670 in ID x 1.580 in OD) Koyo6203-ZZC3

Product Description

KOYO KOYO6203-ZZC3 is a deep groove radial ball bearing with double metal shields (ZZ) and C3 internal clearance. The steel 6200 series bearing measures 0.670 in inner diameter, 1.580 in outer diameter, and 0.472 in (12 mm) width, with a dynamic load rating of 12 kN, static load rating of 4.8 kN, and a maximum speed of 6200 RPM. It is intended for rotary applications requiring extra radial clearance.

• Double metal shields (ZZ) for contamination protection
• C3 internal clearance for increased radial play
• Dynamic load rating 12 kN; static load rating 4.8 kN; max speed 6200 RPM

Product Highlights

Deep groove steel bearing, double-shielded with C3 clearance for rotary applications.

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6203-ZZC3

Technical Specifications

• Manufacturer Part Number: KOYO6203-ZZC3
• Brand: KOYO
• Bearing Type: Deep groove ball
• Series: 6200 Series
• Closure Type: Double shielded (ZZ)
• Internal Clearance: C3
• Material: Steel
• Inner Diameter: 0.670 in
• Outer Diameter: 1.580 in
• Width: 0.472 in (12 mm)
• Dynamic Load Rating: 12 kN
• Static Load Rating: 4.8 kN
• Maximum Speed: 6200 RPM
• UPC Code: 605790058042
