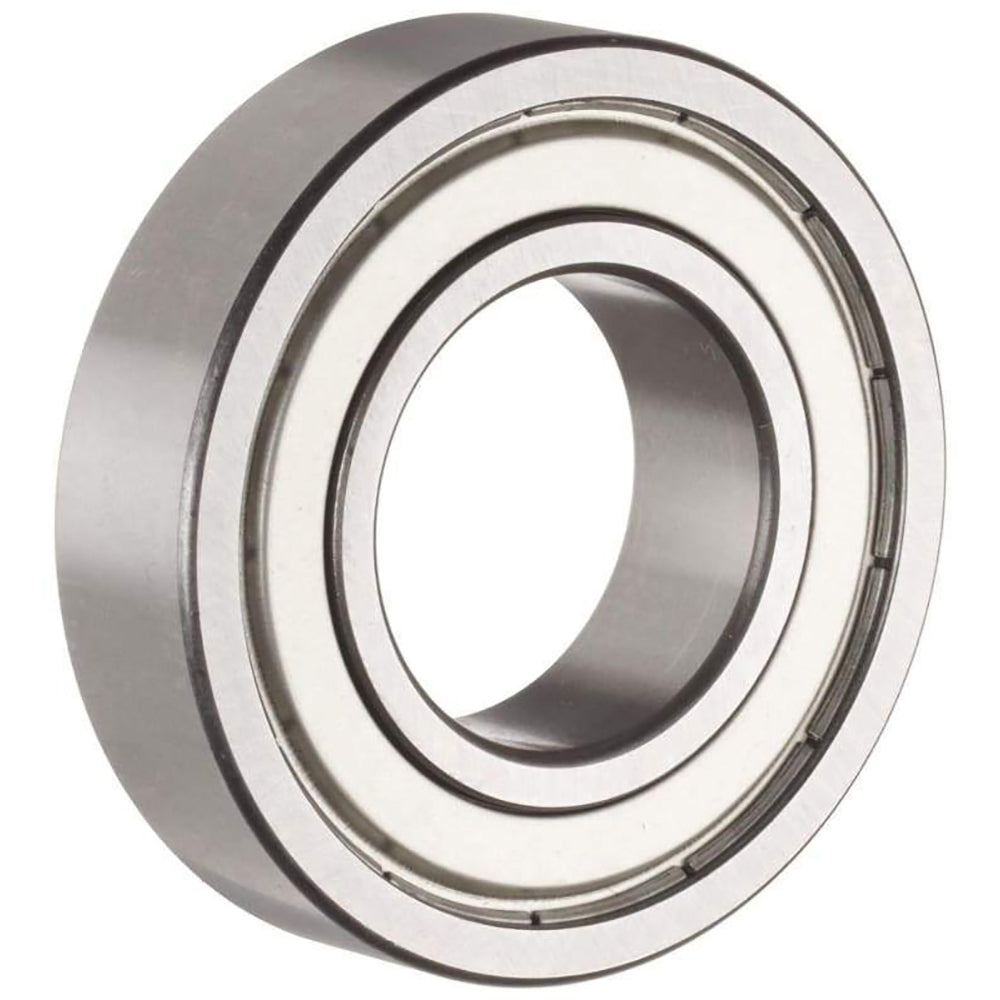

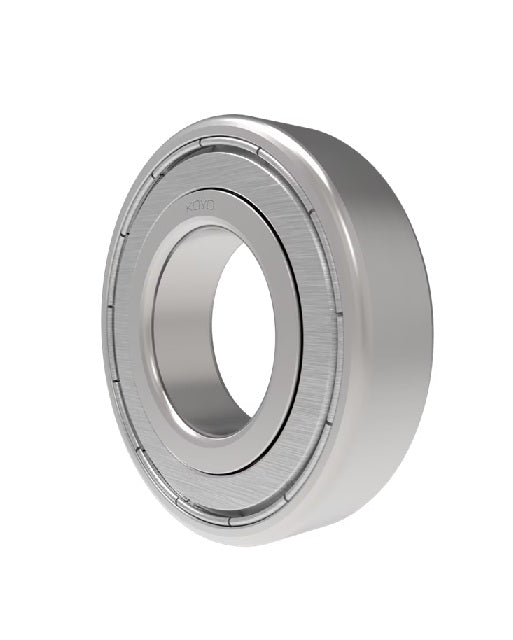

Koyo Koyo6201-ZZC3 Deep Groove Ball Bearing (12 mm x 32 mm x 10 mm)

Product Description

KOYO KOYO6201-ZZC3 is a deep groove ball bearing with double metal shields (ZZ) and C3 internal clearance. It has a 12 mm bore, 32 mm outer diameter and 10 mm width, with a basic dynamic load rating of 8.50 kN and a basic static load rating of 3.05 kN. The bearing supports grease-lubricated limiting speeds up to 22000 min-1, weighs 37 g, and features a riveted steel cage for radial rotary applications.

• Double-sided metal shields (ZZ) to protect against contamination and retain lubrication
• C3 internal clearance for additional internal clearance under thermal expansion or higher-speed conditions
• 12 mm bore x 32 mm outer diameter x 10 mm width; basic dynamic load rating 8.50 kN; limiting speed (grease) 22000 min-1

Product Highlights

Single-row deep groove radial bearing, double shielded (ZZ), C3 clearance, riveted steel cage, 12 mm x 32 mm x 10 mm.

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6201-ZZC3

Technical Specifications

• Manufacturer: KOYO
• Manufacturer Part Number: KOYO6201-ZZC3
• Bearing Type: Deep groove ball bearing
• Series: 6200 series
• Row Type: Single row
• Material: Steel
• Cage Material: Riveted steel
• Closure Type: Double shielded (ZZ)
• Internal Clearance: C3
• Inner Diameter: 12 mm
• Outer Diameter: 32 mm
• Width: 10 mm
• Weight: 37 g
• Basic Dynamic Load Rating: 8.50 kN
• Basic Static Load Rating: 3.05 kN
• Fatigue Load Limit: 0.240 kN
• Limiting Speed (Grease): 22000 min-1
• Minimum Fillet Radius r(min): 0.6 mm
• Limiting Diameter Da(max): 28 mm
• Maximum Chamfer ra(max): 0.6 mm
