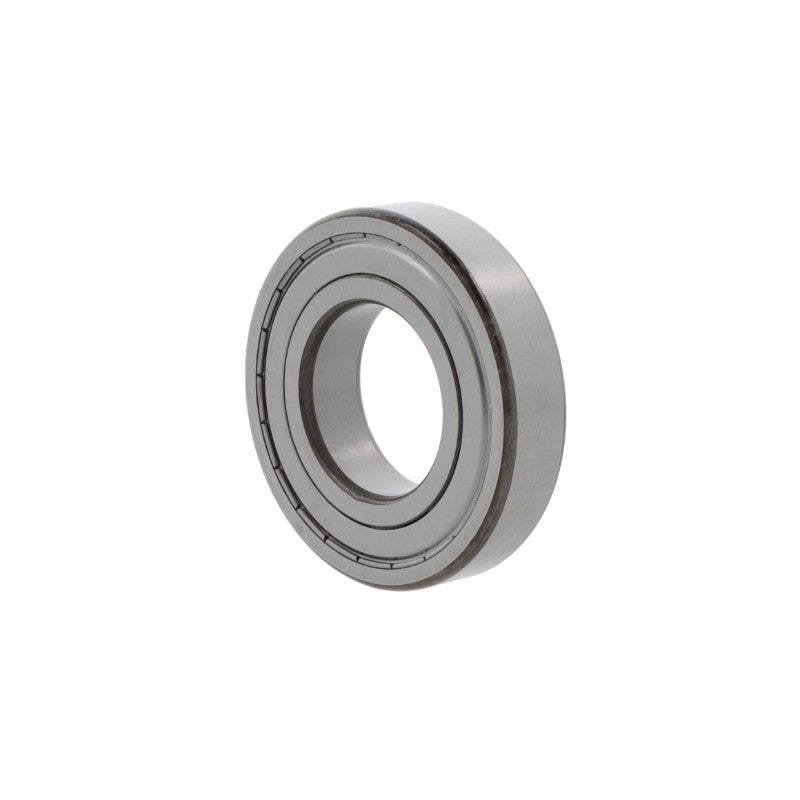

Koyo Koyo6200-ZZC3 Deep Groove Ball Bearing 10x30x9 mm (6200 ZZC3)

Product Description

The KOYO KOYO6200-ZZC3 is a deep groove ball bearing with a 10 mm inner diameter, 30 mm outer diameter, and 9 mm width. It is a single-row bearing manufactured from standard bearing steel with rolling elements in standard bearing steel and a sheet steel cage. The bearing features double-sided shields (ZZ), slightly increased radial clearance, tolerance class P0/PN2 (ABEC 1), a cylindrical bore, and rated operation from -20 to +150 °C.

• Single-row deep groove design; inner ø 10 mm, outer ø 30 mm, width 9 mm
• Double-sided metal shields (ZZ) and sheet steel cage; outer ring without flange or groove
• Slightly increased radial clearance and running accuracy tolerance class P0/PN2 (ABEC 1); temperature range -20 to +150 °C

Product Highlights

Shielded single-row deep groove bearing, 10x30x9 mm, P0/PN2 accuracy, -20 to +150 °C

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6200-ZZC3

Technical Specifications

• Brand: KOYO
• MPN: KOYO6200-ZZC3
• Model: 6200 ZZC3
• Inner Diameter: 10 mm
• Outer Diameter: 30 mm
• Width: 9 mm
• Material: Standard bearing steel
• Ball Rows: Single row
• Seal: Cover on both sides (double-sided shields)
• Cage: Sheet steel cage
• Radial Clearance: Slightly increased radial clearance
• Running Accuracy: Tolerance class P0 / PN2 (ABEC 1)
• Bore: Cylindrical bore
• Outer Ring: Without flange or groove
• Rolling Element Material: Standard bearing steel
• Temperature Range: -20 to +150 °C
• Weight: 0.031 kg
