Koyo Corp. TRF-2435 Steel Thrust Washer

Product Description

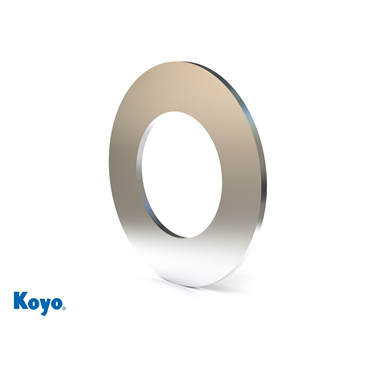

The Koyo Corp. TRF-2435 is a steel thrust washer designed for applications requiring high axial loads. This product works best with NTA, FNT, and AXK Needle Thrust Bearings. The thrust races are hardened, flat, and have a polished surface that supports the rollers effectively.

• 1.5 inches inner diameter
• 2.19 inches outer diameter
• 0.19 inches overall width

Product Highlights

This thrust washer is made from premium 1074 thru-hardened steel. It is available in various thicknesses. Its designs include both inch and metric sizes.

Product Information

Standard Information

• Brand: Koyo Corp.
• Part Number: TRF-2435

Technical Specifications

• I.D.: 1.5 inches, 38.1 mm
• O.D.: 2.19 inches, 55.55 mm
• Overall Width: 0.19 inches, 4.78 mm
• Bearing Material: 1074 Steel
• Operating Temperature [Max]: 230 °F
• Operating Temperature [Min]: -22 °F
• Enclosure: Open
• End Type: Open End
