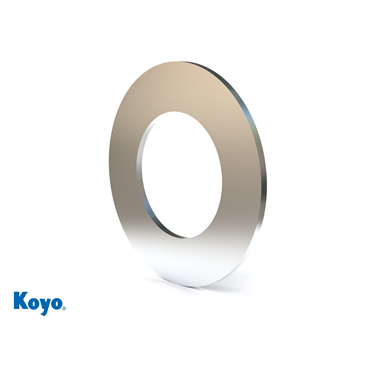

Koyo Corp. TRC-1220 Steel Thrust Washer 0.75 inches Inner Diameter

Product Description

The Koyo Corp. TRC-1220 is a steel thrust washer designed for various applications that require a durable component. This thrust washer fits with NTA, FNT, and AXK needle thrust bearings, effectively managing high axial loads. It features a thin profile which is ideal for tight-space assemblies.

• Inner diameter of 0.75 inches
• Outer diameter of 1.25 inches
• Overall width of 0.1 inches

Product Highlights

This thrust washer is made from premium 1074 thru-hardened steel, ensuring strength and longevity. It has a polished surface for smooth roller movement and is available in various thicknesses suitable for different applications.

Product Information

Standard Information

• Brand: Koyo Corp.
• Part Number: 101710986

Technical Specifications

• I.D.: 0.75 inches (19.05 mm)
• O.D.: 1.25 inches (31.75 mm)
• Overall Width: 0.1 inches (2.41 mm)
• Operating Temperature Max: 230 °F
• Operating Temperature Min: -22 °F
• Weight: 0.02 LB
• Precision Ground: Yes
• Lubricant: Rust Preventative
• End Type: Open End
• Relubricatable: No
• Series: TRC
• Matching Assembly: NTA1220
• Bearing Material: 1074 Steel
