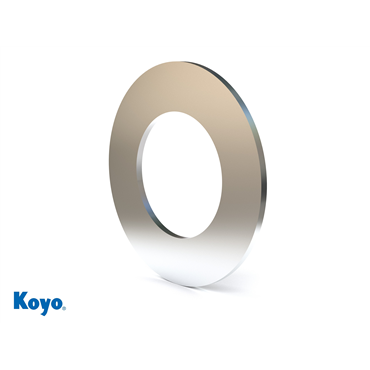

Koyo Corp. TRB-3446 Steel Thrust Washer

Product Description

The Koyo Corp. TRB-3446 is a steel thrust washer designed for high axial load applications. It pairs well with NTA, FNT, and AXK needle thrust bearings, ensuring efficient performance. The washer is made from premium 1074 thru-hardened steel, providing durability and reliability in demanding settings.

• Inner diameter of two point thirteen inches
• Outer diameter of two point eighty-eight inches
• Overall width of point zero six inches

Product Highlights

This thrust washer is crafted for precision. It features hardened, flat surfaces that are polished for smooth roller operation. It is available in various thicknesses and both inch and metric sizes, making it versatile for different applications.

Product Information

Standard Information

• Part Number: 101738796
• Brand: Koyo Corp.

Technical Specifications

• Origin: Thrust Washer
• I.D.: 2.13 inches / 53.98 mm
• O.D.: 2.88 inches / 73.03 mm
• Overall Width: 0.06 inches / 1.6 mm
• End Type: Open End
• Series: TRB
• Bearing Design: Thrust Bearing – Washer Only
• Weight: 0.081 lbs
