Product Description

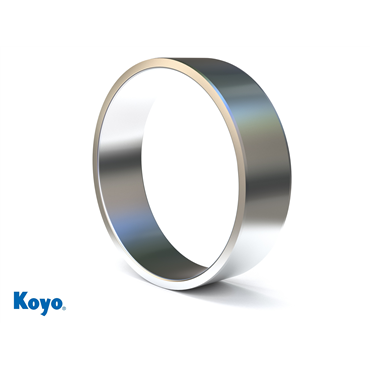

The Koyo Corp. IR-1016 is a high carbon chrome steel inner ring designed for use with drawn cup needle roller bearings. This inner ring offers a reliable and durable option for various applications, ensuring a hardened and properly toleranced race.
- Inner diameter measures zero point six three inches.
- Outer diameter measures zero point eight eight inches.
- Overall width is one point zero two inches.
Product Highlights
Utilizing premium materials, this inner ring supports high performance in a wide range of industrial settings.
Product Information
Standard Information
-
Brand: Koyo Corp.
-
Part Number: 101713527
Technical Specifications
-
Inner Ring Width: one point zero two inches
-
Tolerance: Iso Class 0 (RBEC 1)
-
Self Aligning: No
-
I.D.: zero point six three inches
-
O.D.: zero point eight eight inches
-
Overall Width: one point zero two inches
-
Series: IR
-
Operating Temperature [Min]: minus twenty-two degrees Fahrenheit
-
Operating Temperature [Max]: two hundred thirty degrees Fahrenheit
-
Bearing Material: High Carbon Chrome Steel
-
Fillet Radius: zero point zero four inches
-
Shaft Diameter - Press Fit [Min]: zero point six two five one inches
-
Shaft Diameter - Slip Fit [Max]: zero point six two four six inches
-
Precision Ground: Yes
-
Precision Class: ABEC 1
-
Oil Hole: without Oil Hole
