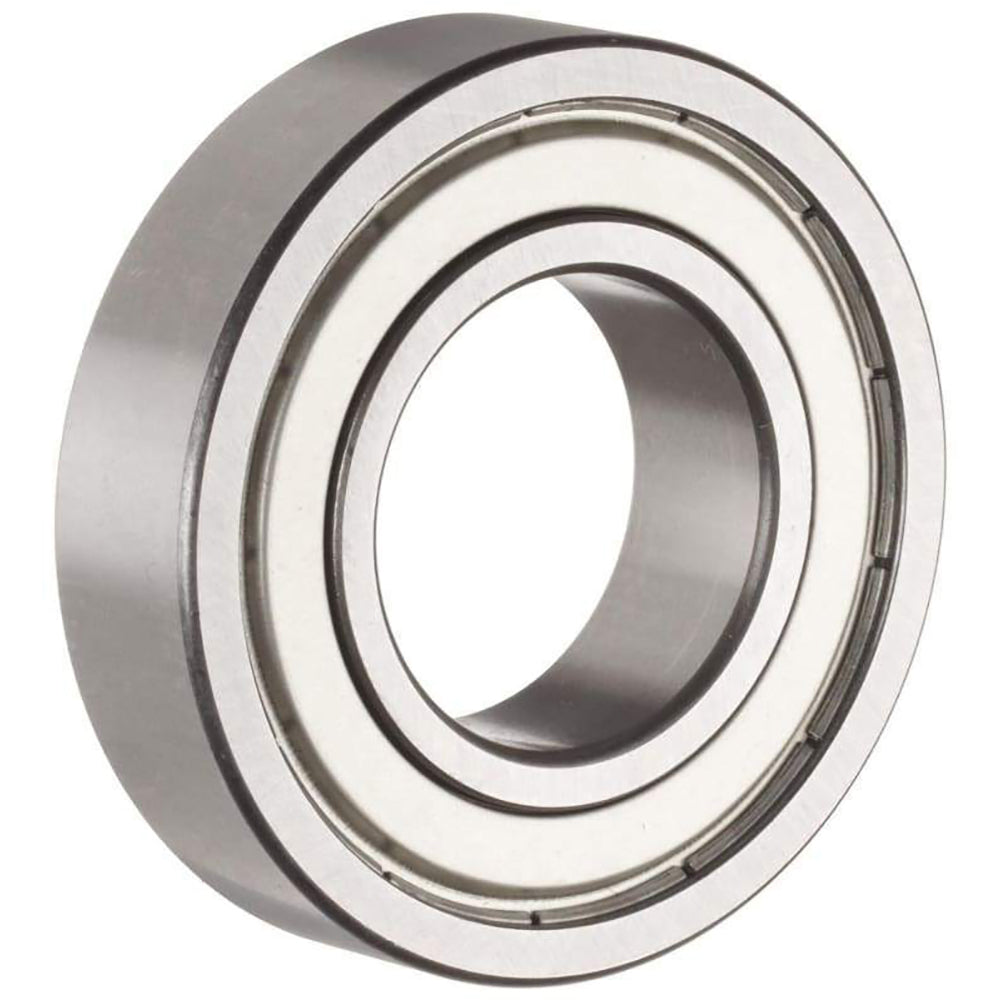

Koyo 6304ZZC3 Deep Groove Ball Bearing (20 x 52 x 15 mm / 1 pc)

Product Description

KOYO 6304ZZC3 is a deep groove ball bearing with metal shields and C3 radial clearance for additional internal play. The bearing measures 20 x 52 x 15 mm (ID x OD x width), is steel construction, and features metal shields (ZZ) on both sides. It is part of the 6300 series, supplied new from Japan, with a dynamic load rating of 19.9 kN and a maximum speed of 6300 RPM.

• Deep groove ball bearing with double metal shields (ZZ) and C3 radial clearance
• Dimensions: 20 mm inner diameter x 52 mm outer diameter x 15 mm width
• Steel construction, 6300 series; dynamic load rating 19.9 kN and maximum 6300 RPM

Product Highlights

Metal-shielded deep groove bearing, C3 clearance, 20 x 52 x 15 mm, new from Japan

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6304-ZZC3
• Country of Origin: Japan

Technical Specifications

• Brand: KOYO
• Manufacturer Part Number: 6304ZZC3
• Bearing Type: Deep groove ball bearing
• Shielding: Double metal shield (ZZ)
• Radial Clearance: C3
• Inner Diameter: 20 mm
• Outer Diameter: 52 mm
• Width: 15 mm
• Material: Steel
• Series: 6300 series
• Dynamic Load Rating: 19.9 kN
• Maximum RPM: 6300 RPM
• Condition: New
• Country of Origin: Japan
• UNSPSC Code: 27110000
• Unit of Measure: EA
• Quantity: One bearing
