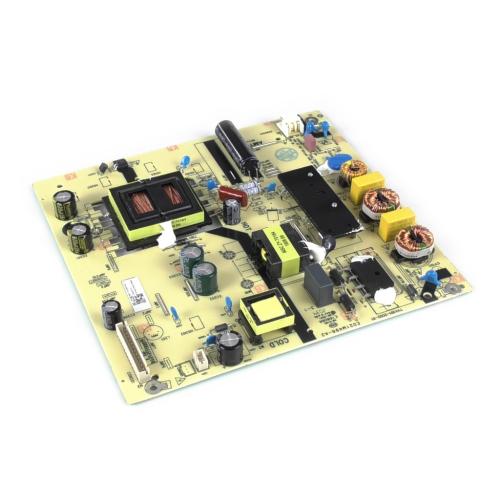

Konka 514c4301m01 Power Board

Product Description

The KONKA 514c4301m01 is a replacement power board designed to restore proper electrical function in compatible KONKA consumer electronics units. The power board serves as the primary power-conversion and distribution component within the display assembly, receiving AC input and delivering regulated DC voltages to the mainboard, backlight inverter, and other internal subsystems. Technicians and electronics repair professionals install this board when diagnosing failed power delivery, no-power conditions, or backlight failures that trace back to the power supply stage rather than the main logic board.

This power board is suited for electronics repair applications where the original KONKA power board has failed due to component-level faults such as blown fuses, failed capacitors, or damaged rectifiers. It is intended for use by qualified electronics repair technicians comfortable working inside display enclosures. Specific compatible model numbers were not provided in the available product data; verify fitment against the original board part number before ordering.

Key Features

• Direct replacement power board for compatible KONKA consumer electronics units
• Restores regulated DC voltage distribution to internal display subsystems
• Lightweight construction at under 1 pound, facilitating handling during bench repair
• OEM part number 514c4301m01 ensures accurate cross-reference matching

Compatibility

Designed as an OEM-style replacement power board for compatible KONKA consumer electronics displays; verify the original board part number matches 514c4301m01 before installation to confirm fitment.

Installation Notes

Installation should be performed by a qualified electronics repair technician. Disconnect the unit from AC mains power and allow sufficient time for internal capacitors to discharge fully before opening the enclosure or handling any internal boards. Use appropriate ESD precautions when handling the power board to prevent damage to sensitive components. Reconnect all wiring harnesses and connectors fully before powering the unit on to test.

Technical Specifications

• Weight: Under 1 pound

Standard Information

• Brand: KONKA
• Manufacturer Part Number: 514c4301m01
