Kohler TS5320-4-CP Refinia Rite-Temp Shower Valve Trim 2.5 gpm (6-7/16 in) K-T5320-4

Product Description

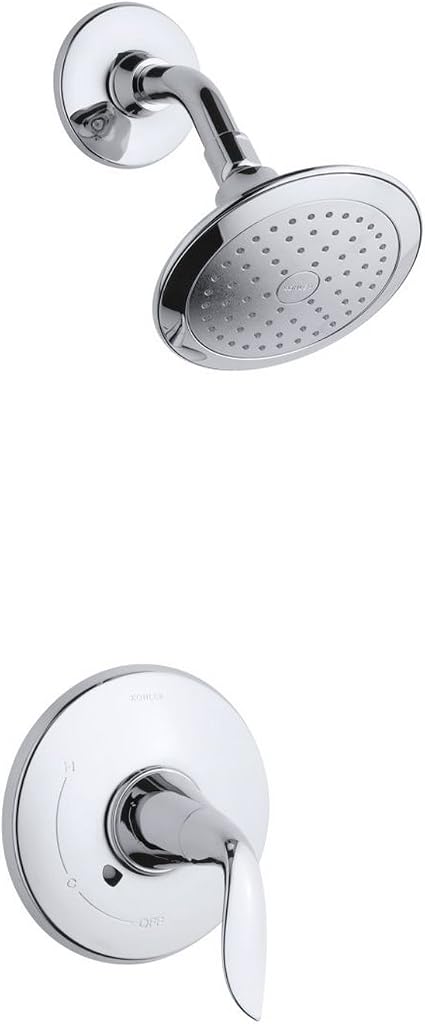

Kohler TS5320-4-CP is a Refinia Rite-Temp shower valve trim that includes a single-function 2.5 gpm showerhead and a metal lever handle. The trim uses a pressure-balancing diaphragm to maintain outlet temperature within +/-3°F during pressure fluctuations and provides automatic anti-scald protection. The showerhead has a 6-7/16 in face diameter with a 1/2 in NPT connection and a MasterClean sprayface; valve body is supplied separately.

• Pressure-balancing diaphragm maintains outlet temperature within +/-3°F and provides automatic anti-scald protection
• Single metal lever controls on/off and temperature; ADA-compliant lever handle
• Single-function 2.5 gpm showerhead with Katalyst air-induction spray, MasterClean sprayface, 6-7/16 in face diameter, 1/2 in NPT connection

Product Highlights

Refinia Rite-Temp trim with 2.5 gpm showerhead, pressure-balanced temperature control, ADA-compliant metal lever; pairs with compatible Rite-Temp valve body.

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: TS5320-4-CP
• Country of Origin: China

Technical Specifications

• Brand: Kohler
• Manufacturer Part Number: TS5320-4-CP
• Model: TS5320-4-CP
• Product Type: Shower valve trim
• Collection: Refinia Rite-Temp
• Flow Rate: 2.5 gpm
• Connection: 1/2 in NPT
• Face Diameter: 6-7/16 in (6.4375 in)
• Dimensions (W x D x H): 4-1/8 in x 4-1/8 in x 6-3/8 in
• Material: Metal
• Handle Material: Metal
• Number of Handles: 1
• Mounting Type: Wall mount
• Pressure Rating: 80 psi
• Temperature Regulation: Maintains outlet temperature within +/-3°F during pressure fluctuations
• Showerhead Technology: Katalyst air-induction spray; MasterClean sprayface
• Standards: ASME A112.18.1; CSA B125.1
• ADA Compliant: Yes
• Item Weight: 1.9 Pounds
• Country of Origin: China
• Replacement MPN: K-T5320-4
• Notes: Trim includes showerhead and trim; compatible Rite-Temp valve body sold separately
