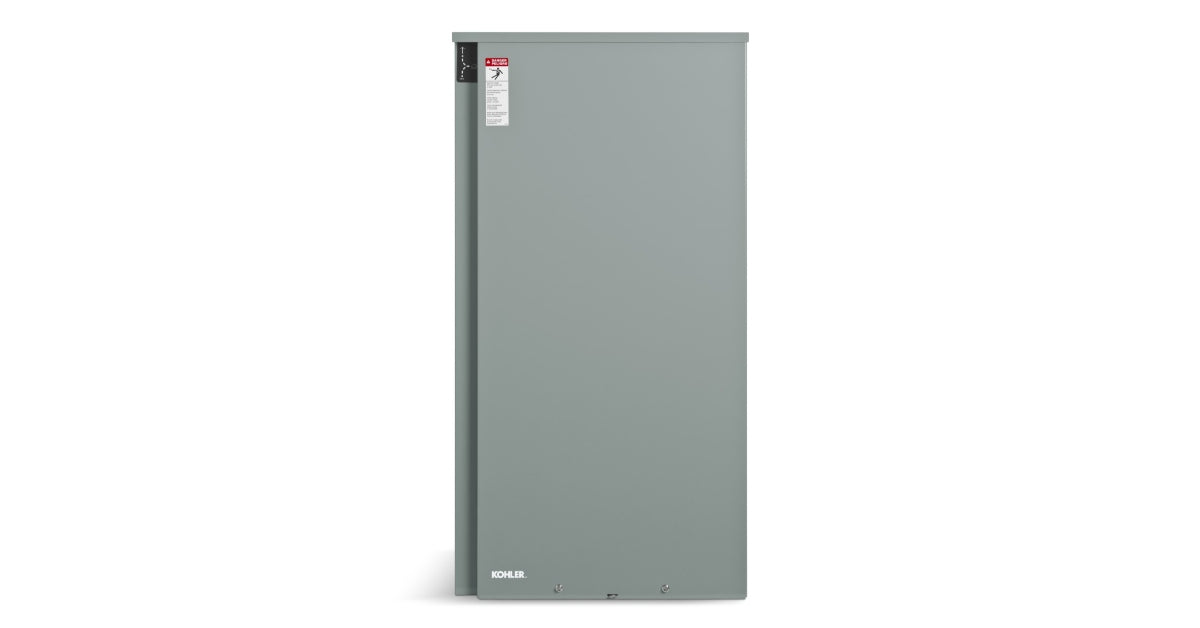

Kohler RXT-JFNC-300ASEQS4 RXT Series 300-Amp Outdoor Automatic Transfer Switch (Service Disconnect)

Product Description

The Kohler RXT-JFNC-300ASEQS4 is a 300-Amp automatic transfer switch designed for outdoor use. It operates only with Kohler generators that have RDC2 or DC2 controllers. This transfer switch is service entrance rated and includes disconnect circuit breakers for both sources. Made from corrosion-resistant NEMA 3R aluminum, it is suitable for indoor or outdoor installations. It provides added safety features like a padlock capability for manual operation.

• Compatible with Kohler generators with RDC2/DC2 controllers
• Service entrance rated with disconnect circuit breakers
• Corrosion-resistant NEMA 3R aluminum enclosure

Product Highlights

This transfer switch allows for efficient management of electrical loads. It features built-in load shedding to manage two HVAC loads and four non-essential loads. The interface board connects directly to the RDC2 or DC2 controller for optimal utility voltage display. Its double-throw interlocked design ensures reliable operation.

Product Information

Standard Information

• Brand: Kohler
• MPN: RXT-JFNC-300ASEQS4

Technical Specifications

• Voltage: 120/240 Single-Phase
• Rated Amps: 300 Amps
• Enclosure: NEMA 3R
• Product Depth: 12.9 inches
• Product Width: 22 inches
• Product Height: 42 inches
• Maximum Wattage: 72000 Watts
• Frequency: 60 Hertz
• Consumer Warranty: 5 Years
