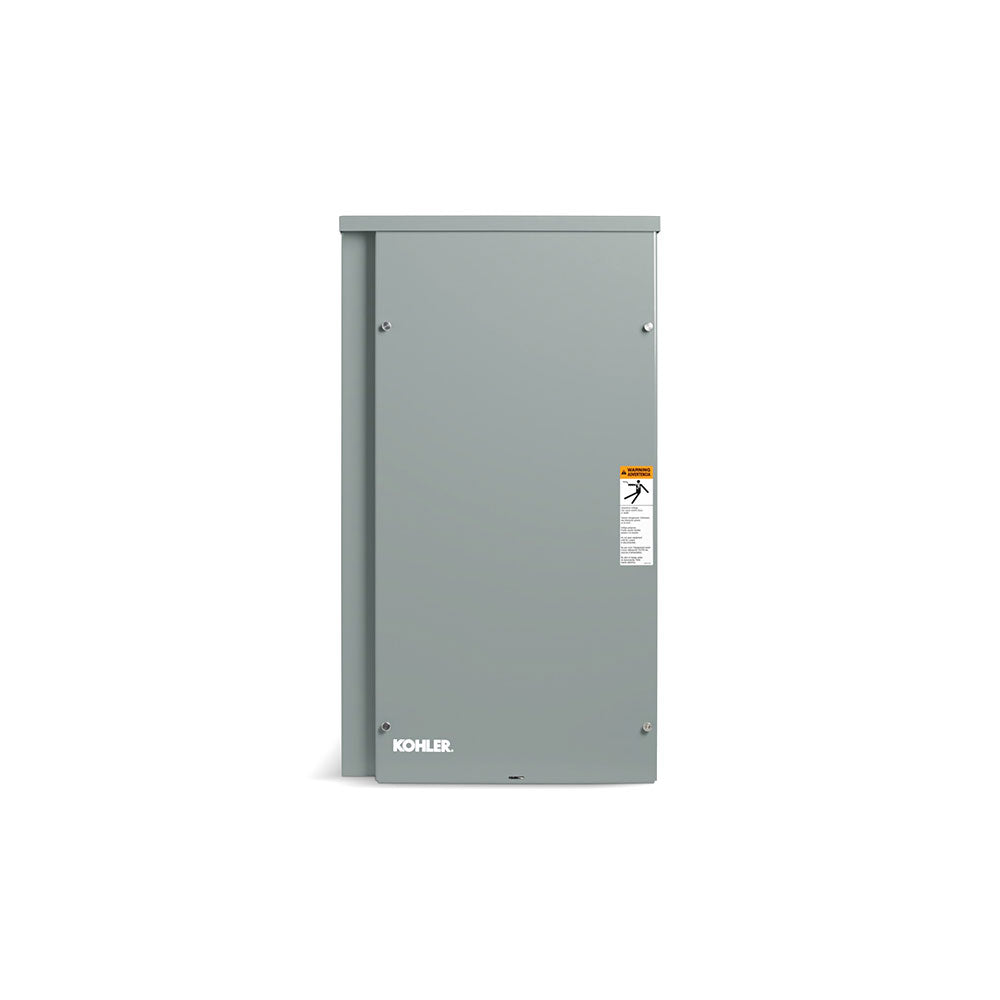

Kohler RXT-JFNC-150ASEQS3 150-Amp Outdoor Automatic Transfer Switch

Product Description

The Kohler RXT-JFNC-150ASEQS3 is a 150-Amp outdoor automatic transfer switch. It is designed exclusively for use with Kohler generators that feature RDC2 or DC2 controllers. This transfer switch is service entrance rated, ensuring it meets safety standards.

• Compatible with Kohler generators.
• Corrosion-resistant NEMA 3R aluminum enclosure.
• Includes disconnect circuit breakers on both sources.

Product Highlights

This automatic transfer switch is approved for indoor and outdoor installations. It features a padlock for added safety, utility voltage display, and an interface board for seamless connection to the RDC2 and DC2 controllers.

Product Information

Standard Information

• Brand: Kohler
• MPN: RXT-JFNC-150ASEQS3

Technical Specifications

• Amp Rating: 150-Amp
• Voltage: 120/240 Single-Phase
• Enclosure: NEMA 3R
• Rated Amps: 150 Amps
• Maximum Wattage: 36000 Watts
• Transfer Switch Style: Service Disconnect
• Weight: 26 Pounds
• Dimensions: 6.9 inches depth x 16.4 inches width x 28.9 inches height
• Frequency: 60 Hertz
• Consumer Warranty: 5 Years
• ATS Load Shedding: Built-In
• ATS Service Disconnect: Yes
• UL Listed: Yes
