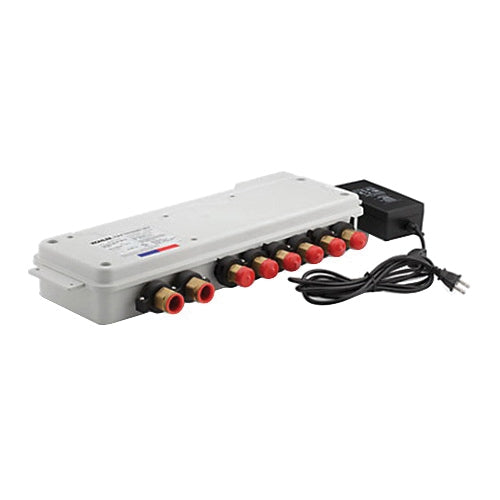

Kohler K-682-K-NA DTV 6-Port Thermostatic Valve 3/4 x 1/2 in NPT

Product Description

The Kohler K-682-K-NA is a DTV 6-Port Thermostatic Valve designed for custom showering applications. This valve enhances the showering experience with advanced technology. It features digital thermostatic technology for accurate temperature control. The K-682-K-NA has six independently controllable outlet ports, allowing for various shower configurations.

• Digitally controlled thermostatic mixing valve
• Anti-scald protection
• Includes filter screens

Product Highlights

This valve is part of the DTV+ system and can be paired with a second digital valve for multiple outlets or varied temperatures. It is easy to install and fits in standard wall cavities.

Product Information

Standard Information

• Brand: Kohler
• Manufacturer: Kohler

Technical Specifications

• Connection Size: 3/4 x 1/2 in
• Connection Type: NPT
• Flow Rate: 21 gpm
• Height: 9-3/16 in
• Length: 22-1/4 in
• Width: 3-5/16 in
• Includes: 110 VAC Power Supply
• Mounting: Wall
• Sub Brand: DTV
• Type: 6-Port
• Standards/Certifications: ASME A112.18.1, CSA B125.1, ASSE 1016, ASME A112.1016, CSA B125.16, UL 1951, CSA C22.2.14, C22.2.68
• Applications: For DTV+ system
