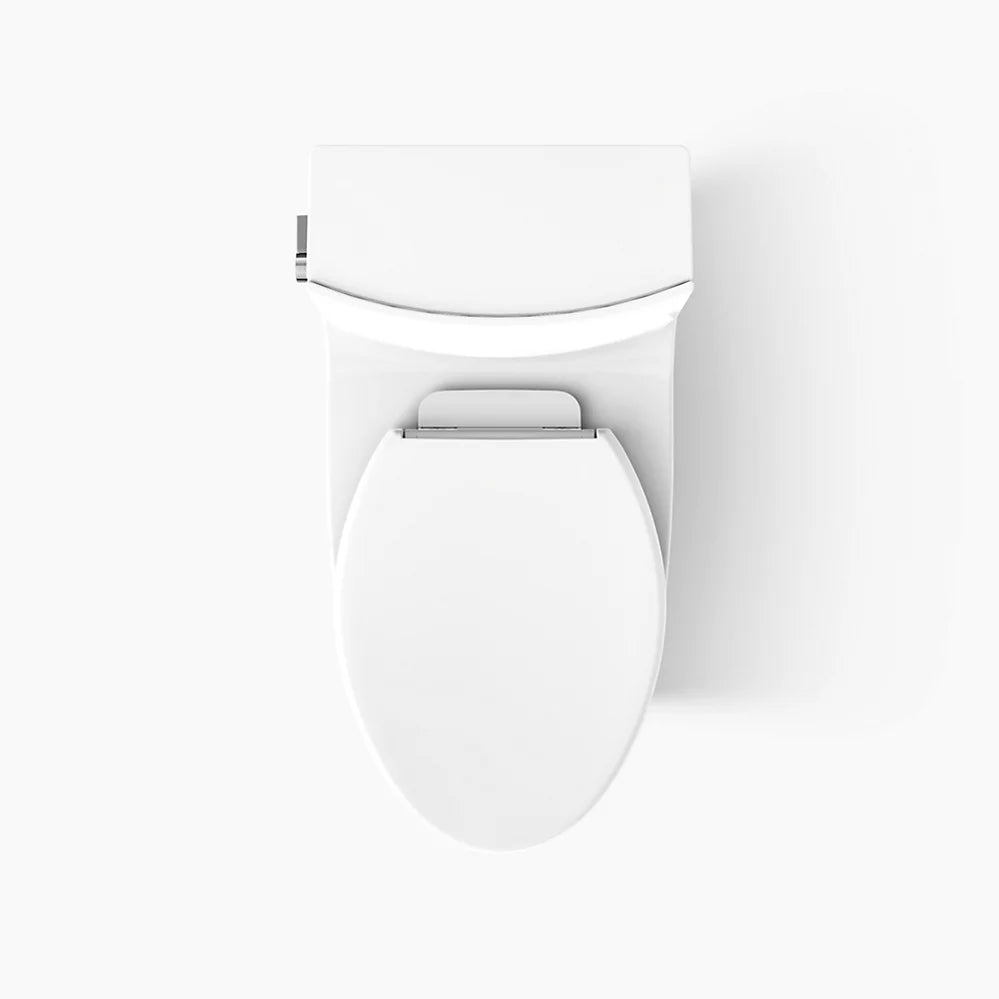

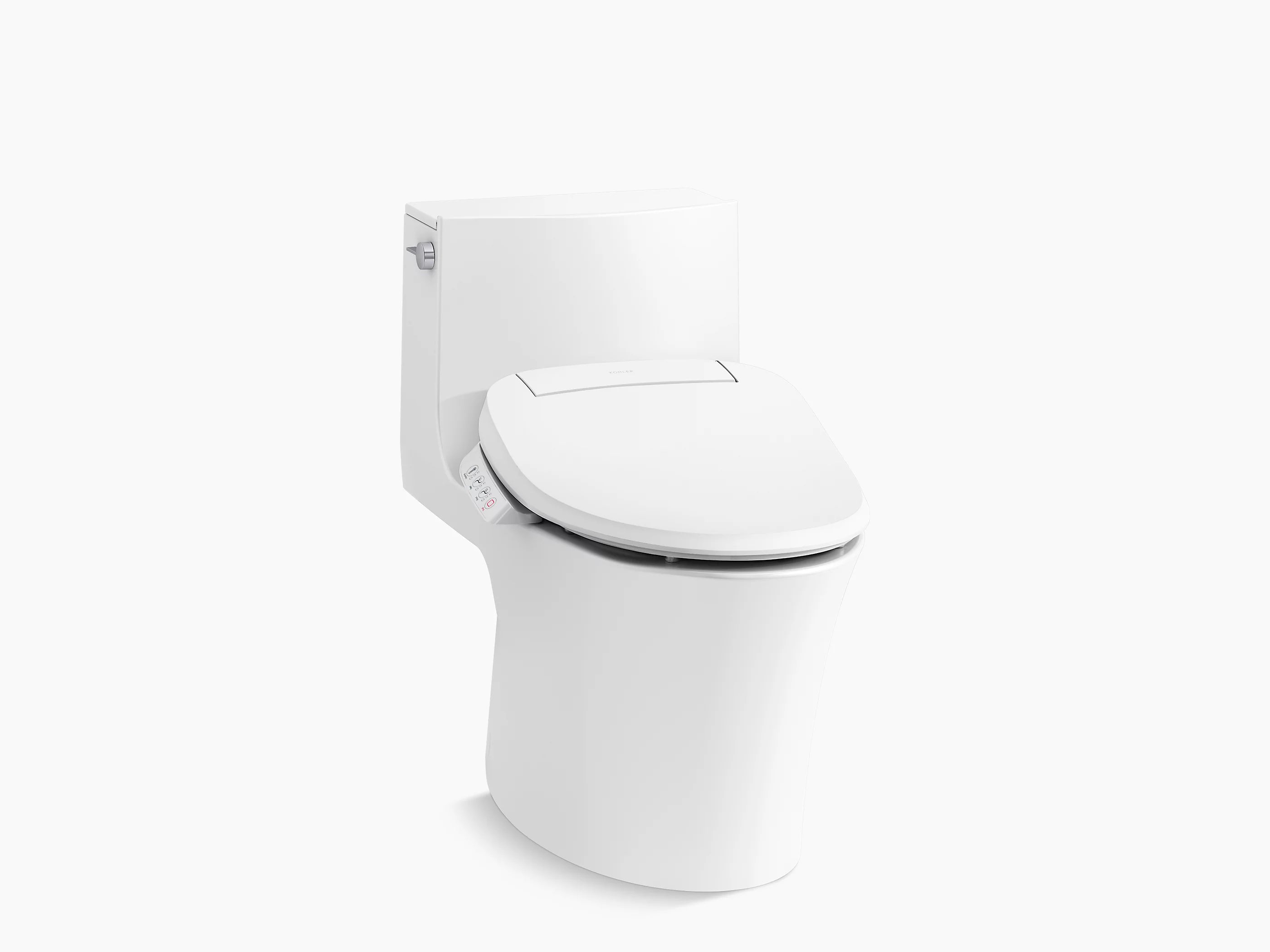

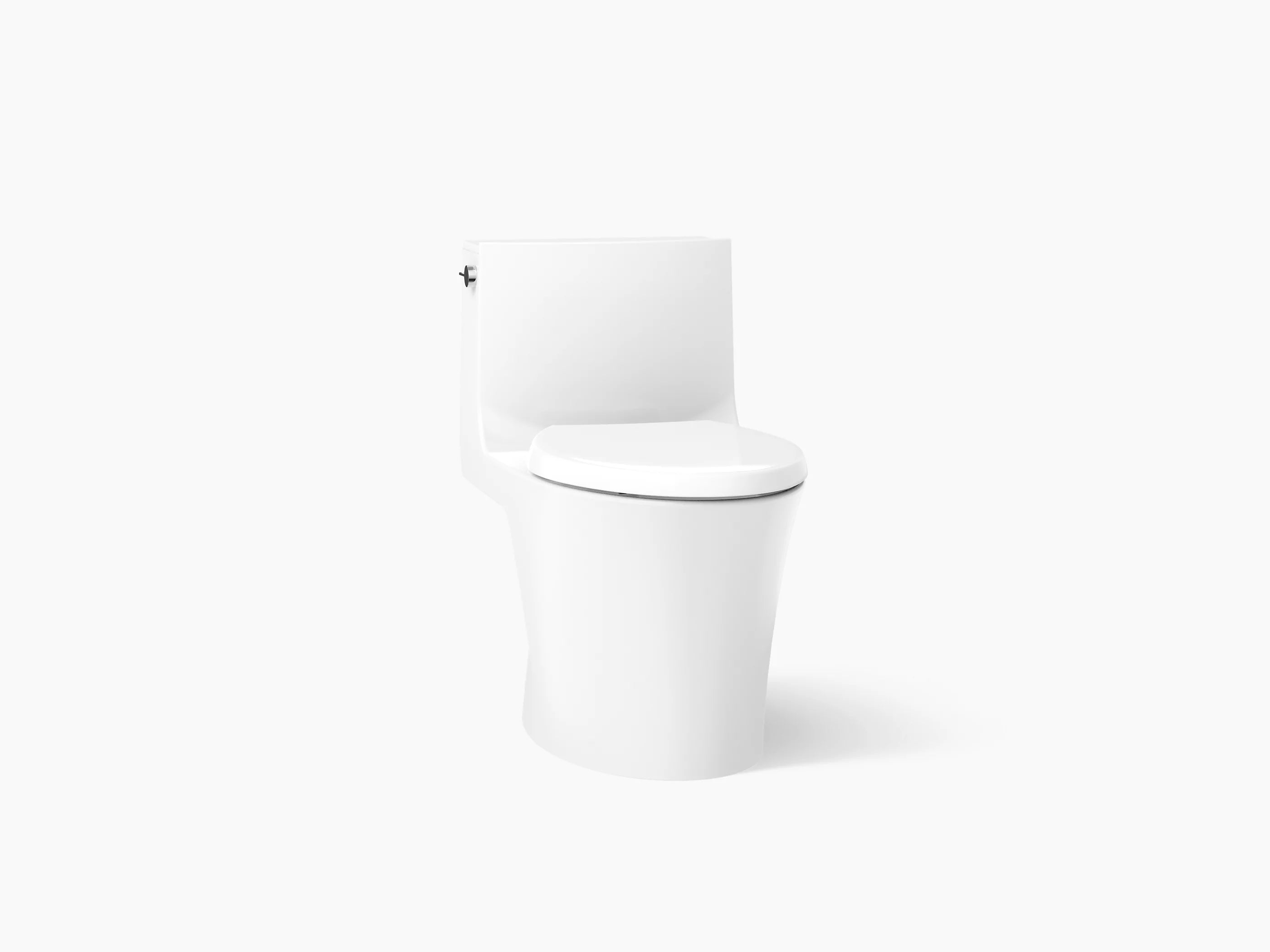

Kohler K-1381-HC Veil 1.28 GPF Elongated Toilet 12 in. Rough In

Product Description

The KOHLER K-1381-HC Veil one-piece toilet features an elongated bowl with a 15.375 in. height and dual flush siphonic jet flushing technology. The handle is located on the left side. Requires separate purchase of bidet seat. Constructed of vitreous china ensuring dependability and durability.

• Elongated bowl with 15.375 in. height
• Dual flush siphonic jet flushing technology
• Handle located on left side
• One-piece configuration provides a uniform look and simplifies installation

Product Highlights

The KOHLER Veil one-piece toilet integrates the tank and bowl into a seamless, easy-to-clean design. It offers a choice of 0.8 or 1.28 gallons per flush.

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: K-1381-HC-0
• Country of Origin: China

Technical Specifications

• Overall Height: 26-7/8" (bottom of the base to the highest point of the toilet)
• Overall Depth: 28-5/16" (furthest point back to front of toilet)
• Overall Width: 15-3/16" (furthest point left to furthest point right)
• Bowl Height: 15-3/8" (floor to the top of the bowl)
• Flow Rate: 0.8/1.28 gallons-per-flush
• Trapway (Discharge Passageway) Size: 2-1/8"
• Rough-In: 12"
• Bowl Shape: Elongated
• Configuration: One Piece
• Design Features: Concealed Trapway, Configured for Bidet Seat, Dual Flush, Glazed Trapway
• Electronic: No
• Flush Type: Siphon Jet
• Installation Type: Floor Mounted
• Material: Vitreous China
• Theme: Transitional
• Trip Lever Placement: Left
• Water Efficient: Yes
• Flush Technology: Class Five
• ADA: No
• Approved for Commercial Use: Yes
• ASME Code: A112.19.14, A112.19.2
• CA Drought Compliant: Yes
• Certifications: ASME, CSA
• Collection: Veil
• CSA Code: B45.1
• TX Drought Compliant: Yes
• WaterSense Certified: Yes
• Installation: Floor-mount
