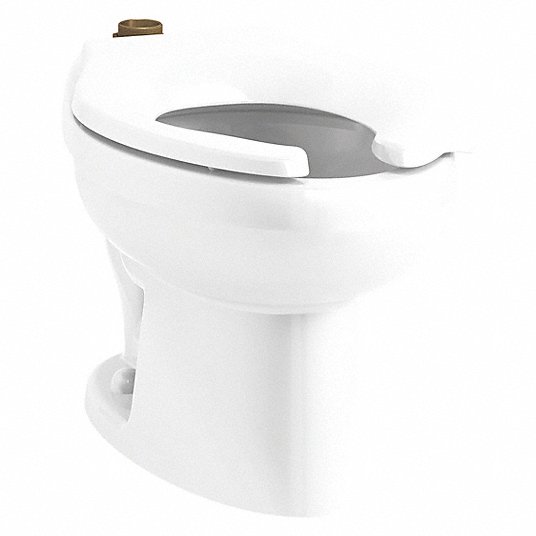

Kohler 96059-0 Juvenile Ultra Elongated Toilet Bowl 1.1 to 1.6 gpf

Product Description

The KOHLER 96059-0 Juvenile Ultra Elongated Toilet Bowl is ideal for school construction and remodeling. This floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design. It meets both ADA and Texas Accessibility Standard (TAS) height requirements for elementary school children. The bowl operates from 1.1 to 1.6 gpf.

• Elongated bowl
• Juvenile height
• ADA Compliant

Product Highlights

The KOHLER Juvenile Ultra toilet bowl is designed for optimal flush performance and meets accessibility standards for elementary schools.

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 96059-0
• Country of Origin: Unknown

Technical Specifications

• Top spud: 1-1/2"
• Trap passageway: 2-1/8"
• Bowl Shape: Elongated
• Height: Juvenile height
• Water Consumption Range: 1.1 to 1.6 gpf
• Water surface: 10" x 7"
• Mounting Type: Floor
• Collection: Juvenile Ultra
• Rough-In Size: 10 or 12 in
• Seat Yes/No: No
• Depth: 25-15/16 in
• Flush Handle: Flushometer
• Flush Rate: 1.1 to 1.6 gpf
• Gallons per Flush: 1.1 to 1.6 gpf
• Inlet Spud Size: 1-1/2 in
• Material: Vitreous China
• Rim Height: 13-3/4 in
• Series: 96059
• Shape: Elongated
• Trapway Size: 2-1/8 in
• Type: Toilet Bowl
• Water Surface Area: 7 x 10 in
• Width: 14-5/8 in
• Brand: KOHLER
• UNSPSC: 30181511
• Alternate Part Number 1: K-96059-0
• ADA Compliance (Yes/No): Yes
• Overall Length: 26 in
• Overall Depth: 26 in
• Toilet Mounting Type: Floor
• Spud Location: Top
• Spud Connection Size: 1-1/2 in
• Flushing Method: Flushometer
• Overall Width: 14-5/8 in
• Toilet Bowl Material: Vitreous China
• Includes Toilet Tank: Toilet Tank Not Included
• Includes Flush Valve Cover: Flush Valve Cover Not Included
• Includes Bowl: Bowl Included
• Includes Seat: Seat Included
• Antimicrobial: Antimicrobial
• Standards: ASME A112.19.2/CSA B45.1; CSA B651; California Energy Commission (CEC); DOE - Energy Policy Act 1992; EPA WaterSense®; ICC/ANSI A117.1; OBC; Texas Accessibility Standard (TAS)
• Toilet Product Type: Toilet Bowl
• Overall Height: 13-3/4 in
• Installation Type: Floor-mount
