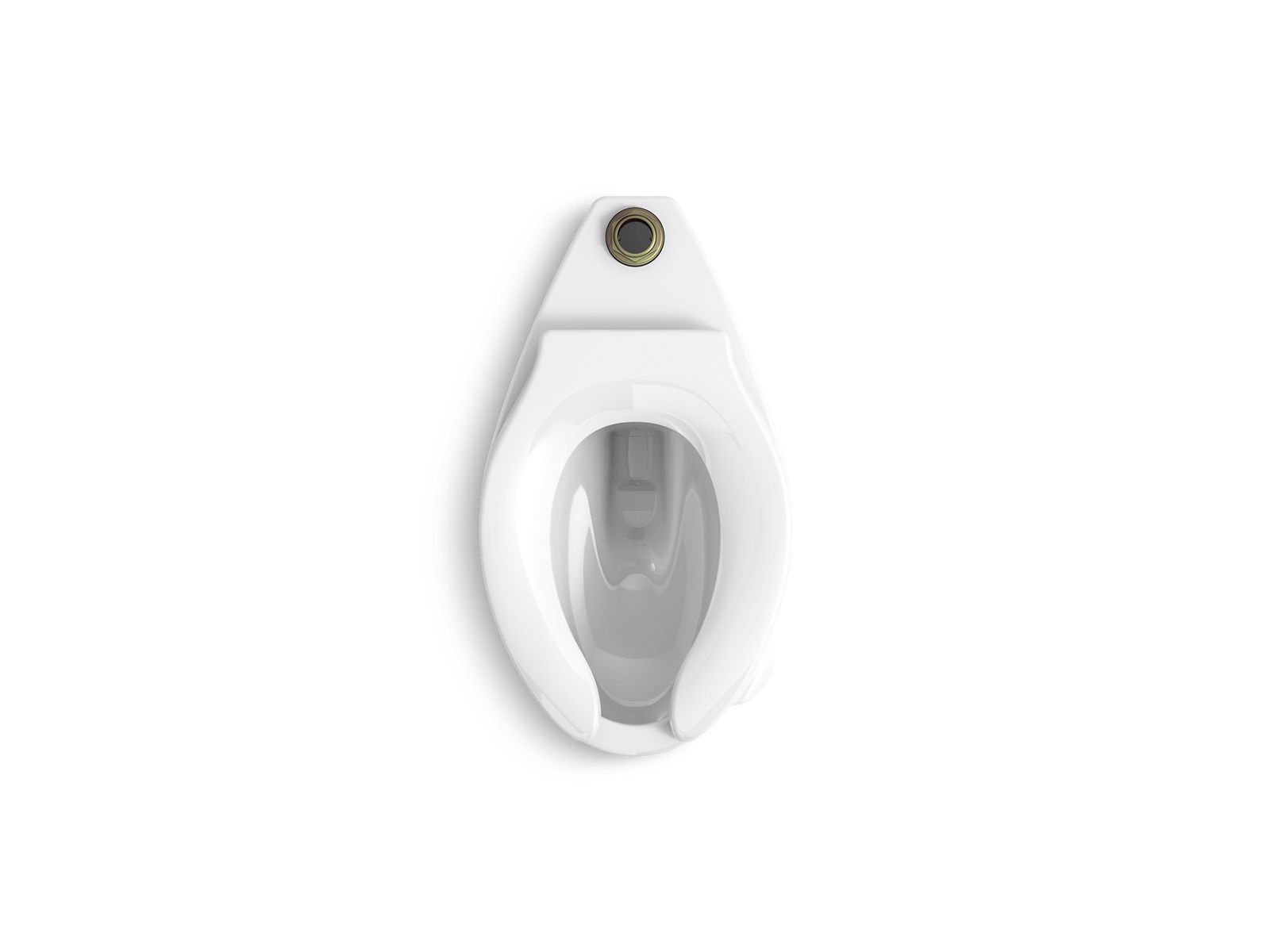

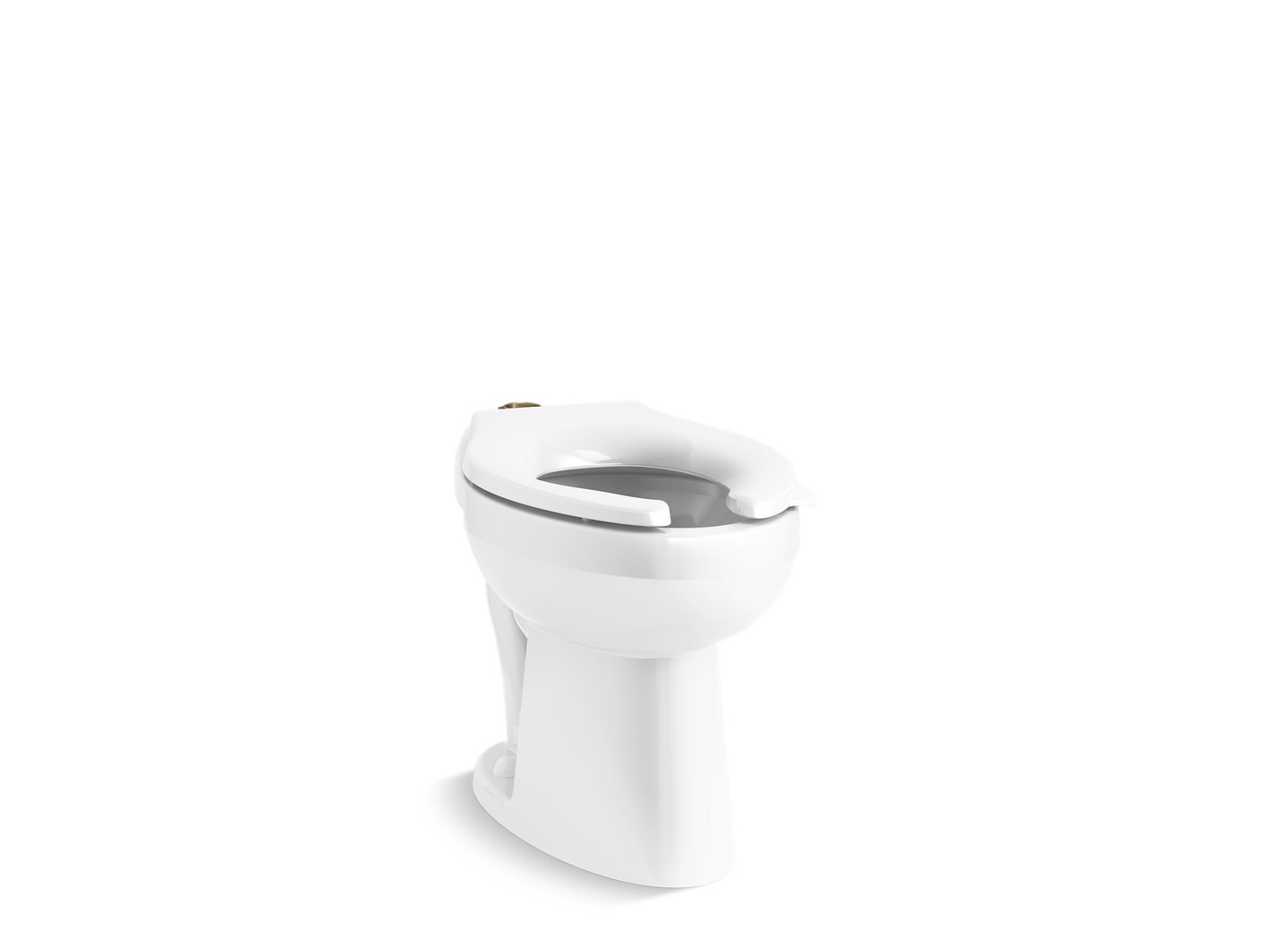

KOHLER 96057-BA-0 Highcliff Ultra Floor-Mount Top Spud Flushometer Bowl

Product Description

The KOHLER 96057-BA-0 Highcliff Ultra is a floor-mounted flushometer bowl made of vitreous china. This bowl features an elongated shape that provides additional comfort. It has a top spud connection and a four-bolt base for added stability. The design allows compatibility with various flush valves, making it suitable for different water supply conditions. It meets ADA and CSA height standards, making it an appropriate choice for commercial settings.

• Elongated bowl offers added room and comfort.
• Features a 1-1/2 top spud.
• Designed for buildings with low supply pressure and flow.

Product Highlights

This flushometer bowl is engineered to handle multiple flushing requirements with a siphon flush mechanism that effectively manages water flow.

Product Information

Standard Information

• Model: K-96057-BA-0
• Configuration: Bowl Only

Technical Specifications

• Bowl Shape: Elongated
• Material: Vitreous china
• Installation Type: Floor Mounted
• Flush Type: Siphon Flush
• Spud Placement: Top
• Spud Size: 1-1/2 (38 mm)
• Rough-in: 10 or 12 (254 or 305 mm)
• Trap Passageway: 2-1/8
• Trapway: 2-1/8 (54 mm) fully glazed
• Water Surface Size: 10 x 7 (254 mm x 178 mm)
• Gallons Per Flush: 1 GPF / 1.6 GPF
• ADA Compliant: Yes
• Commercial Use: Yes
• Length: 26.13
• Width: 14.63
• Height: 16.63
