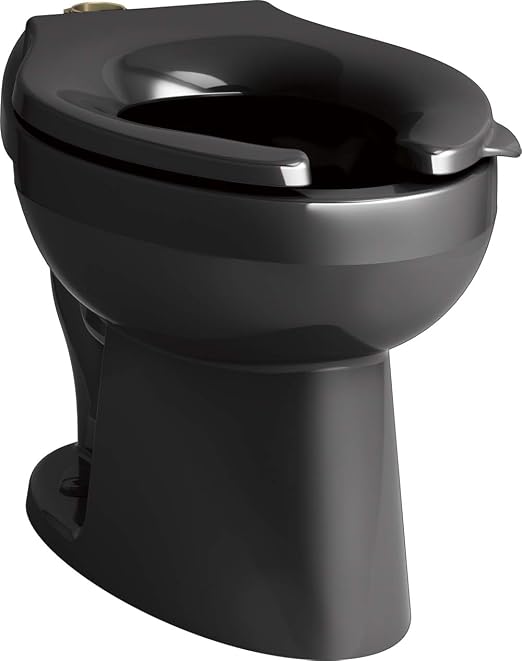

Kohler 96053-7 Wellcomme Ultra Elongated Toilet Bowl (Top Spud 1-1/2 inches) Replaces Welcome and Wellworth Models

Product Description

Kohler 96053-7 is a Wellcomme Ultra floor-mount top-spud flushometer toilet bowl designed for commercial installations. The vitreous china elongated, standard-height bowl includes a 1-1/2 in top spud, a 2-1/8 in fully glazed trapway, and a 10 x 7 in water surface. It is listed for 1.1 to 1.6 gallons per flush and is compatible with diaphragm, piston, manual, and electronic valves.

• Top-spud floor-mount design with 1-1/2 in inlet spud and 2-1/8 in fully glazed trapway
• Listed flush range 1.1 to 1.6 gpf; compatible with diaphragm, piston, manual, and electronic valves
• Dimensions include rim height ~15-1/4 in, overall length 25-7/8 in, water surface 10 x 7 in; rough-in 10 or 12 in

Product Highlights

Floor-mount elongated flushometer bowl; vitreous china construction; WaterSense and multiple code certifications

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 96053-7
• Country of Origin: Thailand

Technical Specifications

• Brand: Kohler
• MPN: 96053-7
• Manufacturer Part Number: K96053-7
• Product Name: Wellcomme Ultra Floor-Mount Top Spud Flushometer Bowl
• Material: Vitreous china
• Mounting Type: Floor-mount
• Installation Type: Floor-mount, top-spud (flushometer bowl)
• Inlet Spud Size: 1-1/2 in (38 mm) top spud
• Trapway Size: 2-1/8 in (54 mm) fully glazed trapway
• Bowl Shape: Elongated
• Bowl Type: Elongated, standard-height
• Water Surface Area: 10 x 7 in (254 mm x 178 mm)
• Gallons per Flush: 1.1 to 1.6 gpf (listed)
• Flush Performance Notes: Listed 1.1 to 1.6 gpf depending on flushometer specified
• Compatible Valve Types: Diaphragm, piston, manual, electronic
• Rim Height / Height to Rim: 15-1/4 in (~15.19 in)
• Overall Length / Depth: 25-7/8 in (~25.88 in)
• Overall Width: 14-9/16 in (~14.56 in)
• Rough-In Options: 10 or 12 in (254 or 305 mm)
• Application: Commercial
• Certifications: ASME A112.19.2/CSA B45.1; CEC; CALGreen; DOE Energy Policy Act 1992; EPA WaterSense; LEED
• Replaces: Kohler Welcome and Wellworth flushometer models
• WaterSense: Yes
• Inlet/Outlet: Top spud flushometer configuration (1-1/2 in inlet)
