Kohler 8304-PXPF-NA Rite-Temp Pressure-balancing Valve Body and Cartridge Kit with PEX Crimp Connections

Product Description

The KOHLER 8304-PXPF-NA Rite-Temp valve system sets standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology.

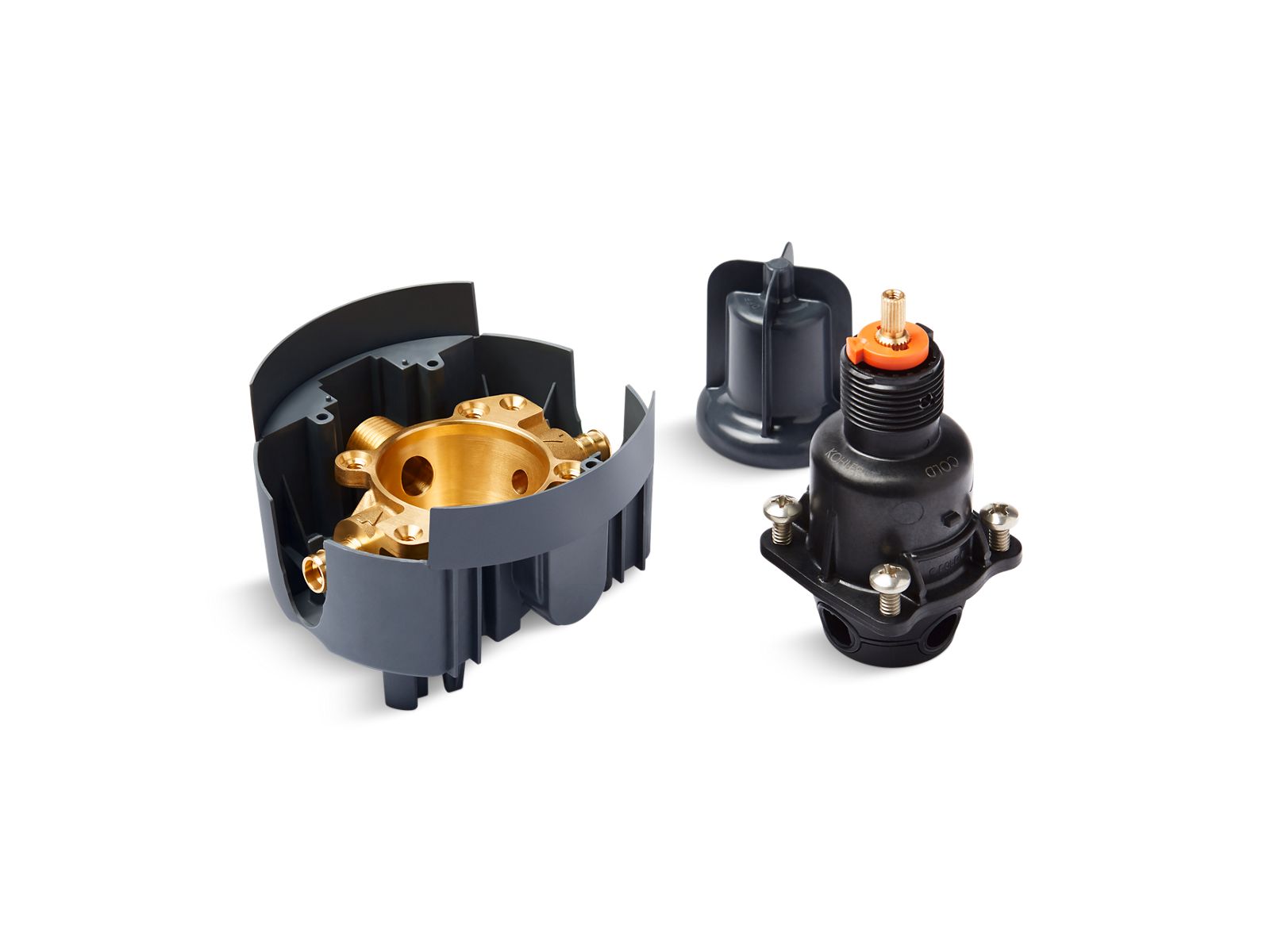

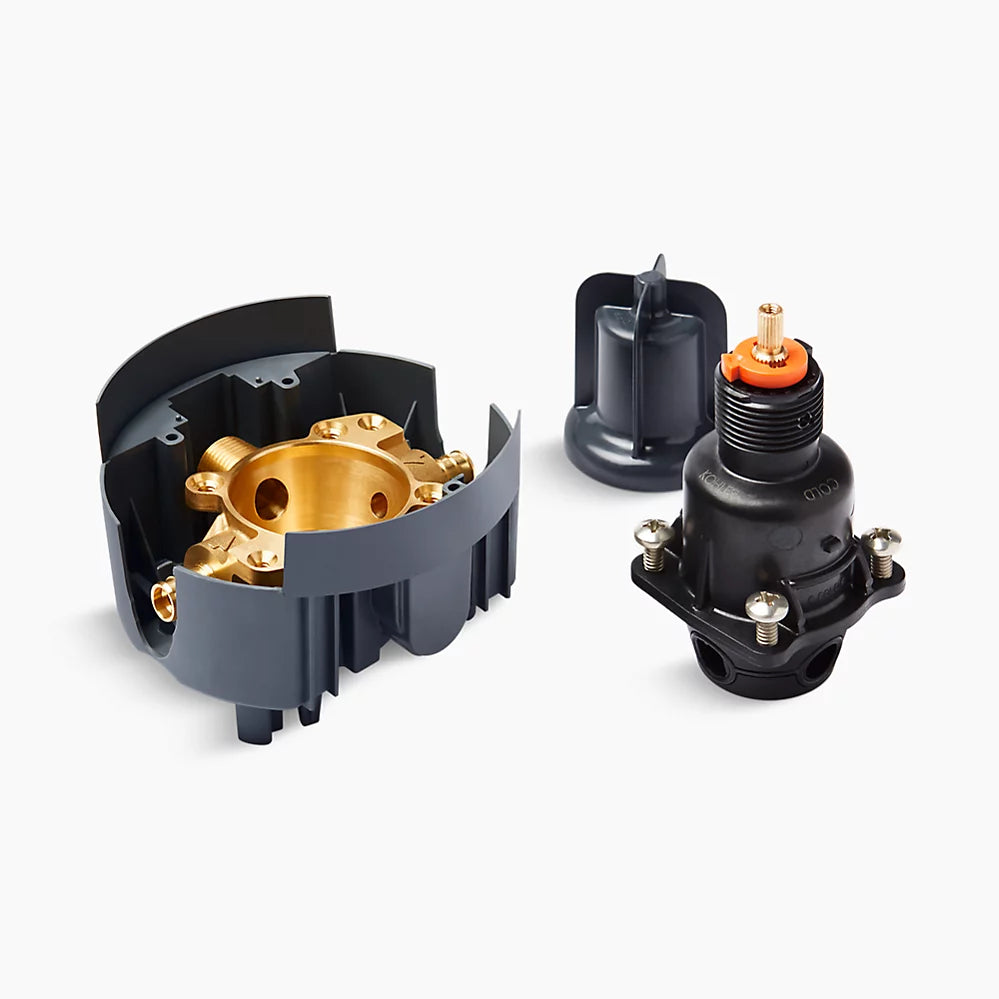

• Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
• 1/2" PEX Crimp (F1807 style) inlets
• 1/2" Universal NPT & direct sweat outlets

Product Highlights

This valve features a forged dezincification-resistant brass body, integral mounting locations, and symmetrical valve inlets to simplify installation. It also has a reversible cartridge for installations where hot and cold supplies are reversed.

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 8304-PXPF-NA

Technical Specifications

• Material: Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
• Installation: Designed for use in standard, back-to-back, and thin wall installations
• Valve body: Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
• Cartridge: Cartridge is reversible for installations where hot and cold supplies are reversed
• Rough-in guide: Rough-in guide designed for both standard and thin wall installations
• Installed valve rough-in: Installed valve rough-in can be flushed and pressure-tested to 150 psi max (air or water) without cartridge by using test cap (sold separately)
• Inlets: 1/2" PEX Crimp (F1807 style)
• Outlets: 1/2" Universal NPT & direct sweat
• Maximum Flow Rate: 5.0 gpm (18.9 lpm) at 45 psi (3.1 bar)
• Design: Single lever design cycles from off through cold to hot
• Protection: Antiscald protection
• Temperature Limit: Adjustable high-temperature limit stop to control maximum water temperature
• Technology: Pressure-balancing diaphragm technology maintains outlet temperature within +/-3 0F during water pressure fluctuations
• Body Material: Forged dezincification-resistant brass body
