Kohler 800T70-4ANA-CP Triton Bowe Gooseneck - Lever 0.5 gpm

Product Description

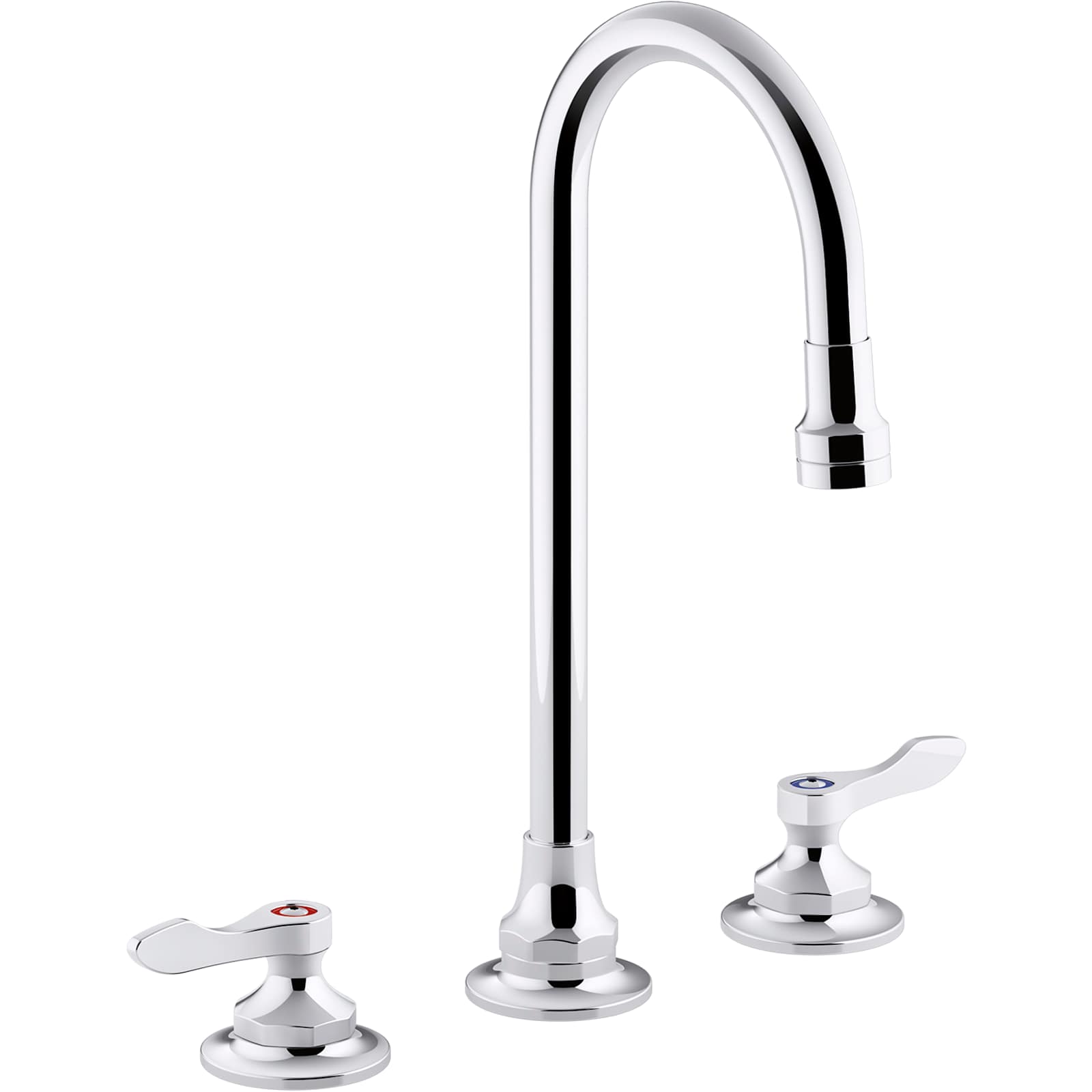

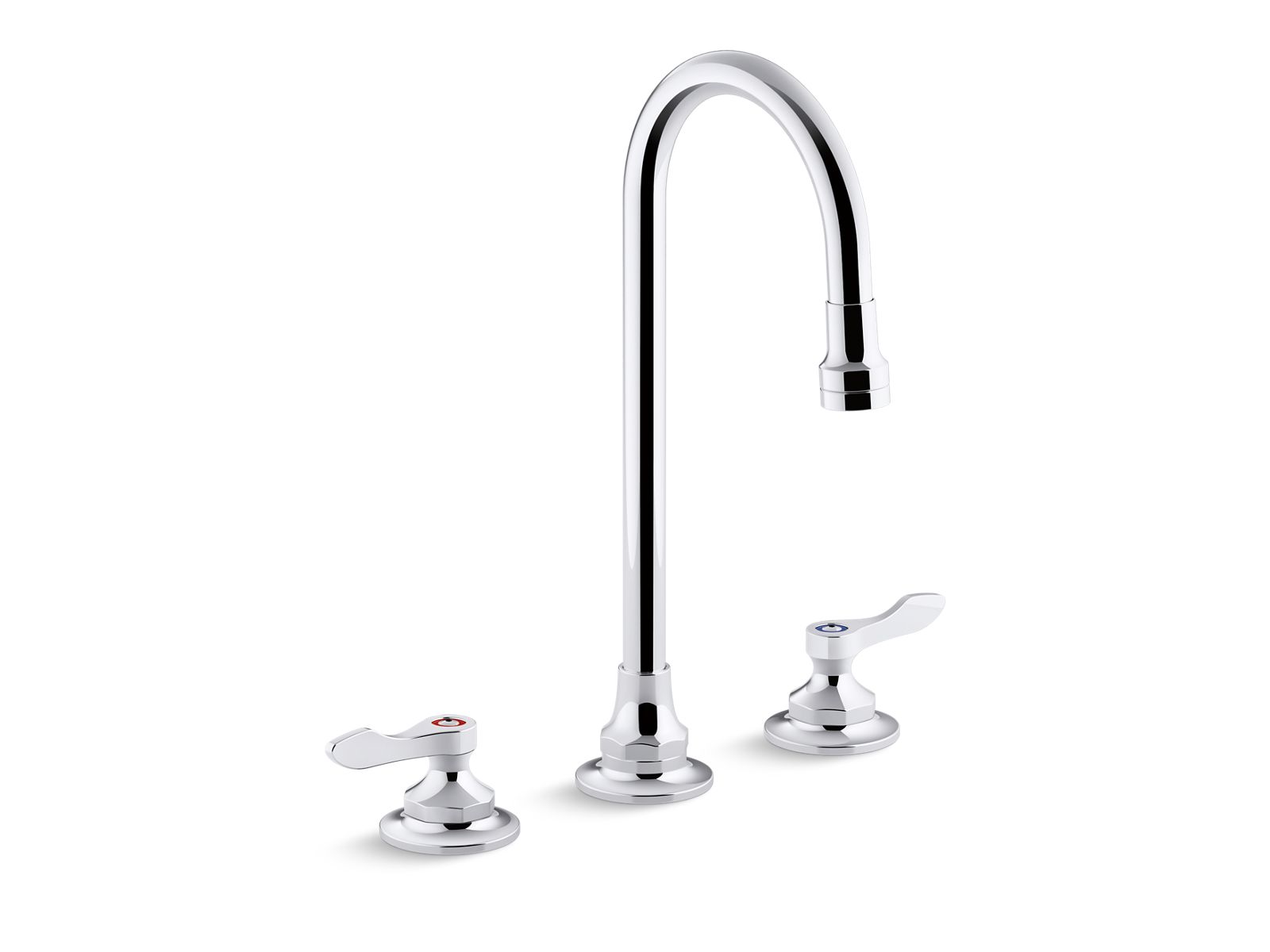

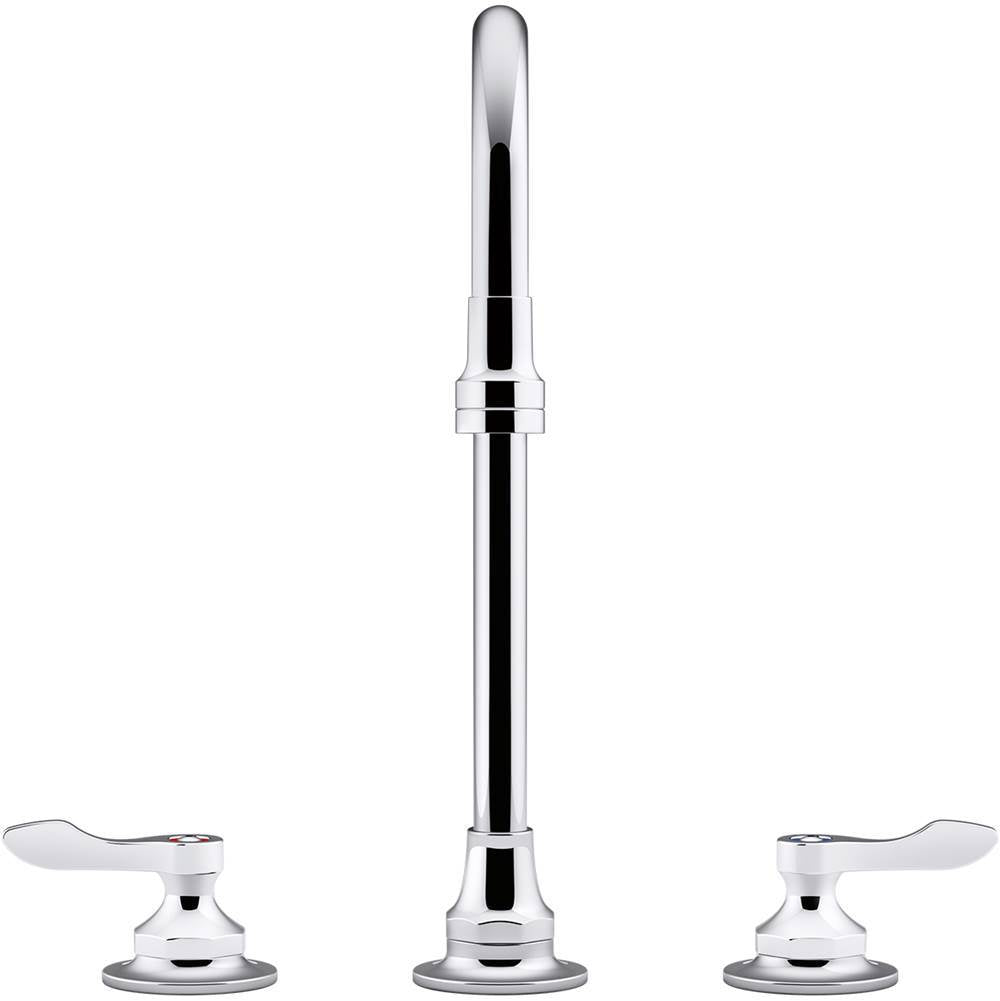

The KOHLER 800T70-4ANA-CP Triton Bowe faucets deliver solid brass construction at an exceptional value. This widespread faucet features a gooseneck spout, two lever handles, a quarter-turn ceramic valve, and a vandal-resistant aerator. Designed with a sleek, contemporary curved profile, this faucet is ideal for bathroom sink applications.

• Brass construction and valve bodies
• Vandal-resistant aerated flow
• Quarter-turn washerless ceramic disc valves

Product Highlights

The widespread faucet is easy to install with 8" - 16" centers. Dual handles control the flow and temperature of water.

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 800T70-4ANA-CP
• Country of Origin: US

Technical Specifications

• Spout Height: 7.5625 in.
• Flow Rate: 0.5 gpm (1.9 lpm) maximum flow rate at 60 psi (4.14 bar)
• Installation: For 8" – 16" (203 – 406 mm) centers
• Faucet Centers: 9, 16, 8, 14, 11, 15, 12, 13, 10 in.
• Faucet Hole Size: 1.125 in.
• Flow Rate (GPM): 0.5
• Height: 12.63"
• Max Deck Thickness: 1.5625 in.
• Spout Reach: 5.1875 in.
• Water Connection: 1/2"
• Shape: Mid Arc
• Items Included: Goosneck Widespread Faucet
• Number of Faucet Handles: 2
• MPN: 800T70-4ANA-CP
• Suitable For: Bathroom Sink
• Faucet Hole Spacing: 8 in
• Faucet Mounting Type: Wide-Spread
• Labels & Certifications: WaterSense, Low Lead Compliant
• Number in Pack: 1
• Manufacturer: Kohler
• Style: Modern
• Handle Type: Lever
• Room: Bathroom
• Finish: Polished Chrome
• Material: Brass
• California Prop 65 Warning: Yes
• Brand: Kohler
• Type: Bathroom Sink Faucet
• Number of Faucet Holes: 3
• Assembly Required: Yes
• Model: 800T70-4ANA-CP
• Product Line: Kohler Triton Bowe
• Product Type: Widespread Bathroom Sink Faucet
• Length: 5.19"
• Width: 16"
• Collection: Triton Bowe
• Introduction Date: 12/22/2016
• Low Lead Compliant: Yes
• Valve Type: Ceramic disc
• Mounting: Widespread
• ADA: Yes
• Handles: 2
• CEC: Yes
• CALGreen: Yes
• Application: Commercial
• Asme Specification: ASME A112.18.1/CSA B125.1
• Connection Size: 3/8
• Connection Size Uom: inches
• Doe Energy Efficiency Act: Yes
• Nsf Standard: NSFANSICAN61;NSFANSICAN372
• Ul Listed: NSF/ANSI/CAN 61|NSF/ANSI/CAN 372
