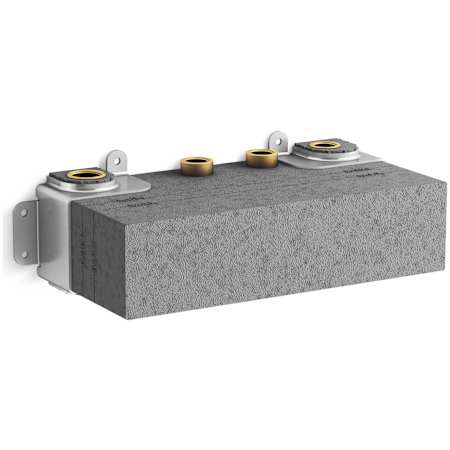

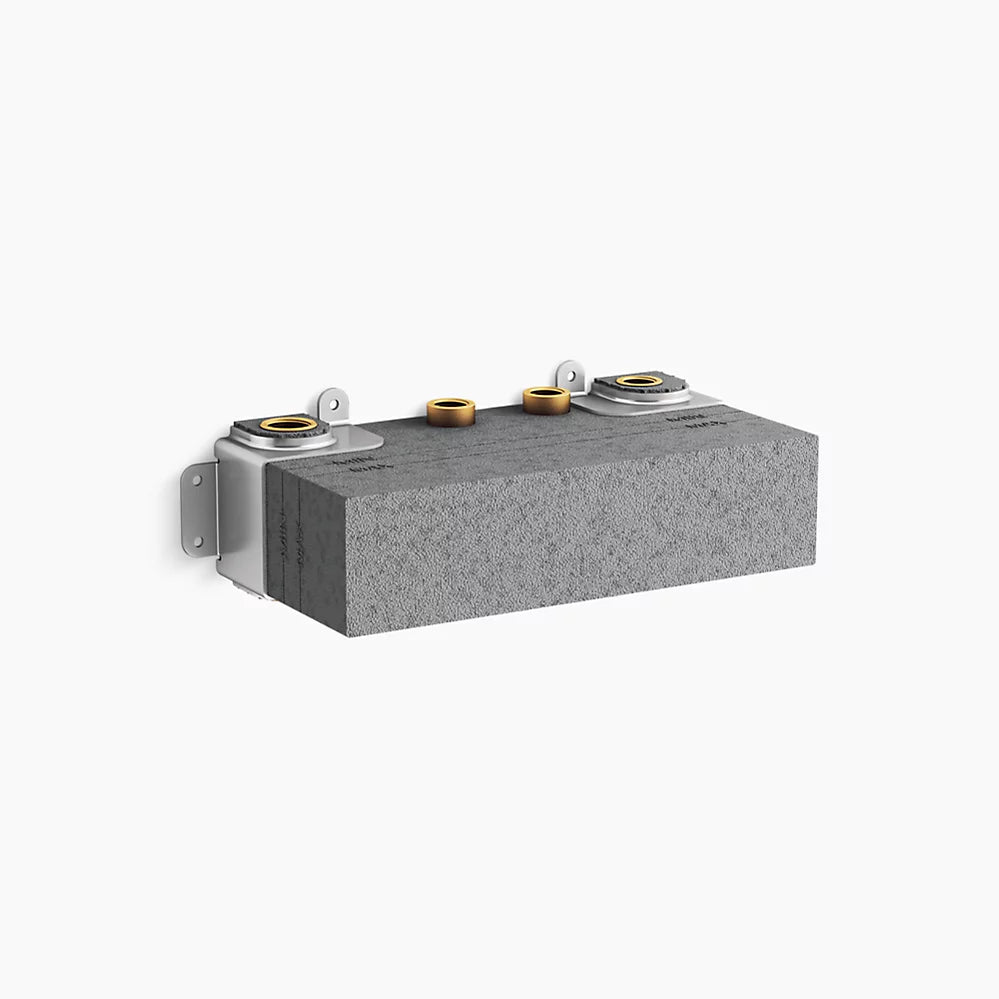

Kohler 39014-NA Anthem Three-port recessed mechanical thermostatic valve

Product Description

The KOHLER 39014-NA Anthem thermostatic technology allows consistent temperature control in your showering system. This precision-engineered thermostatic valve comes mostly assembled for easy installation and is designed for use with the thermostatic valve control panel trim with recessed push-buttons. With three independently controllable ports, this valve is suited for applications where up to three outlets are required.

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
• Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet

Product Highlights

The KOHLER Anthem valve features a cast dezincification-resistant brass body, antiscald protection, and service stops with integral filters.

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 39014-NA
• Country of Origin: China

Technical Specifications

• Material: Cast dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
• Installation: Requires three-outlet thermostatic valve control panel trim with recessed push buttons (sold separately)
• Mounts within standard: 2" x 4" (38 x 102 mm) walls
• Fully-serviceable: from the front of the valve
• Number Of Ports: 3
• Scald Guard: Yes
• Valve Type: Thermostatic
• Water Connection Type: FNPT, MNPT
• Approved for Commercial Use: Yes
• Certifications: ASME, ASSE, CSA
• Water Connection: 1/2" NPT, 3/4" NPT
• Service Stops Included: Yes
• Set Name: Anthem
• Model Name: KOHLER
• Specification Met: ASME ANSI NSF
• Connector Type: Threaded
• Brand: Kohler
• Size: 13.96 x 6.1 x 4.88 inches
• Part Number: 39014 NA
• Style: Anthem
• Manufacturer: Kohler Plumbing
• Model Number: 39014 NA
• Item Name: Kohler 39014 NA Anthem Three port recessed m
• Exterior Finish: Stainless Steel
• MPN: Not Offered
• Model: KOHLER
• Type: Not Offered
• Item Width: Not Offered
• Item Height: Not Offered
• Item Length: Not Offered
• UPC: 195711260758
