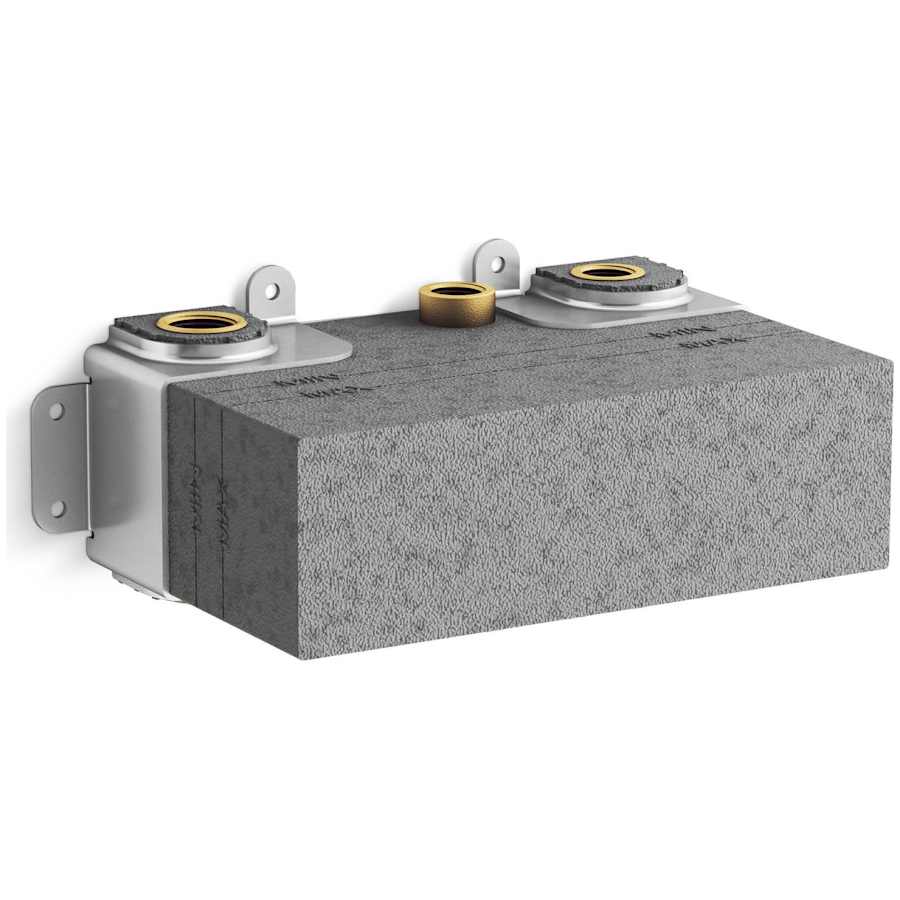

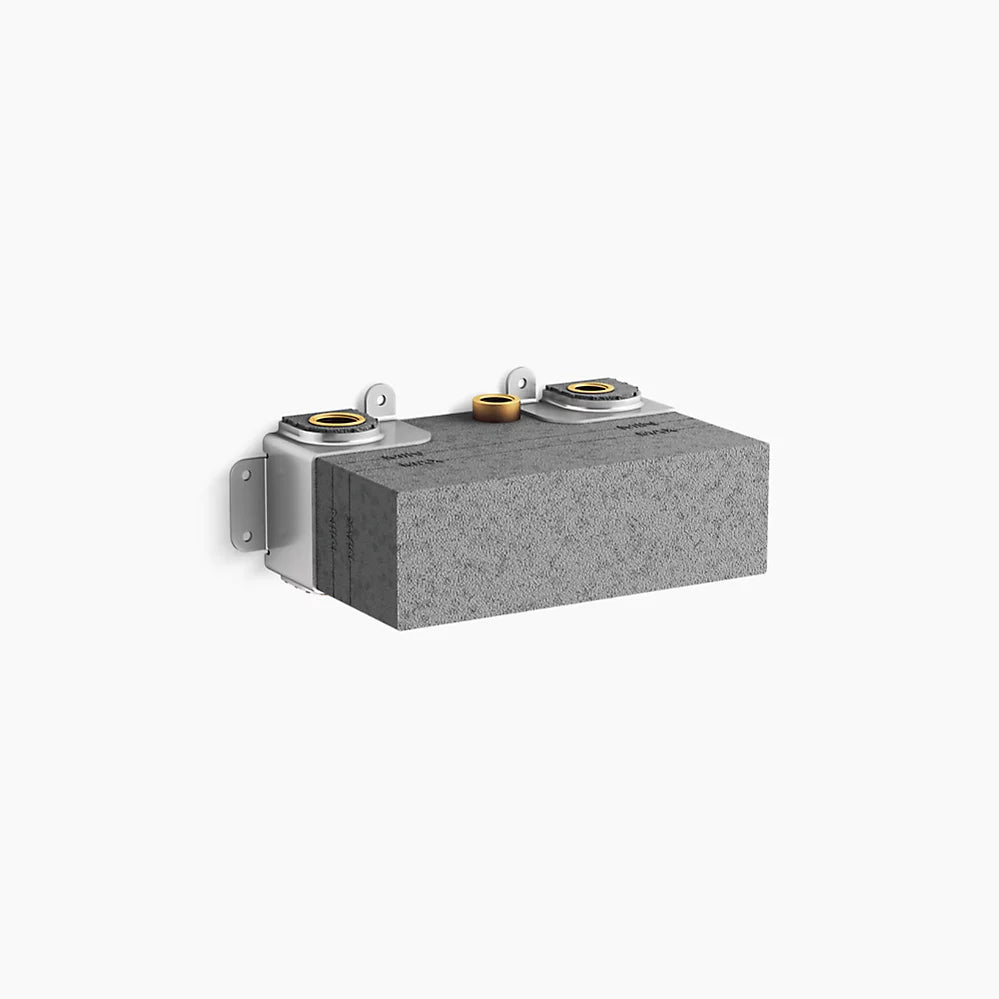

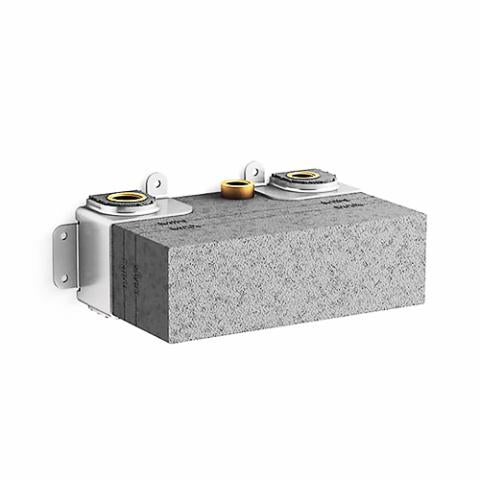

Kohler 39013-NA Anthem Two-port recessed mechanical thermostatic valve

Product Description

The KOHLER 39013-NA Anthem two-port recessed mechanical thermostatic valve maintains consistent temperature control for showering. This thermostatic valve comes mostly assembled for easy installation and is designed for use with a thermostatic valve control panel trim with recessed push-buttons. With two independently controllable ports, this valve is suited for applications where one or two shower outlets are required.

• Maintains outlet temperature throughout shower experience
• Features 3/4" female NPT inlet and 1/2" female NPT outlet connections
• Cast dezincification-resistant brass body provides long term reliability

Product Highlights

The KOHLER Anthem thermostatic valve is a precision-engineered valve with two ports, ideal for shower systems needing consistent temperature control.

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 39013-NA
• Country of Origin: China

Technical Specifications

• Material: Cast dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
• Installation: Requires two-outlet thermostatic valve control panel trim with recessed push buttons (sold separately)
• Mounts within: standard 2" x 4" (38 x 102 mm) walls
• Serviceability: Fully-serviceable from the front of the valve
• Brand: Kohler
• Exterior Finish: Brass
• Maximum Operating Pressure: 3.1 Bars
• Number of Ports: 2
• Specification Met: ANSI B1.20.1, ANSI B16.11, ASSE, CE, CSA, FM, IAPMO, NSF, OSHA, UL, UPC, WaterSense
• Manufacturer: Kohler Plumbing
• Part Number: 39013-NA
• Item model number: 39013-NA
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Flow Rate: Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
• Inlet Connections: 3/4" female NPT inlet connections
• Outlet Connections: 1/2" female NPT outlet connections
• Service Stops: Service stops with integral filters
• Antiscald protection: Integrated adjustable high-temperature limit stop to control maximum water temperature
• Comfort Setting: Adjustable comfort setting (preset at approximately 104°F)
• Flow Restrictor: Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Service Stops Included: Yes
• Scald Guard: Yes
• Valve Type: Thermostatic
• Water Connection Type: FNPT, MNPT
• Approved for Commercial Use: Yes
• Certifications: ASME, ASSE, CSA
• Features: Easy Installation, Adjustable
• Accessories: Optional Flow Restrictor
• Model: 39013-NA
• Construction Material: Brass
• Maximum Flow Rate: 8 gpm
• Inlet Connection: 3/4" NPT female
• Outlet Connection: 1/2" NPT female
