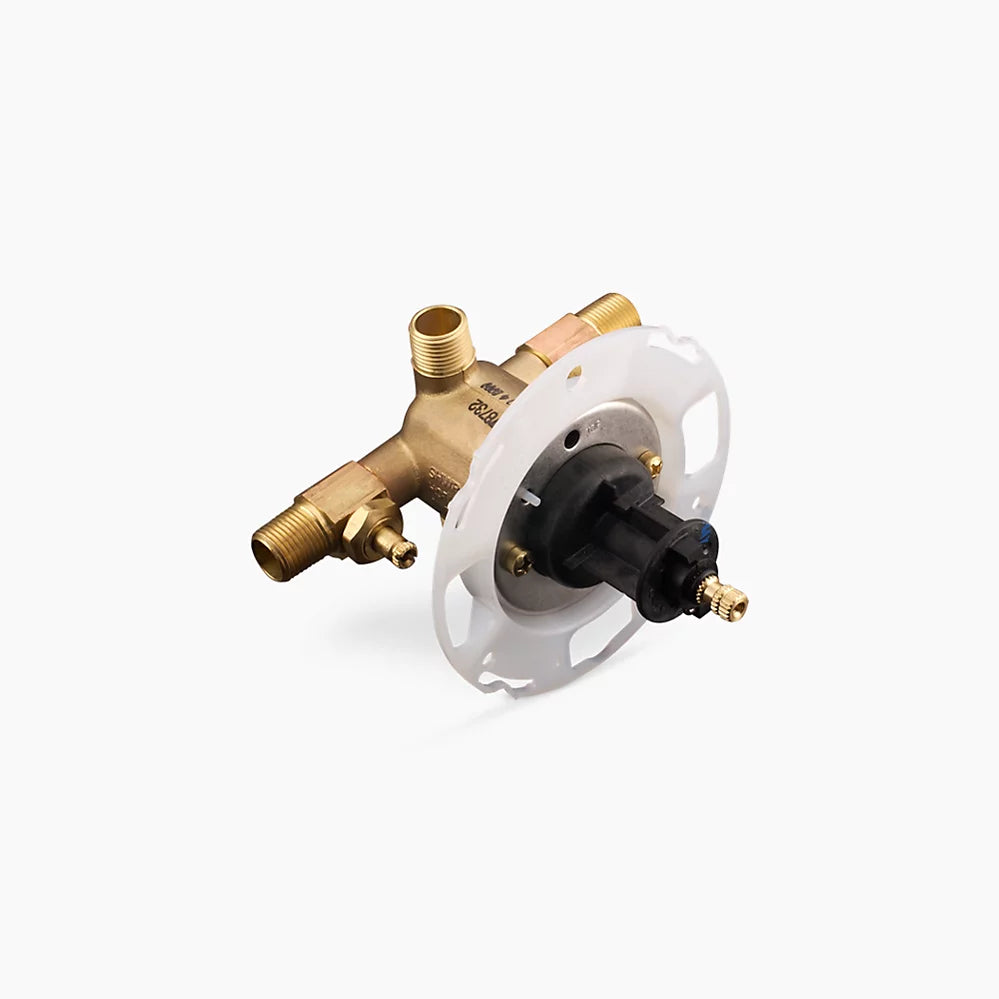

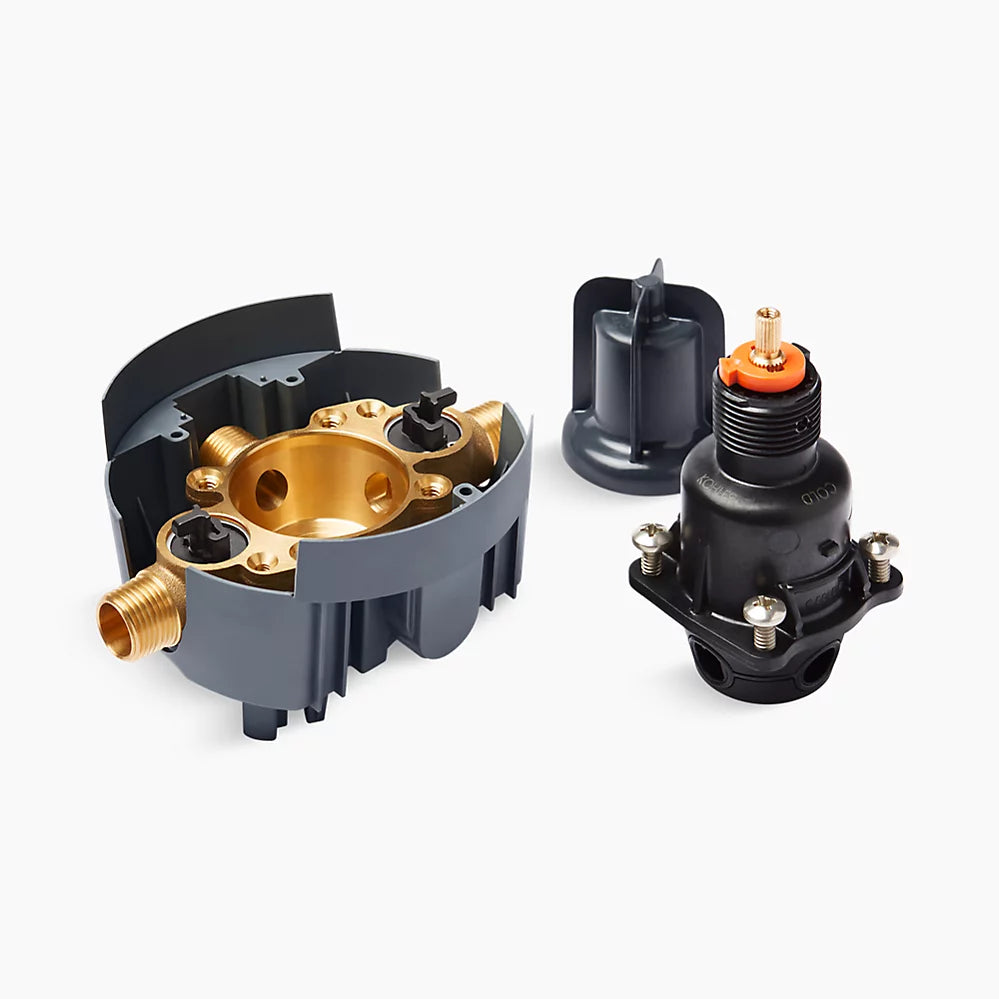

Kohler 304KSNA Rite-Temp 1/2 inches Pressure-Balancing Valve

Product Description

The KOHLER 304KSNA Rite-Temp pressure-balancing valve prevents scalding and thermal shock. The valve system simplifies plumbing projects and provides flexibility for future changes. The Rite-Temp valve platform uses pressure-balancing technology to provide anti-scald protection and temperature control for showering comfort.

• Mixing valve cycles from "cold" to "hot"
• Rite-Temp pressure-balancing diaphragm design
• Rite-Temp pressure-balancing technology maintains water temperature within +/- 3
• Antiscald protection

Product Highlights

The KOHLER Rite-Temp valve system offers easy installation and long-term reliability. It provides anti-scald protection and temperature control for enhanced showering comfort.

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 304KSNA

Technical Specifications

• Material: Brass
• Brand: Kohler
• Inlet Connection Size: 1/2 Inches
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: Sweat
• Maximum Operating Pressure: 45 Pound per Square Inch
• Outlet Connection Size: 0.5 Inches
• Specification Met: ASME, ASSE
• Thread Type: NPT
• Connector Type: Plumbing Connector
• Thread Size: 1/2 inches
• Valve Type: Pressure-Balancing Valve
• Size: One Size (Single Unit)
• Item Weight: 1.4 Pounds
• Item Type Name: Valve Body
• Unit Count: 1.0 Count
• Included Components: Product Only
• Maximum Flow Rate: 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
