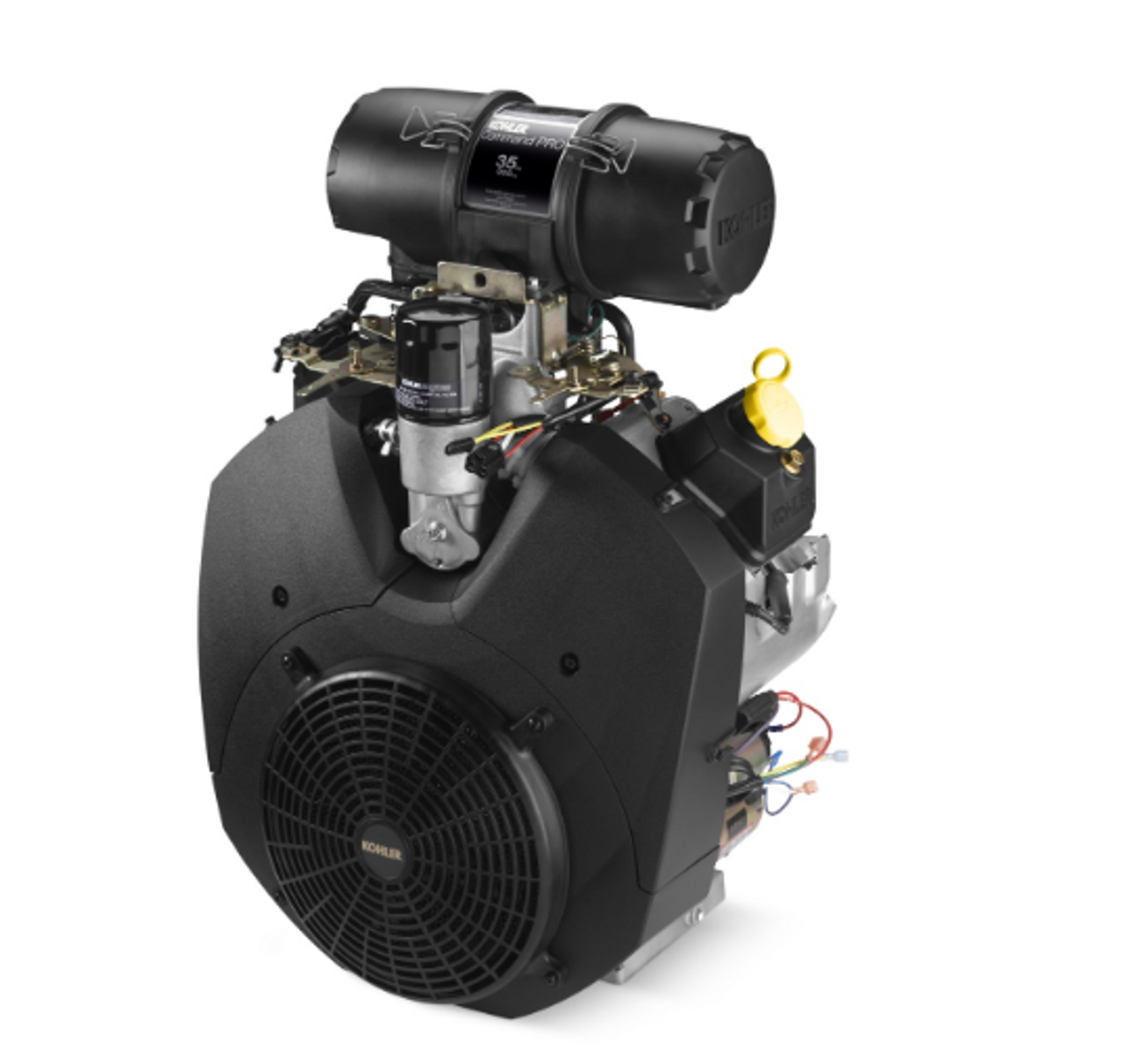

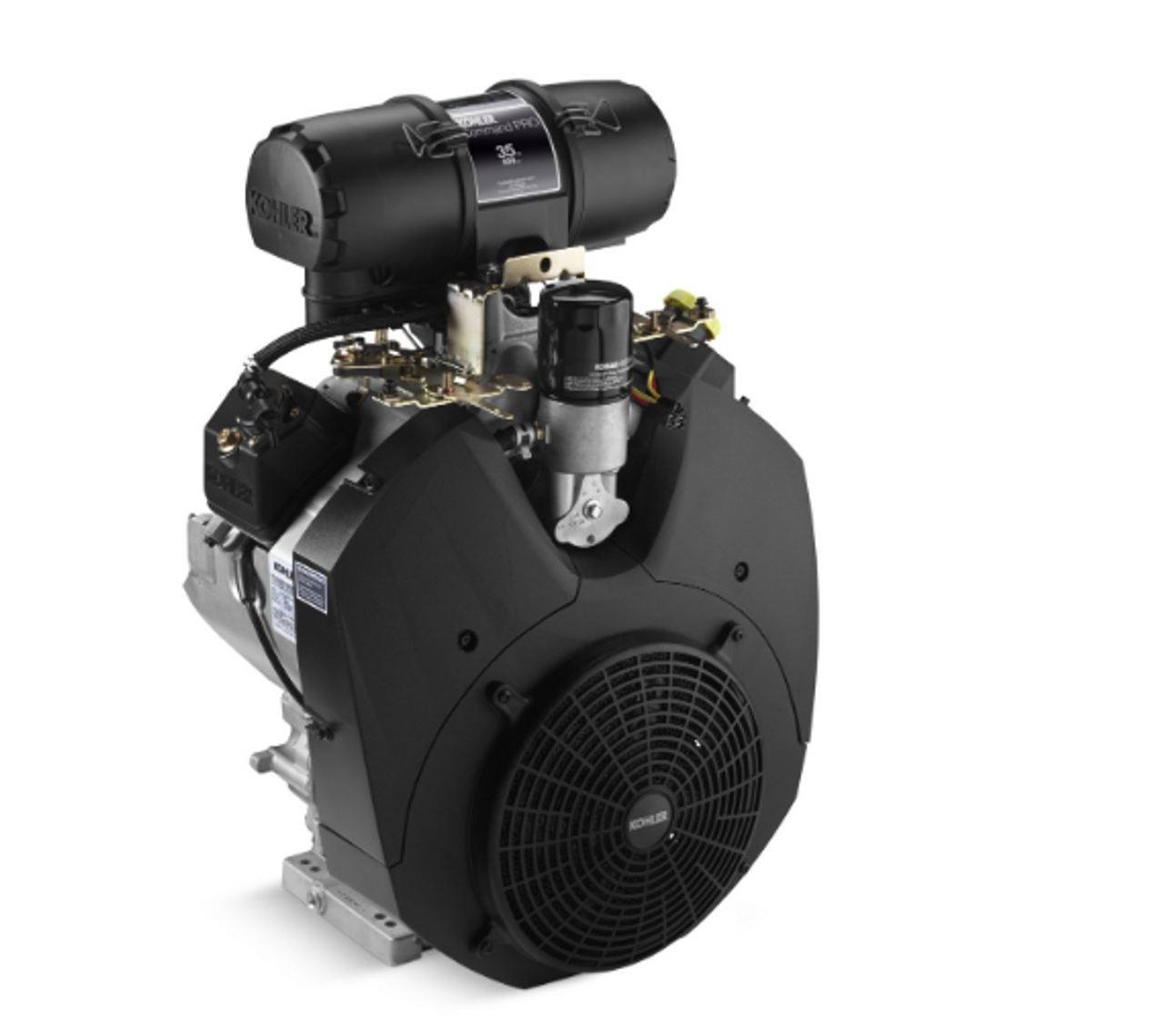

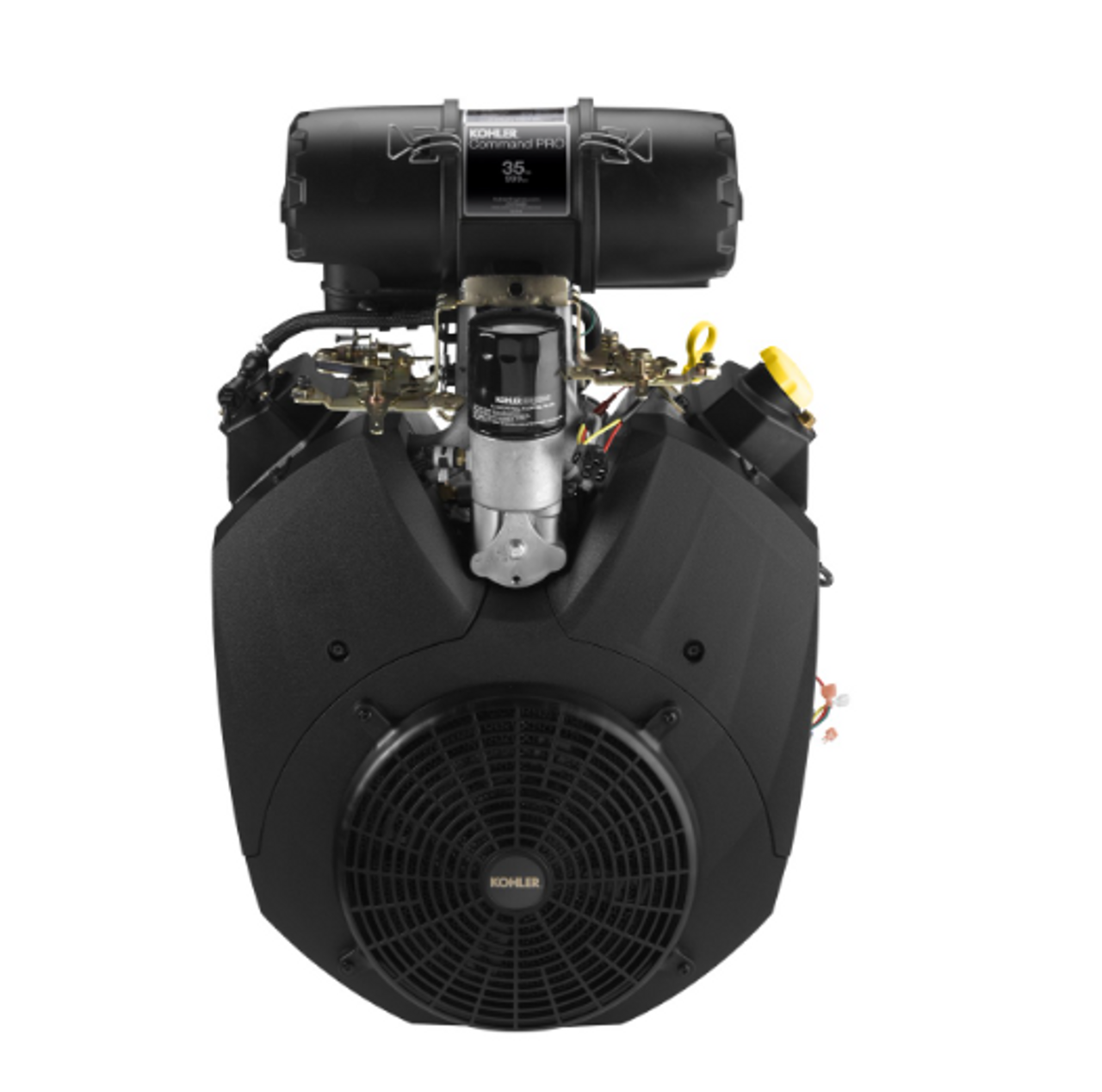

KOHLER 281690 CH940S E2 Medart - Timberking Engine

Product Description

The KOHLER 281690 CH940S E2 Medart - Timberking is a reliable commercial-grade engine designed for demanding applications. This engine features a displacement of 999 cm3, equating to sixty-one cubic inches. The full pressure lubrication system, coupled with a full-flow filter, ensures optimal performance and protection.

• Integrated oil coolers maintain consistent temperatures, promoting engine longevity.
• High-efficiency air filters shield the engine from dirt and debris.
• Extra-large sleeve bearings are designed to support heavy loads.

Product Highlights

This engine is built for commercial use and provides dependable power and efficiency.

Product Information

Standard Information

• Engine Type: Commercial
• Model: CH940

Technical Specifications

• Displacement: 999 cm3 (61 in3)
• Bore: 90 mm (3.5 in)
• Stroke: 78.5 mm (3.1 in)
• Maximum Torque: 73.9 Nm (54.5 lb-ft) at 3200 RPM
• Dry Weight: 59 kg (132 lbs)
• Oil Capacity: 2 L (2.1 US qt)
• Compression Ratio: 8.8:1
• Lubrication: Full pressure with full-flow filter
• Dimensions: 388 x 484 x 699 mm (15.3 x 19.0 x 27.5 in)
