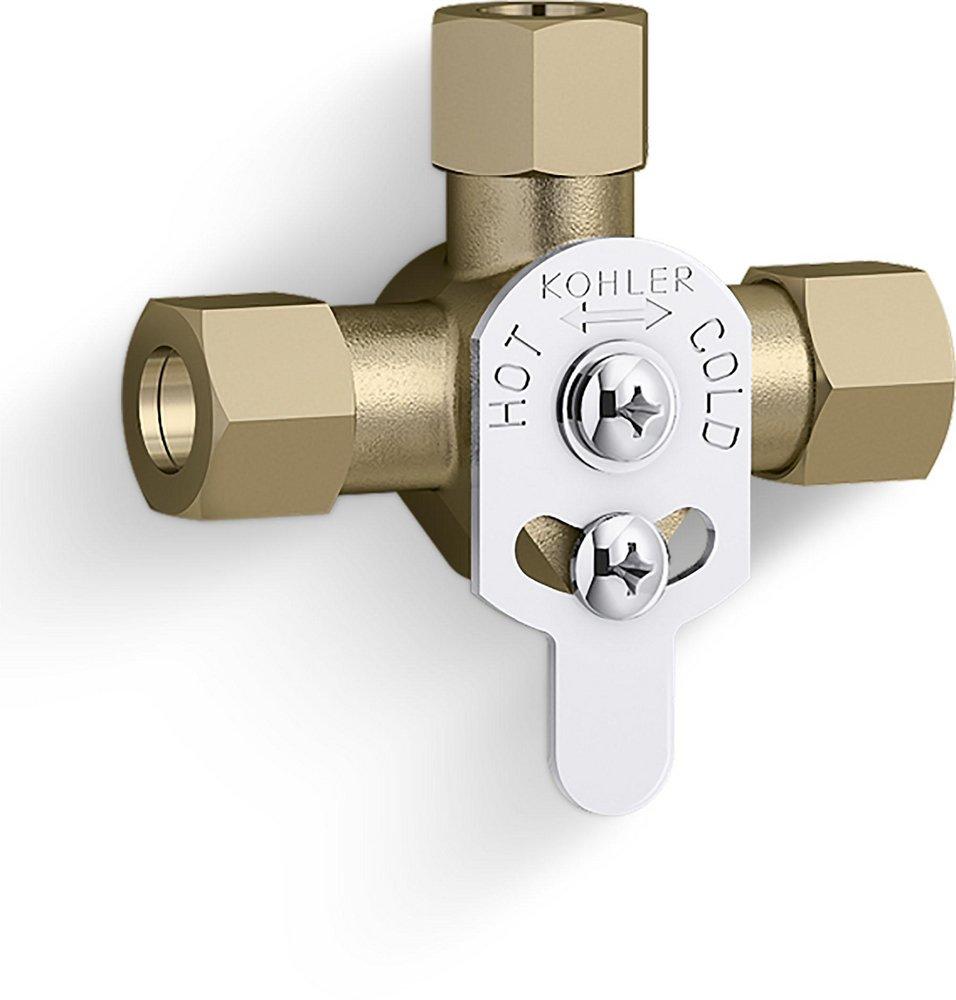

Kohler 24154-RP 3/8 in compression mixing valve (3/8 in inlet x 3/8 in outlet)

Product Description

Kohler 24154-RP is a 3/8 in compression mixing valve that blends hot and cold water to deliver a tempered output. It features built-in check valves to prevent hot-to-cold and cold-to-hot migration, a single lever design with lock screw, and includes compression sleeves and nuts. The cast brass body is rated 60 psi and 3.5 gpm, meets NSF/ANSI 61/372 and Safe Drinking Water Act lead requirements, and is intended for rough-in installation.

• Built-in check valves prevent cross-migration between hot and cold piping; includes compression sleeves and nuts
• 3/8 in compression inlet and outlet; rated for 60 psi pressure and 3.5 gpm flow
• Cast brass body with single lever design and lock screw; meets NSF/ANSI 61/372 and Safe Drinking Water Act (lead) requirements

Product Highlights

3/8 in compression mixing valve; cast brass; 60 psi; 3.5 gpm; NSF/ANSI 61/372

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 24154-RP
• Country of Origin: Unknown

Technical Specifications

• Brand: Kohler
• MPN: 24154-RP
• Part Number: K24154-RP
• Item Number: 7849349
• UPC: 885612758798
• Body Material: Cast Brass
• Material: Brass
• Connection Type: Compression
• Inlet Connection: 3/8 in
• Outlet Connection: 3/8 in
• Flow Rate: 3.5 gpm
• Pressure Rating: 60 psi
• Finish: Rough Plate
• Certifications: NSF/ANSI 61/372; Safe Drinking Water Act (Lead); CSA Approved; US Federal and State Material Regulations
• Series: 24154
• Commercial/Residential: Commercial
• Overall Height: 3-3/8 in
• Overall Length: 3-3/16 in
• Overall Width: 1-3/16 in
