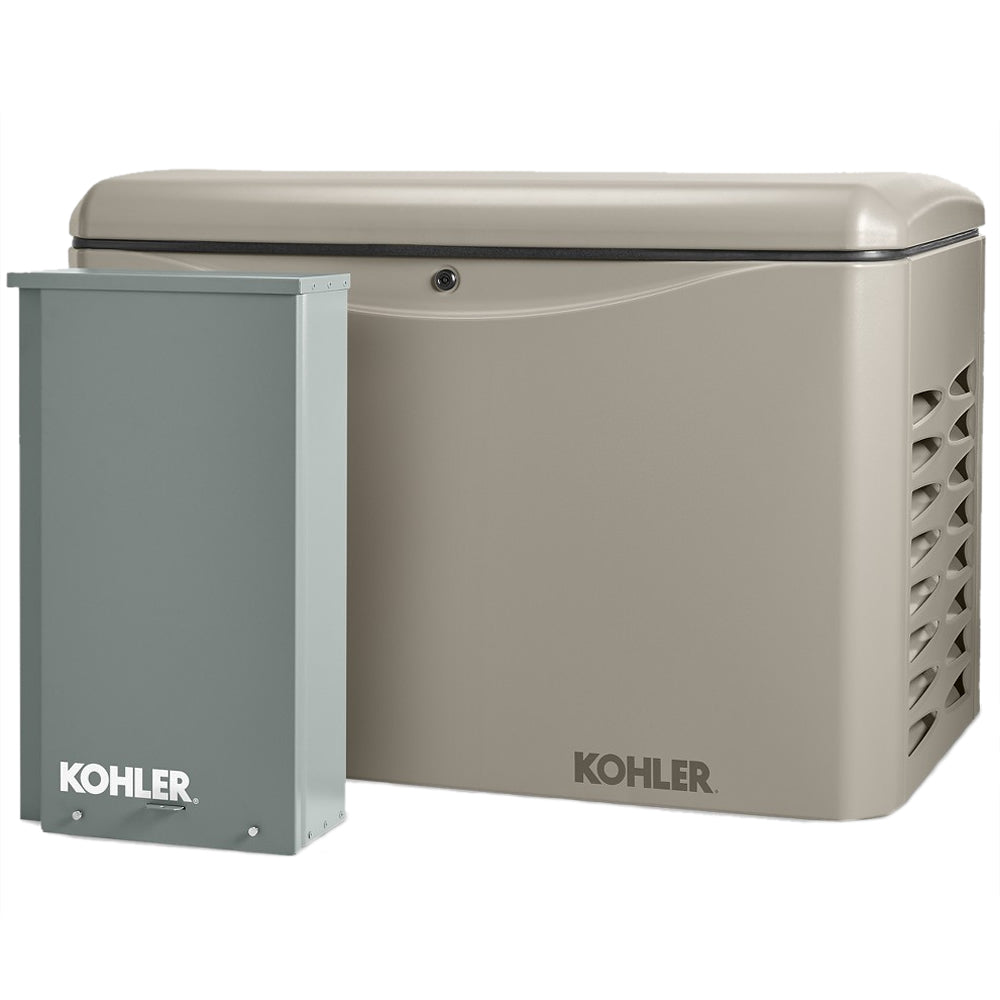

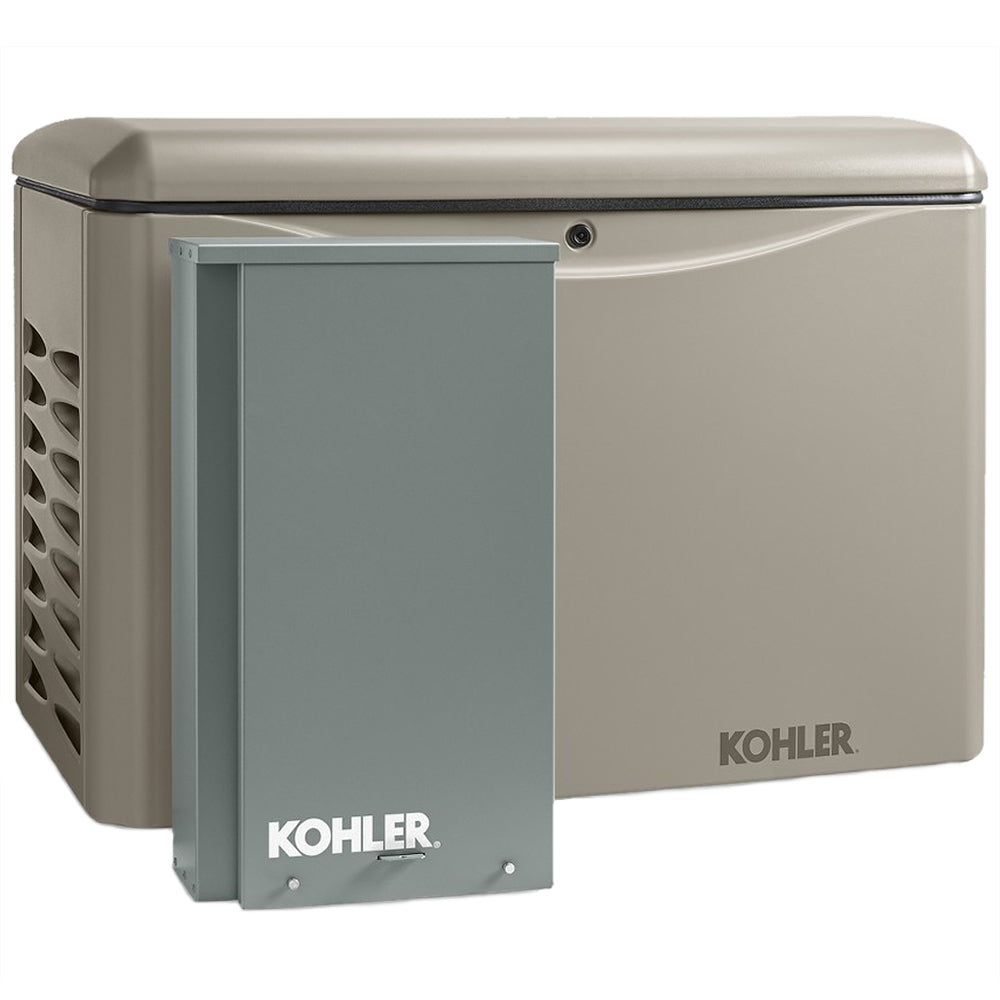

Kohler 20RCAL-200SELS Aluminum Standby Generator System 20kW 200A Service Disconnect with Load Shedding

Product Description

The KOHLER 20RCAL-200SELS is a 20kW aluminum standby generator system designed for emergency power. This air-cooled unit operates at 3600 RPM, providing 120/240 single-phase voltage at 60 Hertz. It supports both LP and natural gas fuel types, with a 200A service disconnect and built-in load shedding. The system includes an automatic transfer switch and is UL listed, ensuring reliable power restoration in as little as 10 seconds. Its aluminum enclosure is NEMA 3R rated and meets 181 MPH wind resistance.

• Fully automatic operation with an included 200A service entrance rated automatic transfer switch.
• Manages up to two HVAC units and four non-essential loads with built-in load shedding.

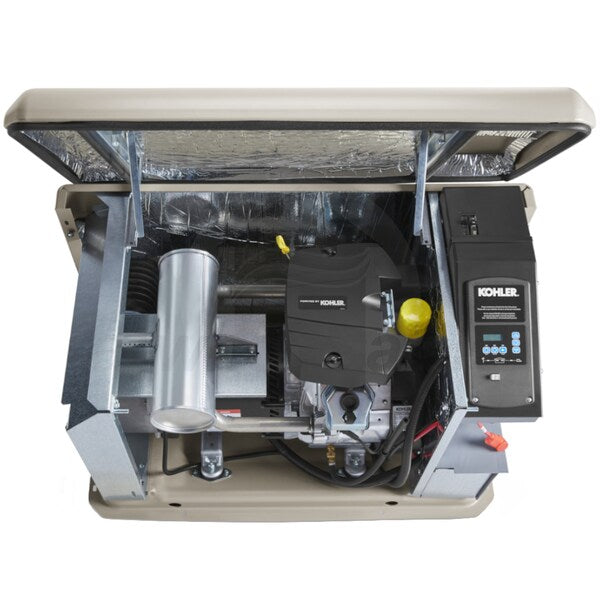

• Features a Kohler Command PRO OHV Engine and maintains quiet operation at 69 dB(A) at 7m.

Product Highlights

Restores power in as little as 10 seconds, features a corrosion-proof aluminum enclosure

Product Information

Standard Information

• Brand: KOHLER
• Manufacturer Part Number: 20RCAL-200SELS
• Country of Origin: USA

Technical Specifications

• Engine Displacement: 999 CC
• Auto Transfer Switch: RXT - 200A Service Disconnect
• Engine RPM: 3600 RPM
• Engine Brand: Kohler
• Battery Requirement: 500 CCA (Not Included)
• Voltage: 120/240 Single-Phase
• Starting System: 12V Auto Start
• Product Type: Standby Generator
• Width: 26.2 Inches
• CARB Compliant: Yes
• Height: 32.2 Inches
• Length: 47 Inches
• Enclosure Material: Aluminum
• Frequency: 60 Hertz
• Fuel Type: LP/Natural Gas
• UL Listed: Yes
• Grade Type: Emergency
• Rated Amperage: 83 Amps
• Product Category: Generator - Standby
• Rated Power (Watts): 20000 Watts
• A/C Ton Rating: 2 x 5-Tons
• Cooling System: Air Cooled
• Low Oil Alert/Shutdown: Yes
• Transfer Switch Type: Automatic (Included)
• ATS Load Shedding: Built-In
• LP Power Capacity: 20000 Watts
• NG Power Capacity: 18000 Watts
• Noise Level @ 7m: 69 Run (64 Test) dbA
• ATS Load Prioritizing: Built-In
• Transfer Switch Style: Service Disconnect
• ATS Service Disconnect: Yes
• Transfer Switch Amperage: 200 Amps
• LP Fuel Consumption @ 50% Load: 2.3 gallons/hr
• NG Fuel Consumption @ 50% Load: 161 ft³/hr
• LP Fuel Consumption @ 100% Load: 3.9 gallons/hr
• NG Fuel Consumption @ 100% Load: 281 ft³/hr
