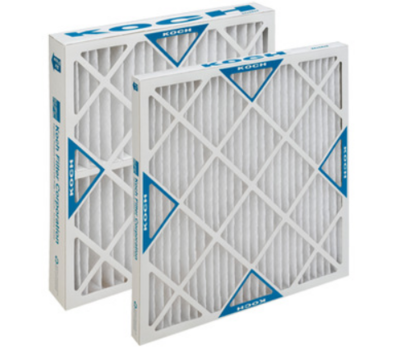

Koch Filter MT90/95 Multi-Pleat 16 x 25 x 1 in. MERV 8 Synthetic Extended Surface Pleated Panel Air Filter Mechanical Media

Product Description

The Koch Filter MT90/95 Multi-Pleat 16 x 25 x 1 inch MERV 8 Synthetic Extended Surface Pleated Panel Air Filter is a medium efficiency filter that offers greater performance than standard pleated filters. It is designed for use in various environments where higher indoor air quality is needed.

• Upgrade from standard pleated filters
• Low resistance to airflow
• High dust holding capacity

Product Highlights

This filter features mechanical MERV 8 media that does not rely on electrostatic charge for efficiency. It has a sturdy double-wall frame and a moisture-resistant beverage board frame, making it durable and reliable.

Product Information

Standard Information

• Brand: Koch Filter
• MPN: MT90/95
• Product Name: Multi-Pleat 16 x 25 x 1 in. MERV 8 Synthetic Extended Surface Pleated Panel Air Filter with Mechanical Media

Technical Specifications

• UPC: 950053204651
• Depth: 3/4 in.
• Width: 24-1/2 in.
• Height: 15-1/2 in.
• Weight: 12 lb.
• Includes: Frame
• Frame Type: Moisture-Resistant Double Wall Die Cut Beverage Board
• Media Area: 4.7 sq ft
• Filter Size: 16 x 25 x 1 in.
• MERV Rating: 8
• Selling Size: 16 x 25 x 1 in.
• Air Flow Rate: 840 CFM
• Catalog Number: MT90/95
• Final Resistance: 1 in. WG
• Maximum Velocity: 300 FPM
• Initial Resistance: 0.26 in. WG
• Specifications Met: ASHRAE 52.2-2012, cUL Listed, UL 900 Listed
• Air Filter Media Type: Synthetic
• Maximum Operating Temperature: +200 deg F
