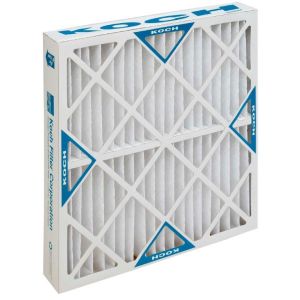

Koch Filter 102-700-050 Multi-Pleat XL8-SC Fiber MERV 8 Extended Surface Standard Capacity Pleated Panel Filter 25 x 25 x 2 in.

Product Description

The KOCH FILTER 102-700-050 Multi-Pleat XL8-SC is a medium-efficiency extended surface pleated panel filter. It is engineered to provide higher initial efficiencies and overall superior performance than standard pleated filters. The filter is suitable for hospitals, laboratories, pharmaceutical plants, and commercial office buildings.

• Upgrade from standard pleated filters
• Mechanical MERV 8 media is not reliant on electrostatic charge for efficiency
• Low-resistance to airflow

Product Highlights

This extended surface, standard capacity pleated panel filter has a sturdy double-wall frame design and high dust holding capacity.

Product Information

Standard Information

• Brand: KOCH FILTER
• Manufacturer Part Number: 102-700-050
• Country of Origin: USA

Technical Specifications

• Actual Size: 24-1/2 in W x 24-1/2 in H x 1-3/4 in D
• Air Flow Capacity: 2170 cfm
• Depth: 2 in
• Filter Efficiency: 30 - 35%
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 25 in
• Item Name: Pleated Panel Filter
• MERV: 8
• Media Area: 12.5 sq-ft
• Media Type: Fiber
• Rated Velocity: 300 fpm
• Resistance: 0.27 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL8-SC
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 25 in
• Standards/Certifications: ASHRAE test standard 52.2-2007, UL listed
• Applications: For hospitals, laboratories, pharmaceutical plants, commercial office buildings
• Brand: Koch Filter
• Product Dimensions: 24.5"L x 24.5"W x 1.75"Th
• Number of Items: 12
• Manufacturer: Koch Filter Corporation
• Unit Count: 12.0 Count
• Model Info: ‎102-700-050
• Item model number: ‎102-700-050
• Part Number: ‎102-700-050
• Exact Size: 24-1/2x24-1/2x1-3/4
• Substitute SKU: S1-KF-102-700-050
