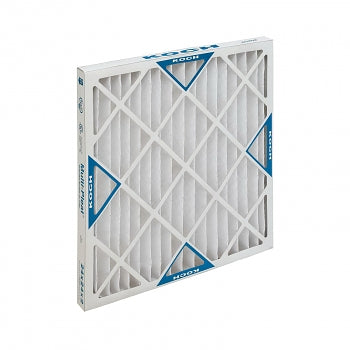

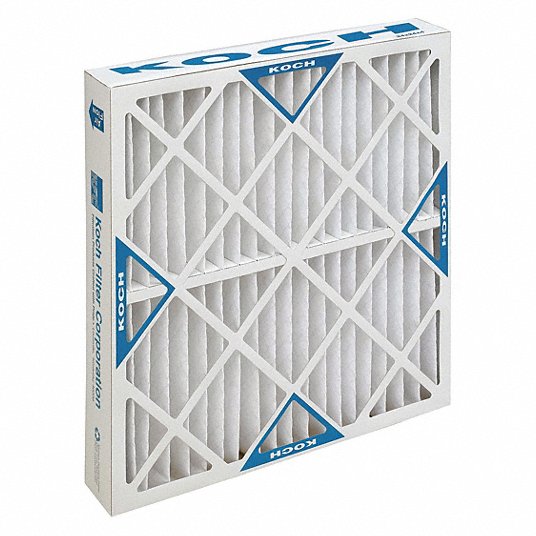

Koch Filter 102-700-031 Multi-Pleat XL8 SC Extended Surface Pleated Panel Filter 24 in H x 24 in W x 4 in D

Product Description

The KOCH FILTER 102-700-031 Multi-Pleat XL8 SC extended surface pleated panel filter is 24 in H x 24 in W x 4 in D. This filter has a MERV 8 rating and can withstand temperatures up to 200 deg F. It features a beverage board frame and 100% synthetic media. Commonly used in hospitals, laboratories, and commercial buildings.

• Upgrade from standard pleated filters
• Mechanical MERV 8 media is not reliant on electrostatic charge for efficiency
• Low resistance to airflow

Product Highlights

The Multi-Pleat XL8 SC filter provides a combination of efficiency, economy, and excellent overall performance for various applications.

Product Information

Standard Information

• Brand: KOCH FILTER
• Manufacturer Part Number: 102-700-031
• Country of Origin: US

Technical Specifications

• Application: Hospitals, Laboratories, Pharmaceutical Plants and Commercial Office Buildings
• Depth: 4 in
• Domestic/Import: Domestic
• Efficiency: 30 to 35%
• Final Resistance: 1 in WG
• Flow Rate: 1200 to 2500 cfm
• Frame Material: Beverage Board
• Height: 24 in
• Initial Resistance: 0.09 to 0.25 in WG
• Media Material: 100% Synthetic
• MERV: 8
• Series: Multi-Pleat XL8 SC
• Temperature Rating: 200 deg F
• Width: 24 in
• Standards/Approval: ASHRAE 52.2-2007|UL 900/cUL Listed|NAFA Standard
• Style - Air Filters: Panel
• Performance Rating (meets or exceeds): MERV 8
• Filter Efficiency - Air Filters: 70 %
• Air Filter Capacity: Standard
• Capacity: Standard
• Common Applications: General Use
• Media Area: 21 sq ft
• Pleats per Linear Foot: 10
• Filters Out: Dust
• Air Flow @ 300 fpm: 1,200 cfm
• Air Flow @ 625 fpm: 2,500 cfm
• Max. Temp.: 200 °F
• Max. Velocity: 625 fpm
• Filter Frame Color: White
• Gasket Location: Downstream Face
• Gasket Material: None
• Nominal Height: 24 in
• Nominal Width: 24 in
• Nominal Depth: 4 in
• Actual Height: 23-3/8 in
• Actual Width: 23-3/8 in
• Actual Depth: 3-3/4 in
• Standards: ISO 9001:2015; UL 900; ULC-S111-07
• Airflow @ 500 fpm: 2,000 cfm
• Final Recommended Resistance: 1 in wc
• Initial Resistance @ 500 fpm: 0.23 in wc
• Product Type: Pleated Air Filter
• Nominal Filter Size (LxWxH): 24 in x 24 in x 4 in
