Product Description

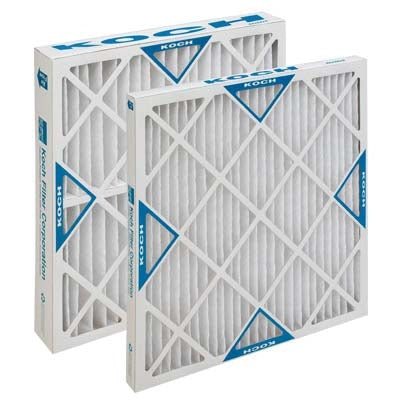

The Koch Filter 102-700-030 is a Multi-Pleat XL8-SC Fiber MERV 8 Extended Surface Standard Capacity Pleated Panel Filter. Designed for use in HVAC systems, it provides superior air filtration performance. This pleated panel filter measures 20 inches by 25 inches by 4 inches.
- Medium-efficiency pleated panel filter
- Mechanical MERV 8 media
- Extended surface standard capacity
Product Highlights
The Koch Multi-Pleat XL8 is engineered to deliver higher initial efficiencies and superior overall performance compared to other standard pleated filters. It ensures efficient filtration without reliance on electrostatic charge and has a high dust holding capacity. It's perfect for environments requiring efficient and reliable air filtration.
Product Information
Standard Information
-
Brand: Koch Filter
-
Manufacturer: Koch Filter Corporation
-
Part #: AF20254P40
-
UPC: 950053501552
Technical Specifications
-
Actual Size: 19-1/2 in W x 24-1/2 in H x 3-1/2 in D
-
Air Flow Capacity: 1740 cfm
-
Depth: 4 in
-
Filter Efficiency: 30 - 35%
-
Frame Type: Double Wall, Moisture-Resistant Beverage Board
-
Height: 25 in
-
Item Name: Pleated Panel Filter
-
MERV: 8
-
Media Area: 18.1 sq-ft
-
Media Type: Fiber
-
Rated Velocity: 300 fpm
-
Resistance: 0.24 in-WG Initial, 1 in-WG Final
-
Sub Brand: Multi-Pleat XL8-SC
-
Temperature Rating: 200 deg F
-
Type: Extended Surface, Standard Capacity
-
Width: 20 in
