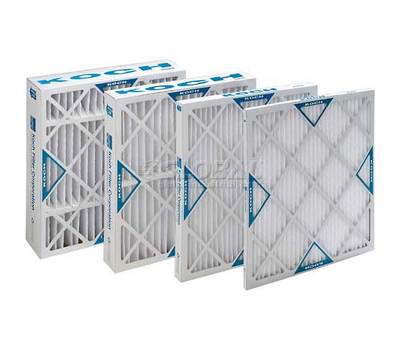

Koch Filter 102-700-026 Multi-Pleat XL8 MERV 8 Pleated Air Filter 16x25x4 Inch

Product Description

Koch Filter 102-700-026 is a MERV 8 pleated air filter designed for higher performance in capturing dust and other particles. It features a fiber media and a sturdy double-wall frame, ideal for improving indoor air quality in settings like hospitals and offices.

• Designed with mechanical MERV 8 media, enhancing efficiency without relying on electrostatic charge.
• Features low resistance to airflow, ensuring optimal performance.
• Equipped with a high dust holding capacity, increasing the time intervals between changes.

Product Highlights

This filter model from Koch Filter is specifically engineered to meet the requirements of environments with stringent air quality standards. Its solid build and extended filtration surface make it suitable for a variety of commercial applications.

Product Information

Standard Information

• Brand: Koch Filter
• MPN: 102-700-026

Technical Specifications

• Dimensions: 16 inches width x 25 inches height x 4 inches depth
• Air Flow Capacity: 1400 CFM
• Filter Efficiency: 30 - 35%
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Media Area: 14.2 sq-ft
• Rated Velocity: 300 FPM
• Resistance: 0.24 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL8-SC
• Temperature Rating: 200 degrees Fahrenheit
• Standards/Certifications: ASHRAE test standard 52.2-2007, UL listed
• Applications: Suitable for hospitals, laboratories, pharmaceutical plants, and commercial office buildings
