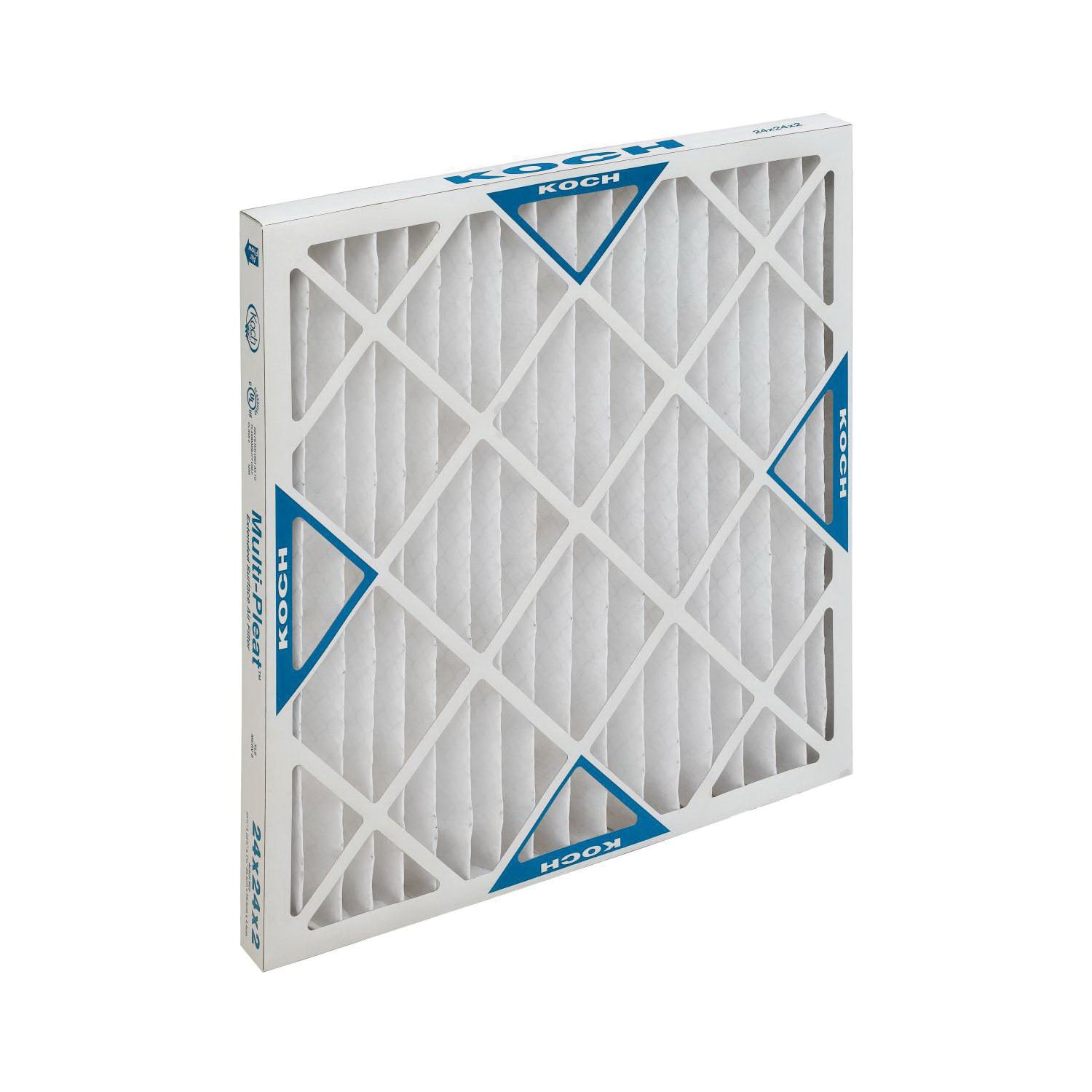

Koch Filter 102-700-022 Multi-Pleat XL8 SC Extended Surface Pleated Panel Filter 24Hx24Lx2W (Pack of 12)

Product Description

The Koch Filters 102-700-022 Multi-Pleat XL8 is a medium efficiency extended surface pleated panel filter, engineered for superior performance. It has a MERV 8 and MERV 8-A efficiency per ASHRAE Test Standard 52.2-2017. The filter's nominal size is 24 x 24 x 2 inches and the actual size is 23.5 x 23.5 x 1.75 inches.

• MERV 8 Performance
• Nominal size: 24 x 24 x 2
• Actual size: 23.5" x 23.5" x 1.75"

Product Highlights

The Koch Multi-Pleat XL8 filter provides higher initial efficiencies and overall superior performance than standard pleated filters.

Product Information

Standard Information

• Brand: KOCH FILTER
• Manufacturer Part Number: 102-700-022
• Country of Origin: USA

Technical Specifications

• Nominal size: 24 x 24 x 2
• Actual size: 23.5" x 23.5" x 1.75"
• MERV Rating: 8
• Air Flow Capacity: 2000 cfm
• Depth: 2 in
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 24 in
• Item Name: Pleated Panel Filter
• Media Area: 11.4 sq-ft
• Media Type: Fiber
• Rated Velocity: 300 fpm
• Resistance: 0.27 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL8-SC
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 24 in
• Final Resistance: 1 in WG
• Flow Rate: 1200 to 2500 cfm
• Frame Material: Beverage Board
• Initial Resistance: 0.14 to 0.34 in WG
• Media Material: 100% Synthetic
• Series: Multi-Pleat XL8 SC, Multi-Pleat XL8™ SC
• Domestic/Import: Domestic
• Efficiency: 30 to 35%
