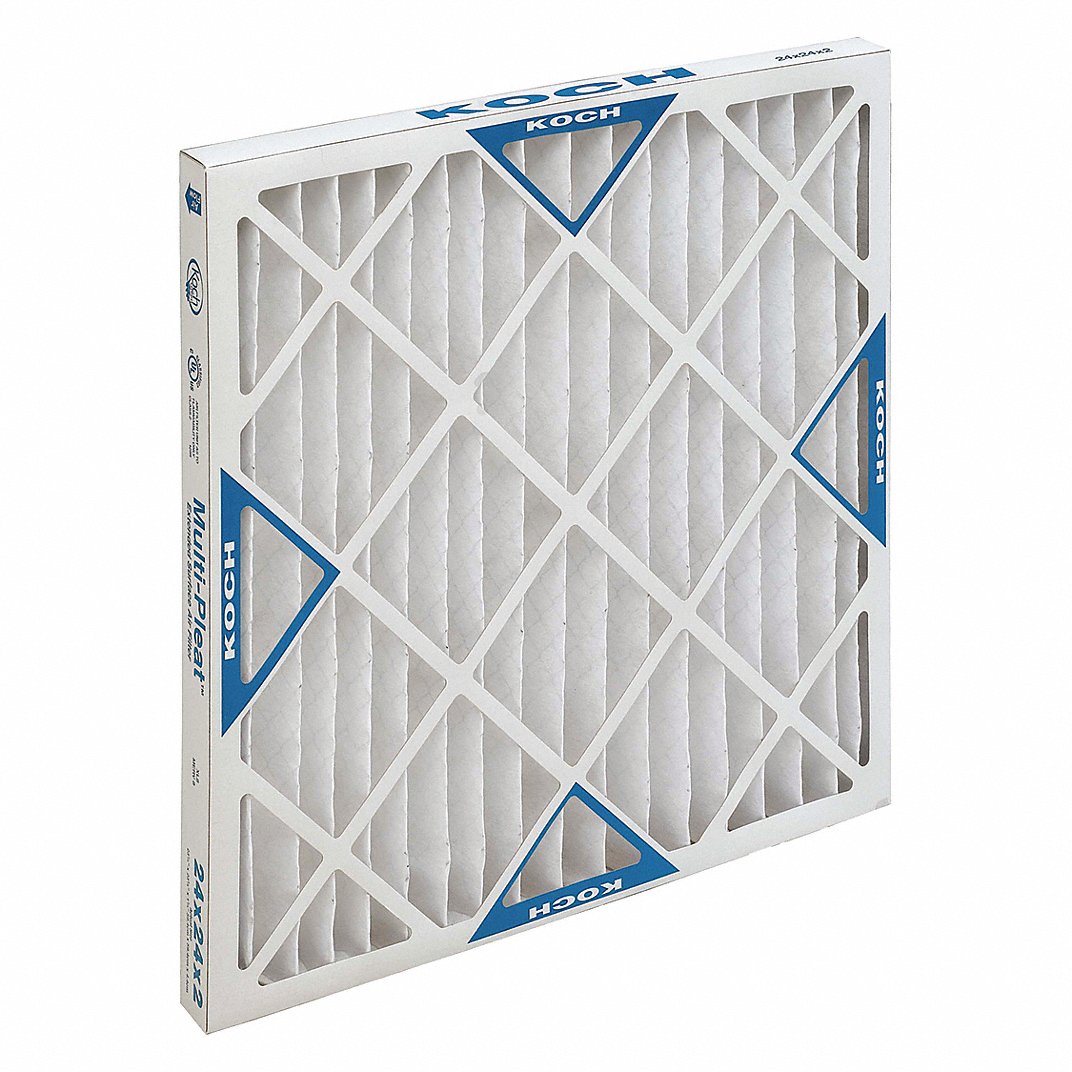

Koch Filter 102-700-019 Multi-Pleat XL8-SC Fiber MERV 8 Filter 20 x 20 x 2 in.

Product Description

The Koch Filter 102-700-019 Multi-Pleat XL8-SC is a medium-efficiency extended surface pleated panel filter. This filter provides higher initial efficiencies and overall superior performance than standard pleated filters. The mechanical MERV 8 media does not rely on electrostatic charge for efficiency and features a sturdy double-wall frame design.

• Upgrade from standard pleated filters
• Low-resistance to airflow
• High dust holding capacity

Product Highlights

The Koch Filter Multi-Pleat XL8-SC filter is suitable for hospitals, laboratories, pharmaceutical plants, and commercial office buildings.

Product Information

Standard Information

• Brand: KOCH FILTER
• Manufacturer Part Number: 102-700-019

Technical Specifications

• Actual Size: 19-1/2 in W x 19-1/2 in H x 1-3/4 in D
• Air Flow Capacity: 1400 cfm
• Depth: 2 in
• Filter Efficiency: 30 - 35%
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 20 in
• Item Name: Pleated Panel Filter
• MERV: 8
• Media Area: 8 sq-ft
• Media Type: Fiber
• Rated Velocity: 300 fpm
• Resistance: 0.27 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL8-SC
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 20 in
• Catalog Number: 102-700-019
• Selling Size: 20 x 20 x 2|in
• MPN: 102-700-019
• Make: KOCH FILTER CORPORATION
• ManufacturerSKU: 102700019
• Brand: KOCH FILTER
• ManufacturerName: KOCH FILTER CORPORATION
