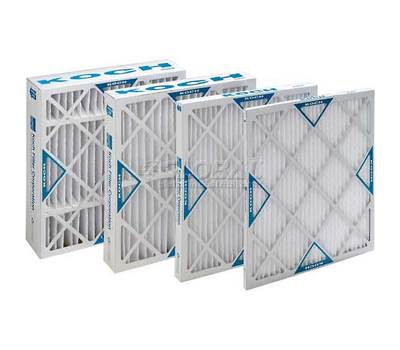

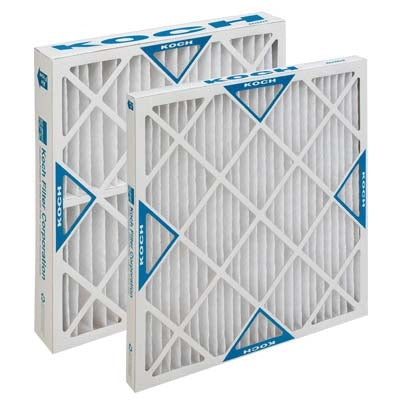

Koch Filter 102-700-017 Multi-Pleat XL8-SC Fiber MERV 8 Extended Surface Standard Capacity Pleated Panel Filter 16 x 25 x 2 in

Product Description

The Koch Filter 102-700-017 Multi-Pleat XL8-SC is a medium-efficiency extended surface pleated panel filter. This filter is designed for enhanced initial efficiency and better overall performance compared to standard pleated filters. Ideal for HVAC professionals and facilities management.

• Mechanical MERV 8 media does not rely on electrostatic charge for efficiency
• Low-resistance to airflow
• High dust holding capacity

Product Highlights

This MERV 8 pleated filter ensures optimal air quality in various settings such as hospitals, laboratories, and commercial buildings. The sturdy double-wall frame design enhances durability.

Product Information

Standard Information

• Brand: Koch Filter
• Manufacturer: Koch Filter Corporation
• Model Number: 102-700-017
• Sub Brand: Multi-Pleat XL8-SC

Technical Specifications

• Actual Size: 15-1/2 in W x 24-1/2 in H x 1-3/4 in D
• Air Flow Capacity: 1400 cfm
• Depth: 2 in
• Filter Efficiency: 25 - 30%
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 25 in
• Item Name: Pleated Panel Filter
• MERV: 8
• Media Area: 8.1 sq-ft
• Media Type: Fiber
• Rated Velocity: 300 fpm
• Resistance: 0.27 in-WG Initial, 1 in-WG Final
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 16 in
• Standards/Certifications: ASHRAE test standard 52.2-2007, UL listed
