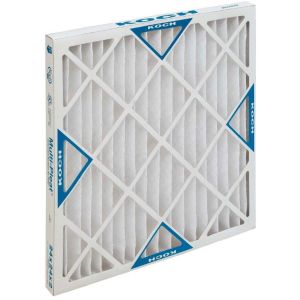

Koch Filter 102-700-015 Multi-Pleat XL8-SC Fiber MERV 8 Extended Surface Standard Capacity Pleated Panel Filter 15 x 20 x 2 in

Product Description

The KOCH FILTER 102-700-015 Multi-Pleat XL8-SC is a medium-efficiency extended surface pleated panel filter. This filter provides higher initial efficiencies and overall superior performance than standard pleated filters. The mechanical MERV 8 media is not reliant on electrostatic charge for efficiency and offers low resistance to airflow and high dust holding capacity. Suitable for hospitals, laboratories, and commercial buildings.

• Upgrade from standard pleated filters
• Mechanical MERV 8 media is not reliant on electrostatic charge for efficiency
• Low-resistance to airflow

Product Highlights

The Multi-Pleat XL8-SC filter provides MERV 8 filtration with a sturdy double-wall frame design and is suitable for various applications requiring improved indoor air quality.

Product Information

Standard Information

• Brand: KOCH FILTER
• Manufacturer Part Number: 102-700-015
• Country of Origin: USA

Technical Specifications

• Actual Size: 14-1/2 in W x 19-1/2 in H x 1-3/4 in D
• Air Flow Capacity: 1050 cfm
• Depth: 2 in
• Filter Efficiency: 30 - 35%
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 20 in
• Item Name: Pleated Panel Filter
• MERV: 8
• Media Area: 6 sq-ft
• Media Type: Fiber
• Rated Velocity: 300 fpm
• Resistance: 0.27 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL8-SC
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 15 in
• Filter Size: 15 x 20 x 2|in
• Selling Size: 15 x 20 x 2|in
• Specifications Met: ASHRAE 52.2-2012, cUL Listed, UL 900 Listed
• Air Filter Media Type: Synthetic
• Maximum Operating Temperature: +200|deg F
• Brand: Koch
• Item Number: 102-700-015
