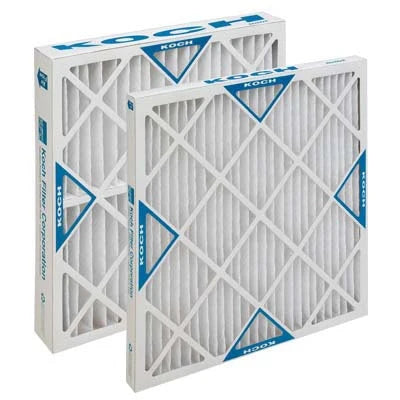

Koch Filter 102-700-004 Multi-Pleat XL8-SC Fiber MERV 8 Extended Surface Standard Capacity Pleated Panel Filter 14 x 25 x 1 in

Product Description

The Koch Filter 102-700-004 Multi-Pleat XL8-SC Fiber MERV 8 Extended Surface Standard Capacity Pleated Panel Filter 14 x 25 x 1 in is designed to enhance air quality in various environments. This filter provides excellent performance and higher initial efficiencies than standard filters.

• Upgrade from standard pleated filters
• Mechanical MERV 8 media not reliant on electrostatic charge
• Low resistance to airflow

Product Highlights

The Koch Filter 102-700-004 excels in providing reliable air filtration for hospitals, laboratories, pharmaceutical plants, and commercial office buildings. Featuring a MERV 8 rating, it ensures superior air quality by capturing fine particles.

Product Information

Standard Information

• Brand: Koch Filter
• Manufacturer: Koch Filter Corporation
• Part #: AF14251P40

Technical Specifications

• Actual Size: 13-1/2 in W x 24-1/2 in H x 3/4 in D
• Air Flow Capacity: 730 cfm
• Depth: 1 in
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 25 in
• Item Name: Pleated Panel Filter
• MERV: 8
• Media Area: 4.1 sq-ft
• Media Type: Fiber
• Rated Velocity: 300 fpm
• Resistance: 0.26 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL8-SC
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 14 in
