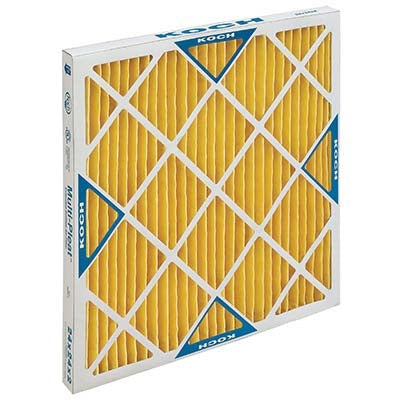

Koch Filter 102-499-030 Multi-Pleat XL11 Synthetic MERV 11 Extended Surface Standard Capacity Pleated Panel Filter

Product Description

The Koch Filter 102-499-030 is a high-performance pleated panel filter designed for medium-efficiency air filtration. This filter features a MERV 11 rating, making it suitable for various applications, including hospitals and commercial buildings.

• Multi-Pleat design for optimal airflow
• Dual-layered synthetic media
• Crafted for easy installation

Product Highlights

This filter offers improved initial efficiency and overall performance over standard options. It maintains lower pressure drops, enhancing airflow and dust holding capacity, essential for maintaining clean air quality in vital environments.

Product Information

Standard Information

• Brand: Koch Filter
• Manufacturer: Koch Filter Corporation

Technical Specifications

• Actual Size: 19-1/2 in W x 24-1/2 in H x 3-3/4 in D
• Air Flow Capacity: 1050 cfm
• Depth: 4 in
• Filter Efficiency: 45% Initial Dust Spot, 55 - 60% Average Dust Spot
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 25 in
• Item Name: Pleated Panel Filter
• MERV: 11
• Media Area: 20.1 sq-ft
• Media Type: Synthetic
• Rated Velocity: 300 fpm
• Resistance: 0.13 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL11
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 20 in
