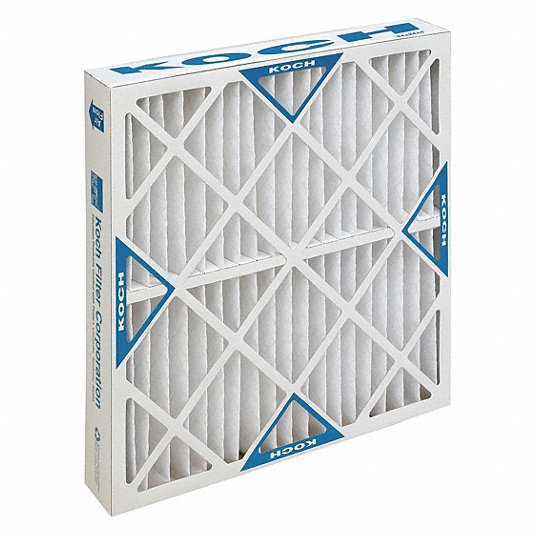

Koch Filter 102-499-028 Multi-Pleat XL11 Synthetic MERV 11 Extended Surface Standard Capacity Pleated Panel Filter 20 x 20 x 4 in

Product Description

The KOCH FILTER 102-499-028 Multi-Pleat XL11 is a medium-efficiency extended surface pleated panel filter. This synthetic MERV 11 filter is engineered to provide higher initial efficiencies and better overall performance than standard pleated filters. It features a temperature rating of 200 deg F and an air flow capacity of 840 cfm. Ideal for hospitals, laboratories, and commercial buildings.

• Upgrade from standard pleated filters
• Dual-layered filter media
• Low pressure drop

Product Highlights

Medium-efficiency extended surface pleated panel filter with high dust holding capacity. Suitable for hospitals, laboratories, pharmaceutical plants, and commercial office buildings.

Product Information

Standard Information

• Brand: KOCH FILTER
• Manufacturer Part Number: 102-499-028
• Country of Origin: USA

Technical Specifications

• Actual Size: 19-1/2 in W x 19-1/2 in H x 3-3/4 in D
• Air Flow Capacity: 840 cfm
• Depth: 4 in
• Filter Efficiency: 45% Initial Dust Spot, 55 - 60% Average Dust Spot
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 20 in
• Item Name: Pleated Panel Filter
• MERV: 11
• Media Area: 16.1 sq-ft
• Media Type: Synthetic
• Rated Velocity: 300 fpm
• Resistance: 0.13 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL11
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 20 in
• Applications: For hospitals, laboratories, pharmaceutical plants, commercial office buildings
• Standards/Certifications: ASHRAE test standard 52.2
• Manufacturer Part Number: 102-499-028
• Brand: KOCH
