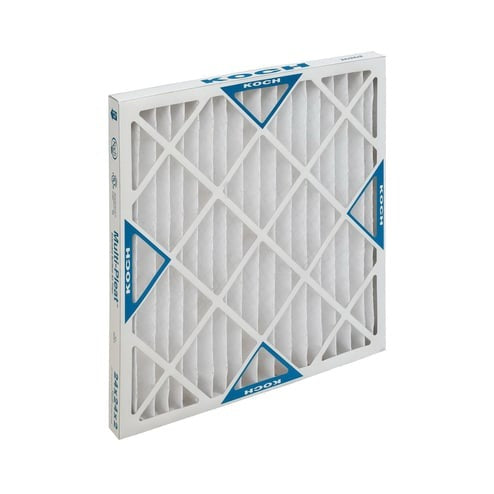

Koch Filter 102-042-199 Pleated Panel Filter Merv 8

Product Description

The KOCH FILTER 102-042-199 is a MERV 8 extended surface pleated panel filter designed for medium-efficiency air filtration in commercial and residential HVAC systems. Built on the Multi-Pleat XL8 SC platform, it features 100% synthetic media housed in a beverage board frame and measures 2 inches in depth. The filter carries both a MERV 8 and MERV-A 8 performance rating per ASHRAE Test Standard 52.2-2007, delivering 30 to 35% efficiency with an initial resistance range of 0.14 to 0.34 inches WG and a final resistance of 1 inch WG. Rated to 200 degrees F, it is suitable for demanding airstream conditions.

The 102-042-199 is well suited for a wide range of HVAC filtration applications including air handling units, rooftop units, and central forced-air systems in light commercial and residential settings. It is engineered as an upgrade over standard MERV 6 and MERV 7 pleated filters and disposable fiberglass media. The extended surface design increases media area for improved dust holding capacity and longer service intervals compared to standard-depth pleated panels. This filter is manufactured domestically.

Key Features

• MERV 8 and MERV-A 8 rated per ASHRAE 52.2-2007 for verified medium-efficiency performance
• 100% synthetic media provides high dust holding capacity and low pressure drop
• Initial resistance of 0.14 to 0.34 inches WG supports airflow efficiency across the service life
• Beverage board frame construction provides structural rigidity during installation and operation
• Rated to 200 degrees F for use in elevated-temperature airstream applications
• Extended surface pleat design delivers higher efficiency than standard single-pass pleated filters

Compatibility

Designed as an OEM-style replacement or upgrade for HVAC systems requiring a 2-inch depth MERV 8 pleated panel filter in standard filter-bank or slide-in frame applications.

Installation Notes

Installation should be performed by a qualified HVAC technician. Always shut down the air handling unit or furnace and isolate power before removing or installing filter media. Confirm the filter frame dimensions and airflow direction arrow alignment before seating the filter. Consult local mechanical codes and ASHRAE guidelines for recommended filter replacement intervals based on system load and environment.
