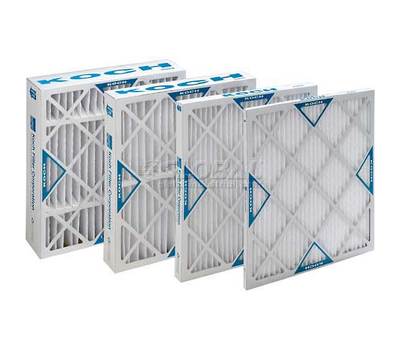

Koch Filter 102-042-009 Multi-Pleat 18 x 25 x 2 in. MERV 8 Synthetic Extended Surface Pleated Panel Air Filter

Product Description

The Koch Filter 102-042-009 Multi-Pleat is an 18 x 25 x 2 inches MERV 8 synthetic extended surface pleated panel air filter designed to enhance indoor air quality. Ideal for HVAC systems, this filter provides higher initial efficiencies and superior performance compared to standard pleated filters.

• Upgrade from standard pleated filters
• Mechanical MERV 8 media
• Low-resistance to airflow

Product Highlights

Suitable for hospitals, laboratories, pharmaceutical plants, and commercial office buildings, ensuring a higher quality of indoor air.

Product Information

Standard Information

• Brand: Koch Filter
• MPN: 102-042-009

Technical Specifications

• Depth: 1-3/4 in
• Width: 24-1/2 in
• Height: 17-1/2 in
• Weight: 1 lb
• Includes: Frame
• Frame Type: Moisture-Resistant Double Wall Die Cut Beverage Board
• Media Area: 9.1 sq ft
• Filter Size: 18 x 25 x 2 in
• MERV Rating: 8
• Air Flow Rate: 1960 CFM
• Catalog Number: 102-042-009
• Final Resistance: 1 in WG
• Maximum Velocity: 500 FPM
• Initial Resistance: 0.26 in WG
• Specifications Met: AS/NZS 1270:2002, CSA Certified
• Air Filter Media Type: Synthetic
• Maximum Operating Temperature: 200 deg F
