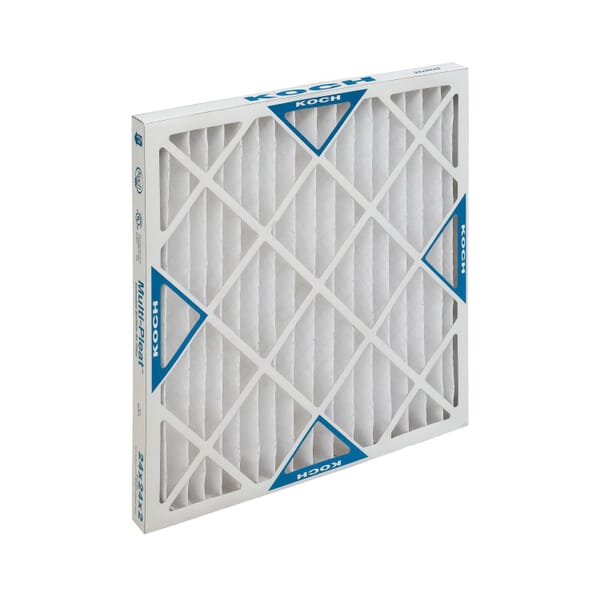

Koch Filter 102-041-018 Multi-Pleat 30 x 16 x 1 MERV 8 Std Capacity Pleated Filter

Product Description

The KOCH FILTER 102-041-018 is a Multi-Pleat extended surface pleated panel filter engineered for higher initial efficiencies and superior performance. This filter carries a MERV 8 performance rating per ASHRAE 52.2-2007. It is an excellent upgrade from disposable filters and standard MERV 6 and 7 rated pleated filters.

• Upgrade from standard pleated filters.
• Mechanical MERV 8 media is not reliant on electrostatic charge for efficiency.
• Low resistance to airflow and high dust holding capacity.

Product Highlights

The Multi-Pleat XL8 filter is suitable for hospitals, laboratories, pharmaceutical plants, and commercial office buildings.

Product Information

Standard Information

• Brand: KOCH FILTER
• Manufacturer Part Number: 102-041-018
• Country of Origin: US

Technical Specifications

• MPN: 102-041-018
• Brand: Koch Filter
• Actual Size: 15-1/2 in W x 29-1/2 in H x 3/4 in D
• Depth: 1 in
• Filter Efficiency: 30 - 35%
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 30 in
• Item Name: Pleated Panel Filter
• MERV: 8
• Media Type: Fiber
• Rated Velocity: 300 fpm
• Resistance: 0.26 in-WG Initial, 1 in-WG Final
• Sub Brand: Multi-Pleat XL8
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 16 in
• Includes: Frame
• Filter Size: 16 x 30 x 1|in
• Selling Size: 16 x 30 x 1|in
• Catalog Number: 102-041-018
• Final Resistance: 1|in WG
• Specifications Met: ASHRAE 52.2-2012, cUL Listed, UL 900
• Maximum Operating Temperature: +200|deg F
• Make: KOCH FILTER CORPORATION
• ManufacturerSKU: 102041018
• ManufacturerName: KOCH FILTER CORPORATION
• Series: Multi-Pleat XL8 SC
• Initial Resistance: 0.26 to 0.51 in WG
• Media Material: 100% Synthetic
• Country of Origin: US
• Domestic/Import: Domestic
