Product Description

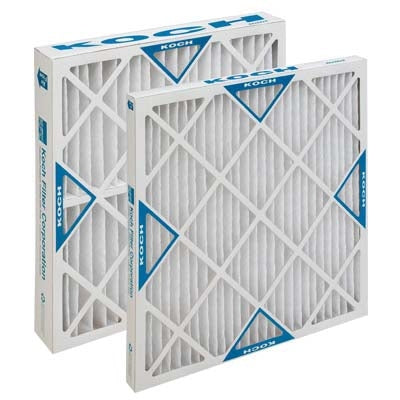

The Koch Filter 102-041-002 Multi-Pleat XL8 is an efficient air filter designed to perform better than standard pleated filters. With a mechanical MERV 8 rating, it offers higher initial efficiency and longer-lasting performance.
- Mechanical MERV 8 media
- Low resistance to airflow
- High dust holding capacity
Product Highlights
The Koch Filter Multi-Pleat XL8 provides efficient air filtration for various commercial and industrial settings. Its sturdy design and high dust holding capacity make it suitable for demanding applications.
Product Information
Standard Information
-
Brand: Koch Filter
-
MPN: 102-041-002
Technical Specifications
-
Actual Size: 11-1/2 in W x 19-1/2 in H x 3/4 in D
-
Depth: 1 in
-
Filter Efficiency: 30 - 35%
-
Frame Type: Double Wall, Moisture-Resistant Beverage Board
-
Height: 20 in
-
Item Name: Pleated Panel Filter
-
MERV: 8
-
Media Type: Fiber
-
Rated Velocity: 300 fpm
-
Resistance: 0.26 in-WG Initial, 1 in-WG Final
-
Sub Brand: Multi-Pleat XL8
-
Temperature Rating: 200 deg F
-
Type: Extended Surface, Standard Capacity
-
Width: 12 in
-
Applications: For hospitals, laboratories, pharmaceutical plants, commercial office buildings
-
Standards/Certifications: ASHRAE test standard 52.2-2007, UL listed
