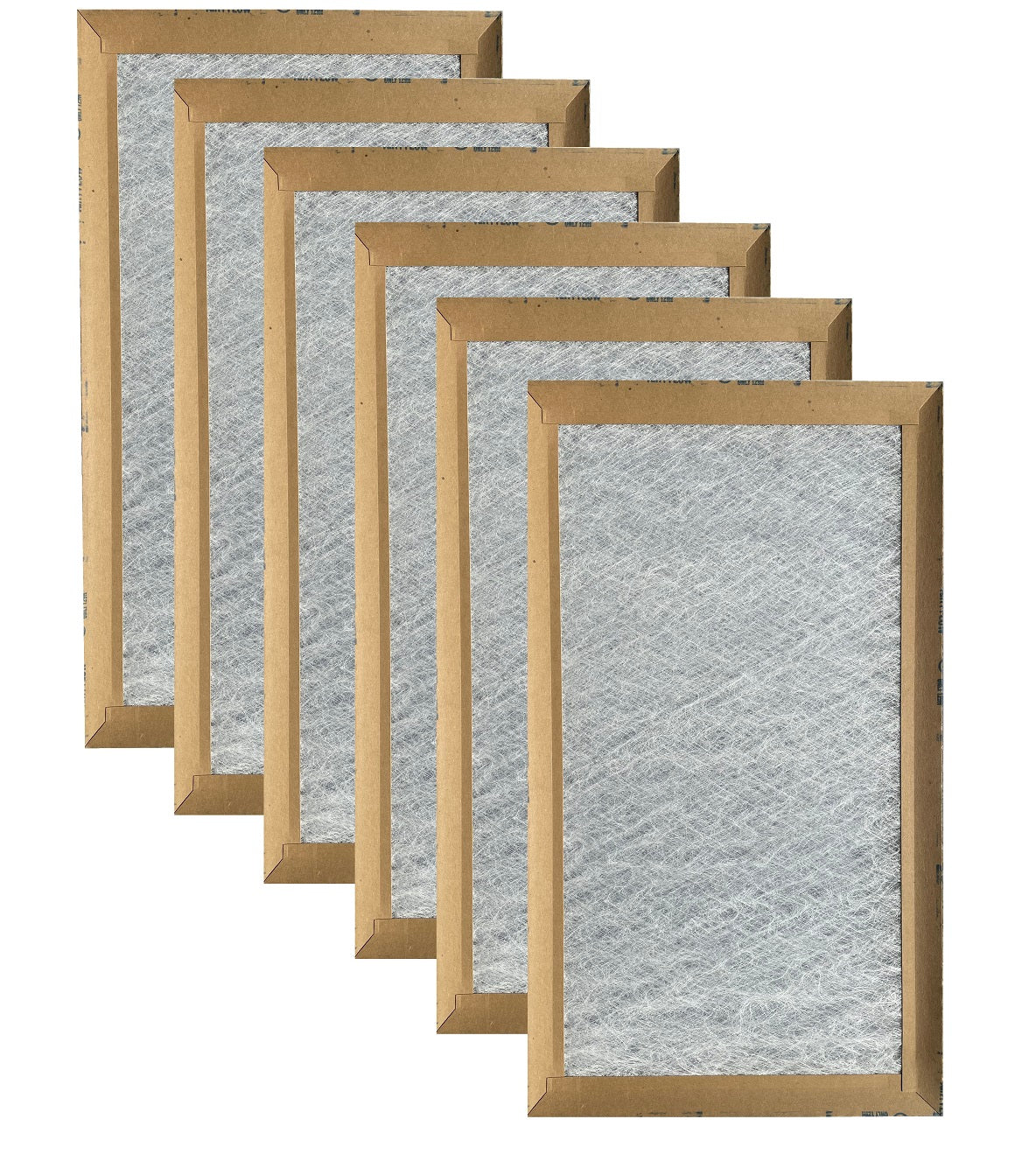

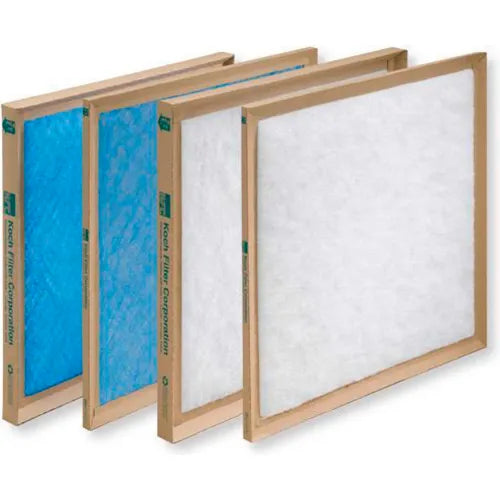

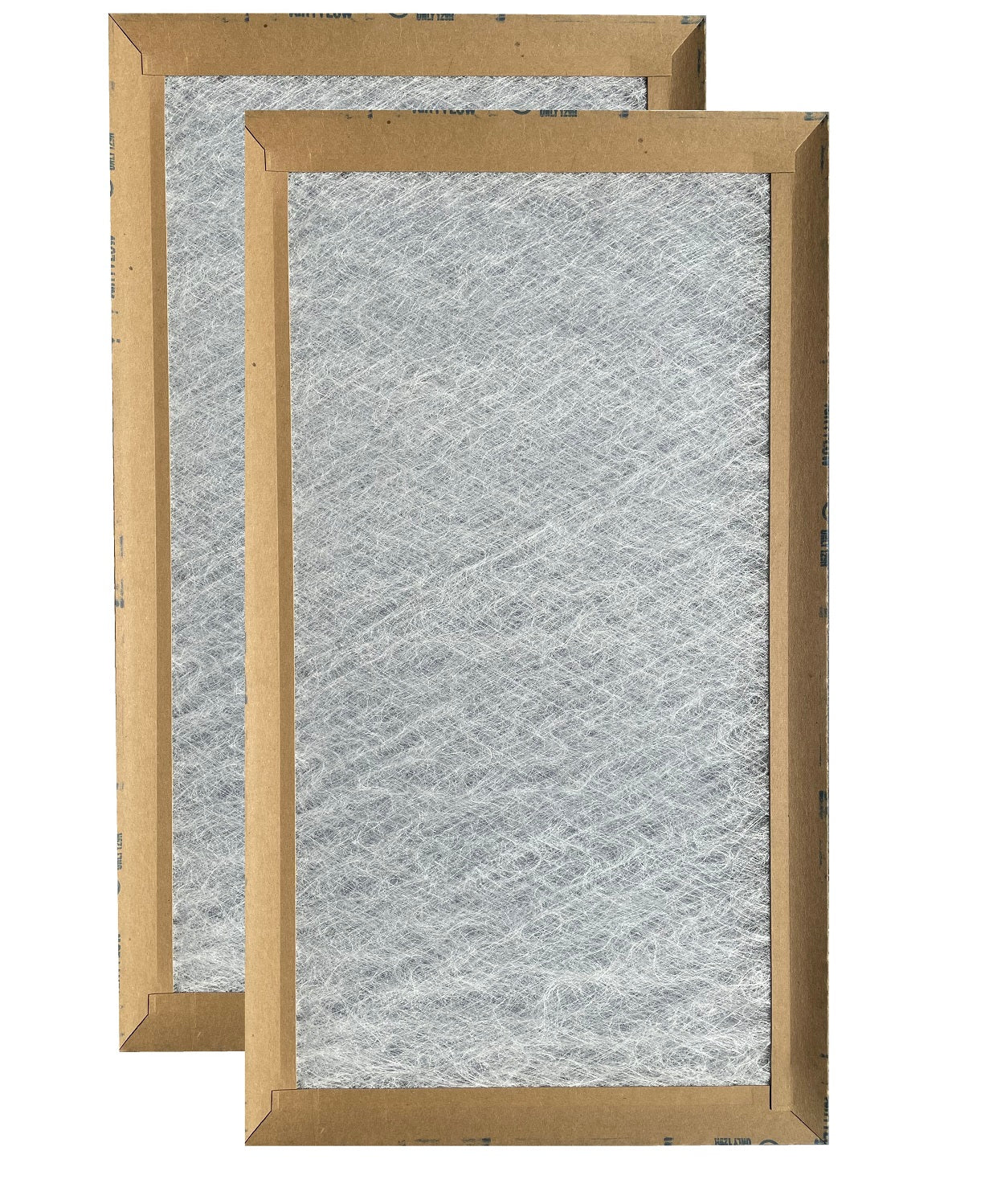

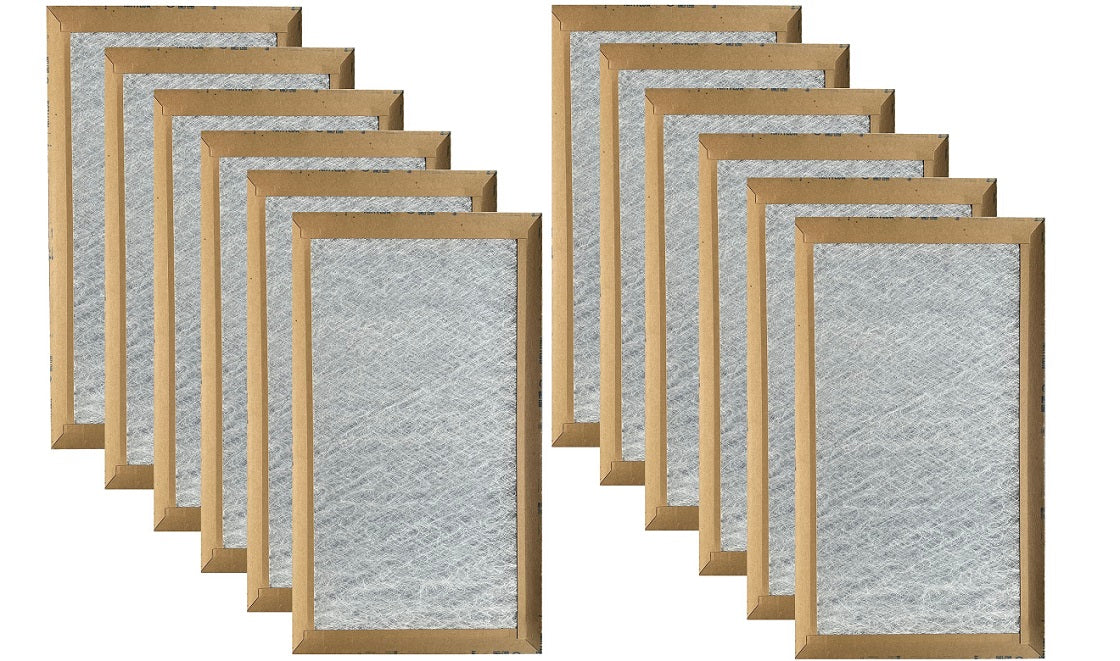

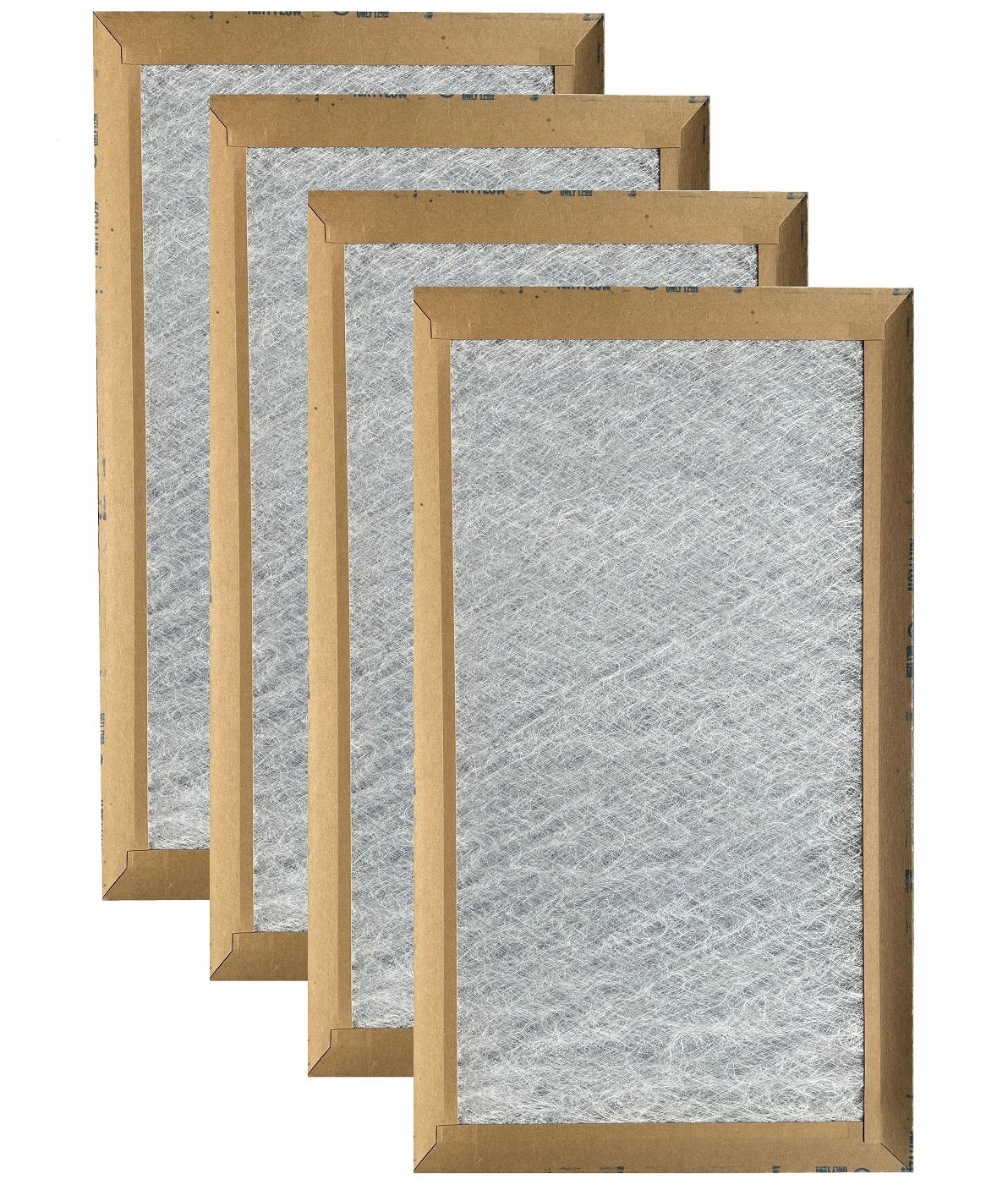

Koch 274-160-200 Disposable Fiberglass Filter 16 x 20 x 1 (Pack 12) Replacement 260-001-011

Product Description

Koch 274-160-200 is a disposable fiberglass panel air filter with a nominal size of 16 x 20 x 1 inches and MERV 5 rating. The filter uses progressive dual-density fiberglass media with non-migrating adhesive and a moisture-resistant one-piece craft board frame bonded with a thermoplastic sealant to eliminate air bypass. Average arrestance is 65�70% with an initial resistance of about 0.05 in WG at 300 fpm. Intended for light-to-medium duty commercial and industrial HVAC and furnace applications; sold in packs of 12.

• Progressive dual-density fiberglass media (coarse air entry, tighter air exit) with non-migrating adhesive for depth loading
• Moisture-resistant one-piece craft board frame with interlocking miter corners; thermoplastic sealant bonds media to frame to prevent air bypass
• MERV 5 rating; average arrestance 65�70%; initial resistance ~0.05 in WG at 300 fpm; nominal size 16 x 20 x 1 inches; pack quantity 12

Product Highlights

Disposable dual-density fiberglass panel filter, MERV 5, nominal 16 x 20 x 1 inches, pack of 12; suitable for light-to-medium duty commercial and industrial HVAC systems.

Product Information

Standard Information

• Brand: KOCH
• Manufacturer Part Number: 274-160-200
• Country of Origin: United States

Technical Specifications

• Brand: Koch
• Manufacturer Part Number: 274-160-200
• MPN: 274-160-200
• Nominal Size: 16 x 20 x 1 inches
• Actual Dimensions: 15.5 x 19.5 x 0.75 inches
• Media: Fiberglass
• Media Configuration: Dual-density (progressive density)
• Frame Material: Moisture-resistant craft board (one-piece, interlocking miter corners)
• Sealant: Thermoplastic sealant bonding media to frame
• MERV Rating: 5
• Average Arrestance: 65 - 70%
• Initial Resistance: 0.05 in WG at 300 fpm
• Rated Face Velocity: 300 fpm
• Applications: Light-to-medium duty commercial and industrial HVAC and furnace use
• Package Quantity: 12
• Replaces: 260-001-011
• Item Weight: 0.25 lb (per filter)
• Country of Manufacture: United States
