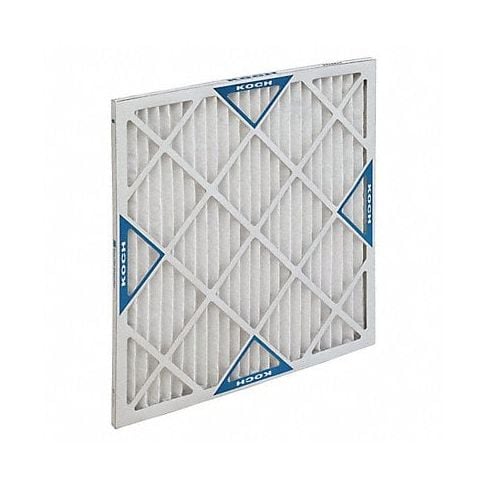

Koch 102700051 Multi-Pleat XL8 Air Filter 12 x12 x1

Product Description

The Koch Multi-Pleat XL8, MPN 102700051, is a medium efficiency extended surface pleated panel filter. It provides higher initial efficiencies and overall superior performance than standard pleated filters. The Multi-Pleat XL8 carries a MERV 8 efficiency rating in accordance with ASHRAE test standard 52.two 2017. Designed for use in hospitals, laboratories, pharmaceutical plants, and commercial office buildings.

• Upgrade from standard pleated filters
• Mechanical MERV 8 3 8 media is not reliant on electrostatic charge for efficiency
• Low resistance to airflow

Product Highlights

This pleated air filter captures airborne contaminants and improves air quality in HVAC systems. It prevents contaminants from building up in equipment.

Product Information

Standard Information

• Brand: KOCH
• Manufacturer Part Number: 102700051
• Country of Origin: US

Technical Specifications

• Air Flow Capacity: 300 cfm
• Depth: 1 in
• Filter Type: Air
• Final Resistance: 1 in-WG
• Frame Material: Beverage Board
• Height: 12 in
• Initial Resistance: 0.14 in-WG
• MERV: 8
• Media Material: 100% Synthetic
• Pleats per Linear Feet: 13
• Rated Velocity: 300 fpm
• Temperature Rating: 200 deg F
• Width: 12 in
• MPN: 102700051
• Number in Pack: 1
• Type: Pleated
• Manufacturer: Koch
