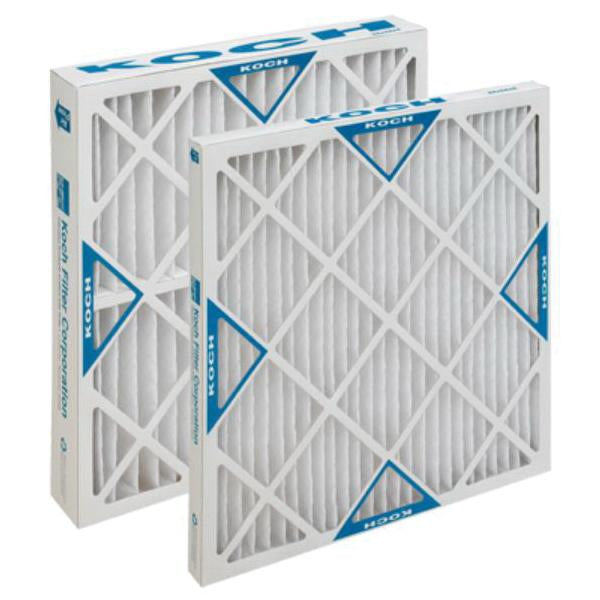

Koch 102700012 fil p12242-merv8 (12 x 24 x 2)

Product Description

The Koch 102700012 FIL P12242-MERV8 is a medium efficiency extended surface pleated panel filter. The Multi-Pleat™ XL8 provides higher initial efficiencies and overall superior performance than standard pleated filters. It carries a MERV 8 efficiency in accordance with ASHRAE test standard 52.two 2017. Designed for applications such as hospitals, commercial office buildings and systems requiring a higher degree of indoor air quality.

• Upgrade from standard pleated filters
• Mechanical MERV 8 3 8 media is not reliant on electrostatic charge for efficiency
• Low resistance to airflow

Product Highlights

This Koch air filter provides MERV 8 filtration for improved indoor air quality. Features a sturdy, moisture-resistant beverage board frame and high-dust holding capacity.

Product Information

Standard Information

• Brand: KOCH
• Manufacturer Part Number: 102700012

Technical Specifications

• Air Flow Capacity: 1250 cfm
• Depth: 2 in
• Filter Type: Air
• Final Resistance: 1 in-WG
• Frame Material: Beverage Board
• Height: 24 in
• Initial Resistance: 0.23 in-WG
• MERV: 8
• Media Material: 100% Synthetic
• Pleats per Linear Feet: 10
• Rated Velocity: 500 fpm
• Temperature Rating: 200 deg F
• Width: 12 in
