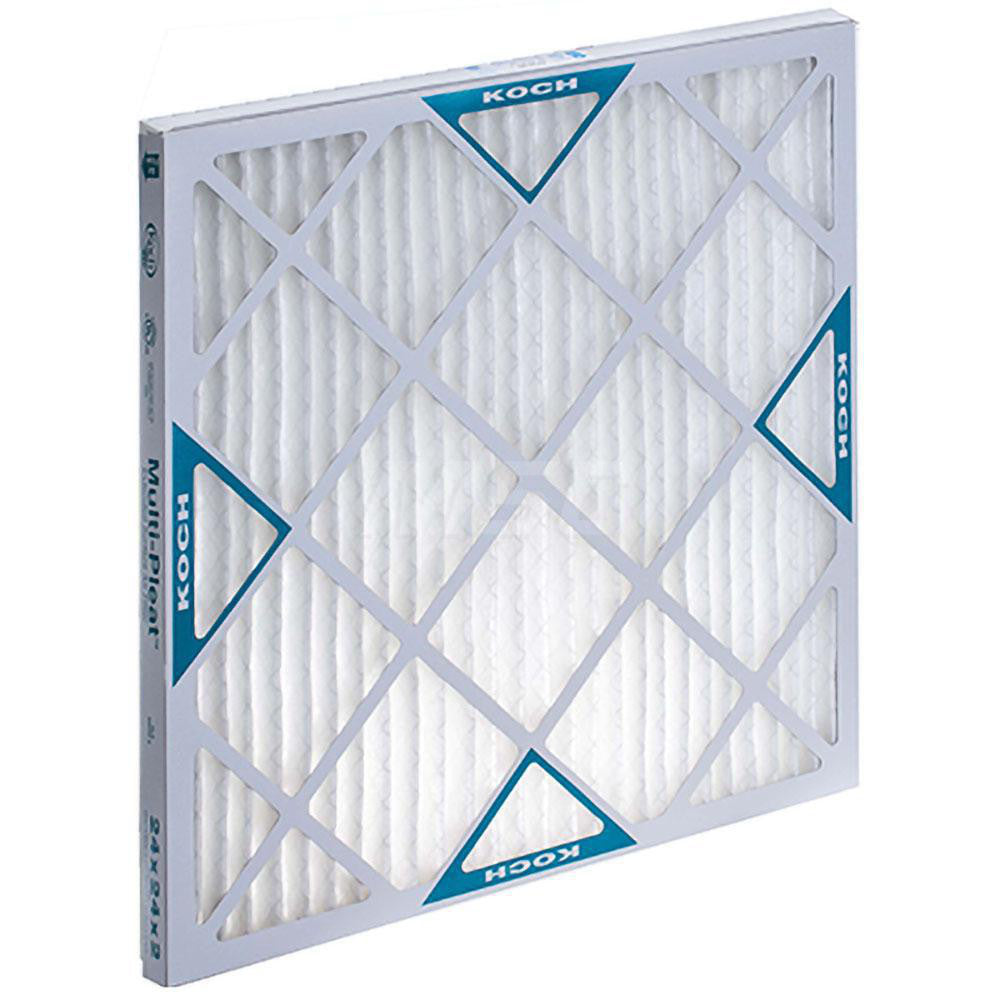

Koch 102-714-031 24x24x4 High Capacity Pleated Air Filter, MERV 13

Product Description

The KOCH 102-714-031 is a high capacity pleated air filter with a MERV 13 rating and nominal filter size of 24x24x4. This extended surface pleated panel filter is engineered to provide higher initial efficiencies than standard pleated filters. It is suitable for use in hospitals, laboratories, pharmaceutical plants, and commercial office buildings. Meets ASHRAE Test Standard 52.2-2012.

• MERV 13 performance rating in accordance with ASHRAE Test Standard 52.2-2012
• Earns LEED points
• Reduces energy cost

Product Highlights

High capacity pleated air filter with MERV 13 rating. Designed for high efficiency and improved indoor air quality. Ideal for commercial and industrial applications.

Product Information

Standard Information

• Brand: KOCH
• Manufacturer Part Number: 102-714-031
• Country of Origin: United States

Technical Specifications

• Item: High Capacity Pleated Air Filter
• MERV: 13
• Width: 3-3/4"
• Height: 23.38"
• Length: 23.38"
• Standards: ASHRAE Test Standard 52.2-2012
• Actual Height: 23.38"
• Nominal Depth: 4"
• Nominal Width: 24"
• Nominal Height: 24"
• Nominal Filter Size: 24x24x4
• Air Filter Media Type: Synthetic Fiber
• Country of Origin (subject to change): United States
• Brand: Koch Filter
• Application: Industrial, Pharmaceutical, Clean Room, Hospital, Educational, Commercial
• Item Type: Multi-Pleat Green13
• Airflow Capacity (FPM): 500
• Material: Moisture Resistant Beverage-Board Frame
• Size: 24x24x4
• Rating: MERV 13
• Item Number: 102-714-031
• Exact Size: 23-3/8x23-3/8x3-3/4
• Filter Type: Wire-Backed Pleated
• Media Material: Synthetic
• Frame Material: Beverage Board
• Air Flow: 2000 CFM
• Maximum Velocity: 500
• Particle Capture Efficiency (%): 80-85
• Nominal Depth (Inch): 4
• Nominal Width (Inch): 24
• Nominal Height (Inch): 24
• Initial Resistance: 0.27 in wg
• Integrated Frame: Yes
• Actual Depth (Inch): 3-3/4
• Actual Width (Inch): 23-3/8
• For Use With: Any Unit
• Final Resistance at FPM (Inches w.g.): 1
• Capacity: High
• Maximum Temperature (F) ( - 0 Decimals): 200
• UNSPSC Code: 40161505
• Actual Width: 23.38 in
