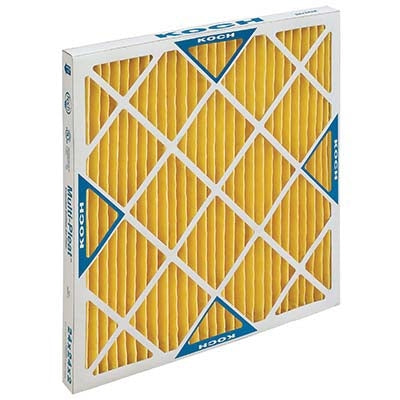

Koch 102-094-005 Multi-Pleat XL11 Standard Capacity Pleated Filter MERV 11 16 x 24 x 4

Product Description

The Koch Filter 102-094-005 is a pleated panel filter designed for HVAC systems. It features a MERV 11 rating that indicates medium efficiency, supporting air quality in various facilities.

• 2-layered synthetic filter media
• Recommended for hospitals, laboratories, and commercial buildings
• Low pressure drop for energy savings

Product Highlights

This filter provides superior dust holding capacity and is built for extended surface applications.

Product Information

Standard Information

• Brand: Koch Filter
• Type: Extended Surface, Standard Capacity

Technical Specifications

• Actual Size: fifteen and a half inches wide x twenty-three and thirty-eight inches high x three and three-quarter inches deep
• MERV Rating: 11
• Media Type: Synthetic
• Rated Velocity: 300 fpm
• Temperature Rating: 200 degrees Fahrenheit
• Resistance: 0.13 in-WG Initial, 1 in-WG Final
• Applications: Suitable for hospitals, laboratories, pharmaceutical plants, and commercial office buildings
• Standards/Certifications: ASHRAE test standard 52.2
