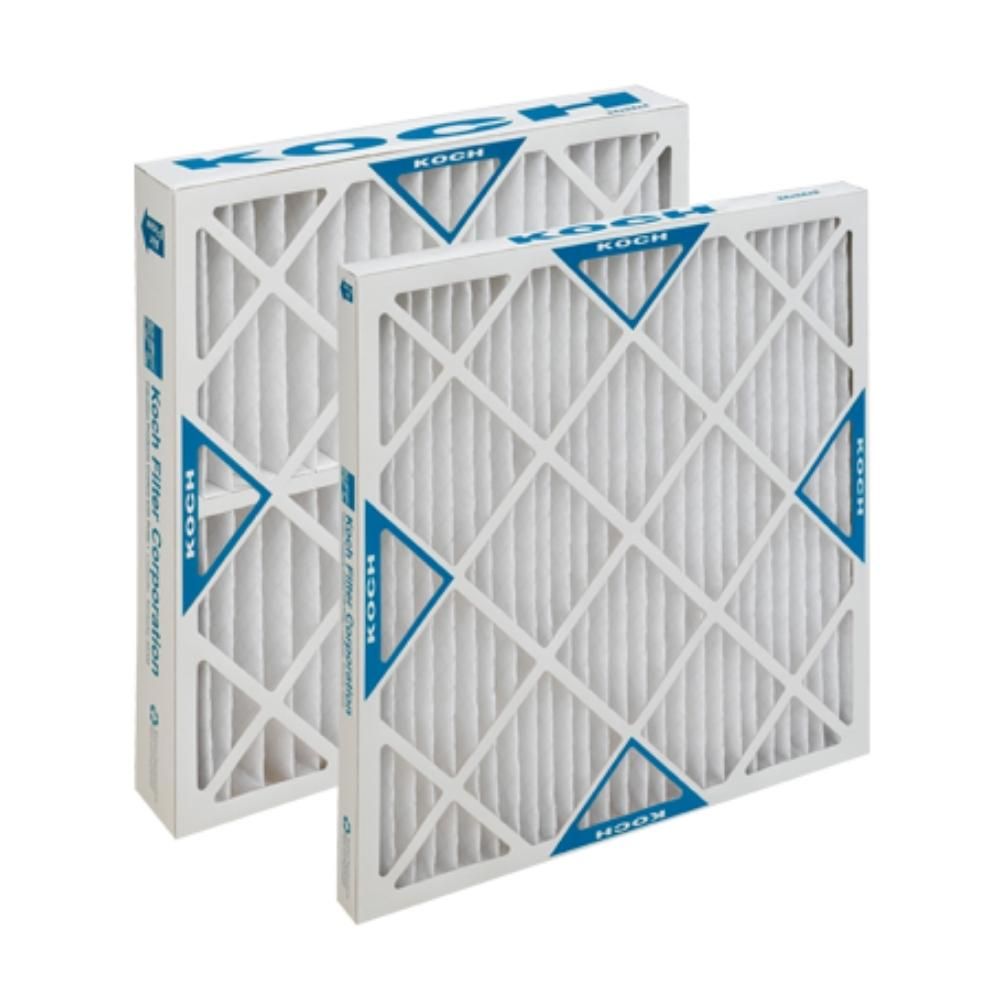

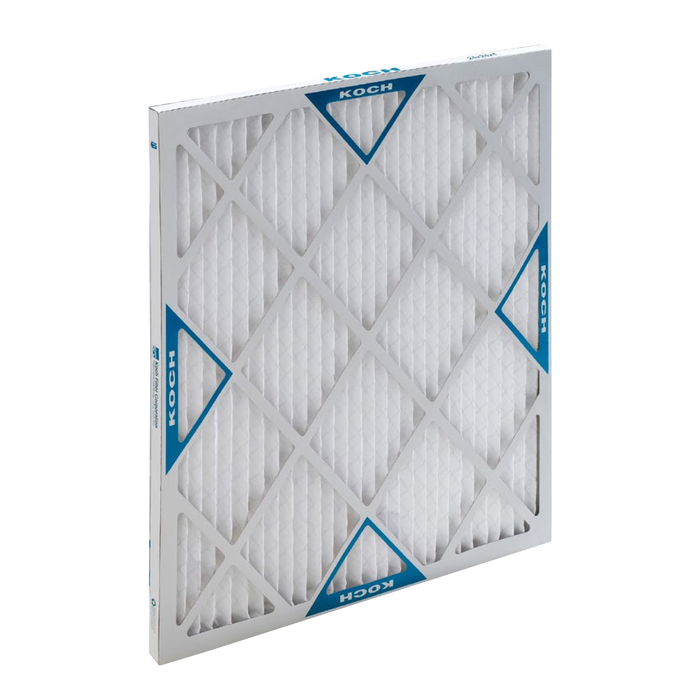

KOCH 102-042-039 Multi-Pleat XL8 Pleated Panel Filter 200 deg F 14x30x2

Product Description

The KOCH Multi-Pleat XL8 Pleated Panel Filter, MPN 102-042-039, is built for air quality systems needing enhanced filtration. It is made with durable mechanical media for effective air cleaning.

• MERV 8 efficiency rating.
• Low resistance to airflow for energy savings.
• Sturdy double-wall frame enhances durability.

Product Highlights

This filter is ideal for hospitals, laboratories, and pharmaceutical plants, ensuring a higher degree of clean air.

Product Information

Standard Information

• Brand: KOCH
• MPN: 102-042-039

Technical Specifications

• Series: XL8
• Width: 14 inches
• Height: 30 inches
• Depth: 2 inches
• Nominal Size: 14x30x2
• Actual Size: 13-1/2x29-1/2x1-3/4
• Media Material: Fiber
• Frame: Moisture-resistant beverage board frame
• Support Grid: Expanded galvanized steel grid provides pleat stability
• MERV: 8
• Temperature Rating: 200 degrees F
• Application: Hospitals, Laboratories, Pharmaceutical Plants, Commercial Office Buildings
