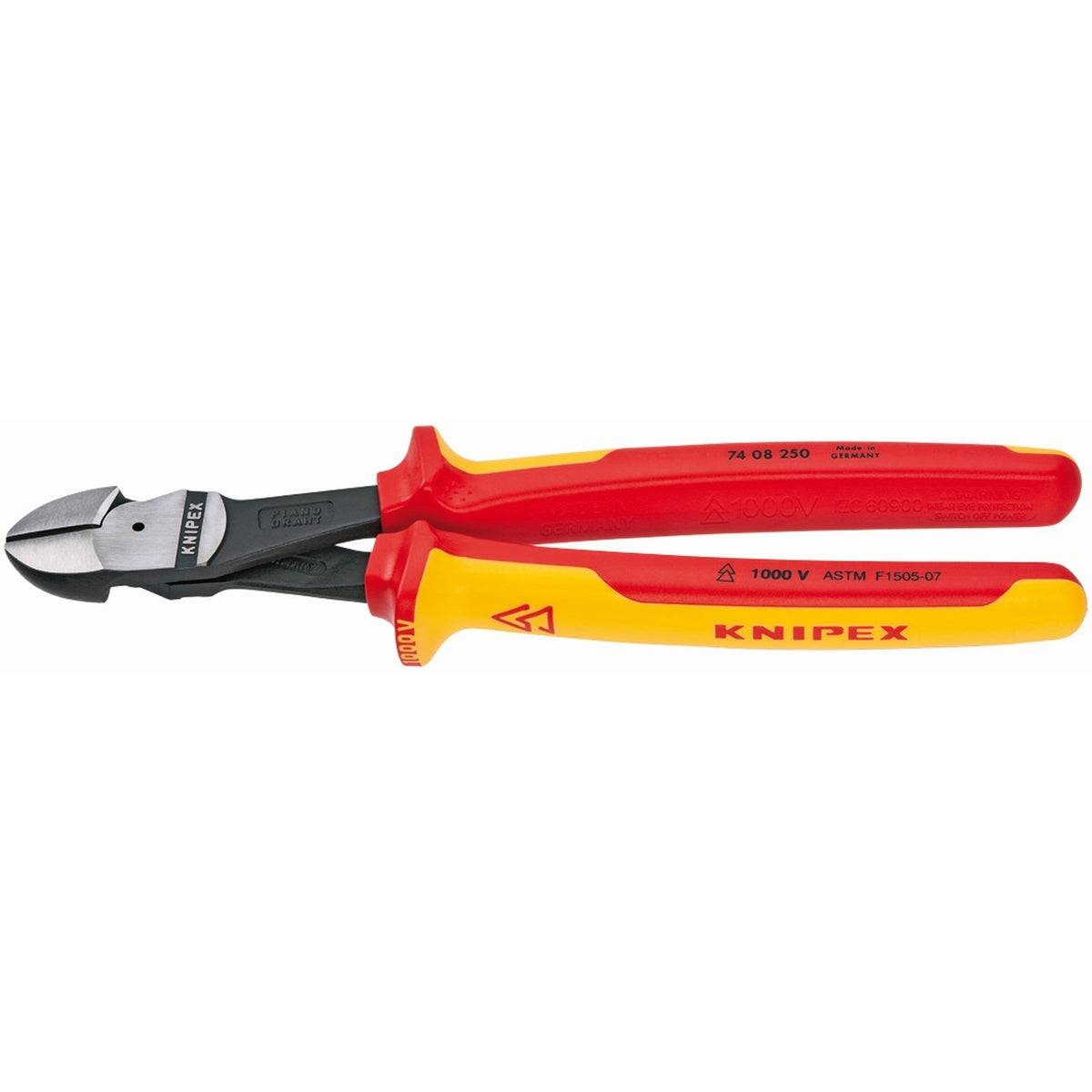

Knipex 74 08 250 SBA High Leverage Diagonal Cutters-1000V Insulated, 10 in., Multi-Component, ASTM

Product Description

The KNIPEX 74 08 250 SBA high leverage diagonal cutters require 20% less effort compared to conventional diagonal cutters of the same length. Designed for very tough, continuous use, these 10" diagonal cutters feature 1000V multi-component grips and are ASTM F1505-tested. Precision cutting edges are induction hardened to approximately 64 HRC and can cut several types of wire including piano wire.

• 20% less effort required compared to conventional diagonal cutters of the same length
• Forged-on axle for heavy-duty work
• 1000V multi-component grips, ASTM F1505-tested

Product Highlights

High cutting performance with minimum effort. Suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm². Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.

Product Information

Standard Information

• Brand: KNIPEX
• Manufacturer Part Number: 74 08 250 SBA
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 74 08 250 SBA
• Manufacturer: KNIPEX Tools
• Brand: KNIPEX
• Country of Origin: Germany
• Finish: Polished
• Material: Chrome vanadium heavy-duty steel, forged, oil-hardened
• UPC: 843221001216
• GTIN: 00843221001216
• Item Type: Diagonal Cutters > High Leverage Diagonal Cutters
• Length: 10
• Length UOM: Inch
• Width: 2.35
• Width UOM: Inch
• Height: 1.2
• Height UOM: Inch
• Nominal Size: 10
• Cut: Bevel
• Item: High Leverage Diagonal Cutting Plier
• Series: 74
• Capacity: Medium Hard Wire: 3/16" dia.; Hard Wire: 9/64" dia.; Piano Wire: 1/8" dia.
• ESD Safe: No
• ESD-Safe: No
• Features: High Cutting Performance; Precision Cutting Edges; Forged, Manifold Oil-Hardened; Forged-On Joint Axle
• Jaw Bend: 0 Degrees
• Insulated: Yes
• Jaw Width: 1 1/16 in
• Nose Type: Oval
• Standards: ASTM F-1505-01, IEC 60900
• Grip Style: Deluxe Cushion
• Jaw Length: 7/8 in
• Nose Shape: Oval
• Plier Item: Diagonal Cutting Pliers
• Plier Type: Diagonal Cutting Pliers
• Steel Type: Chrome Vanadium Steel
• Application: Wire Cuts Up to 64 HRC
• Cut Profile: Standard
• Cutter Type: Diagonal Cutting Pliers
• Handle Type: Ergonomic
• Nonsparking: No
• Handle Style: Standard
• Non-Sparking: No
• Tether Ready: No
• Tether Style: Tether Capable
• Cutter Length: 7/8 in
• High Leverage: Yes
• Spring Return: No
• Wire Stripper: No
• Blade Material: Chrome Vanadium Steel
• Cutting Action: Bevel
• Overall Length: 10 in
• Plier Material: Steel
• Tether Capable: Tether Capable
• Voltage Rating: 1000V
• Handle Material: Ergonomic
• Jaw Opening Type: Manual
• Surface Hardness: 64 HRC
• Head Offset Angle: Straight
• For Wire/Cable Type: Hard Wire, Medium-Hard Wire, Music Wire
• Maximum Jaw Opening: 1/8 in
• Plier Product Group: Pliers
• Overall Length Range: 9 - 11 in
• Insulated / Uninsulated: Insulated
• Additional Tool Functions: Wire Cutter
• Cutting Capacity/Material: 1/8 in Piano, 3/16 in Medium Hard Wire, 9/64 in Hard
• Maximum Wire Cutting Diameter: 0.1 in
• For Maximum Diameter Hard Steel: 1/8 in
